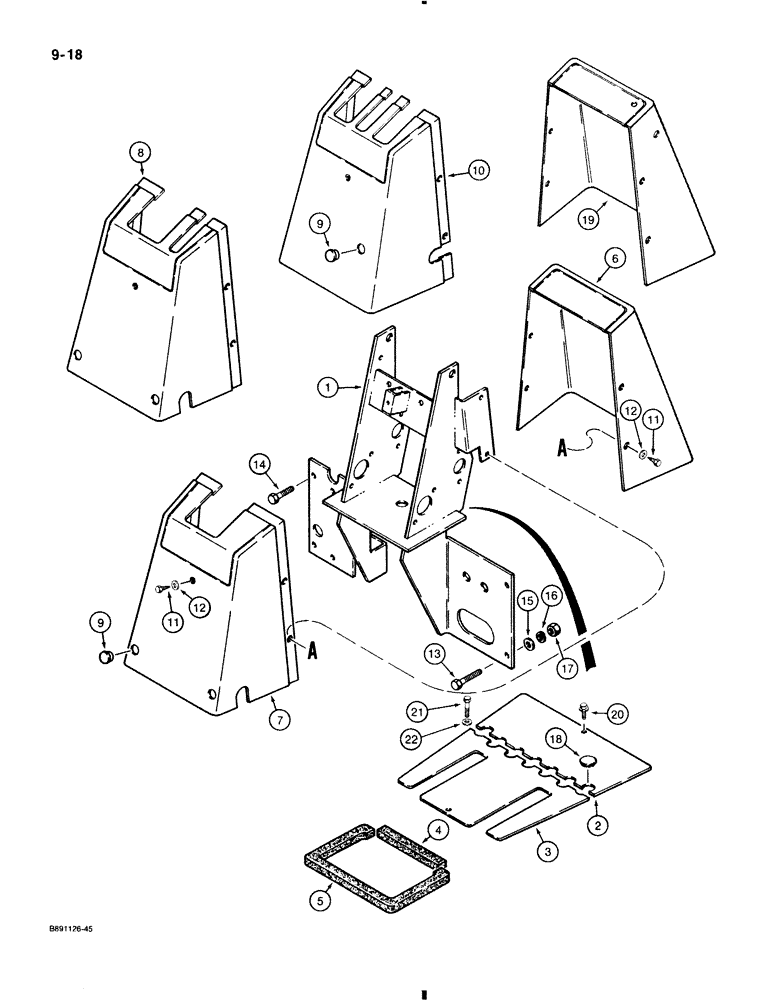

Запчасти Case 580K (9-018) - BACKHOE CONTROL TOWER, USED ON MODELS WITHOUT TILT BACKHOE CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D135567

SUPPORT

backhoe control and valve mounting

1шт.

2

D140101

PLATE

floor, backhoe control tower, rear

1шт.

3

D140100

PLATE

floor, backhoe control tower, front

1шт.

4

D137902

GASKET

gasket, 7", 178 mm long

1шт.

5

D133491

GASKET

gasket, backhoe control floor plate

1шт.

6

D134085

COVER

console, rear, used on all models, except models with hydraulic boom lock, see Ref. 19

1шт.

7

D134086

COVER

console, front, used on models with foot swing without extendable dipper, for models with auxiliary hydraulics for optional rear hydraulic attachments order D134087 cover

1шт.

8

D134087

COVER

console, front, used on models with foot swing with extendable dipper or models with auxiliary hydraulics for optional rear hydraulic attachments with or without extendable dipper

1шт.

9

353-411

PLUG,Dome, 1.000" hole, Nylon

If used Dome, 1.000" hole, Nylon

1-2шт.

10

D134088

CONSOLE

COVER console, front, used on models with hand swing with or without extendable dipper

1шт.

11

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self tapping, 1/4" NC x 3/4"

5шт.

12

195-140

WASHER,1/4"

flat, black, 1/4"

5шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

15

495-11053

WASHER,1/2", SAE

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

D140267

PLUG,30.16mm OD

button, tan, 1-3/16", 30 mm diameter

1шт.

19

D141999

COVER

console, rear, used on models with hydraulic boom lock

1шт.

20

D141589

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

BOLT hex washer head, self tapping, 5/16" NC x 3/4"

2шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" - 18 NC x 1"

2шт.

22

495-81001

WASHER,5/16"

flat, plated, 5/16"

2шт.
