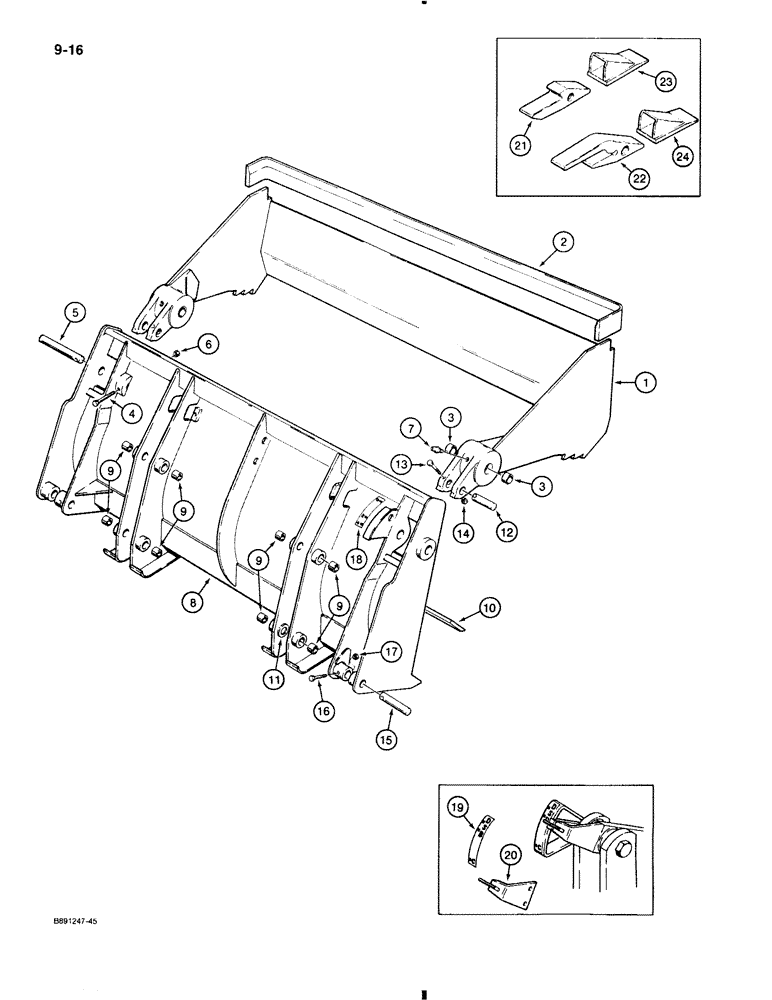

Запчасти Case 580K (9-016) - CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

D102070

BUCKET ASSEMBLY, clam, 82", 2083 mm wide, machinery item, order from Machinery Price List, Includes Ref. 4-7, 12-17, and P/N's D133816, D133817

1шт.

D133816

SHELL

CLAM ASSEMBLY bucket, Includes Ref. 1-3

1шт.

Compaction Plate for this part is P/N D75630.

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM bucket

1шт.

2

D76258

EDGE, CUTTING,4” W x 80.5” L x 6” H x 3/4” Thk

EDGE cutting, bucket

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

clam pivot

4шт.

4

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

6

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

D133817

BLADE

ASSEMBLY, clam bucket, Includes Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE bucket

1шт.

9

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

10

D75636

EDGE, CUTTING

EDGE cutting, blade

1шт.

11

D135602

WASHER

flat, hardened, special, welded to lower inner bucket ears, 1-5/8" ID x 2-3/8" OD

2шт.

12

D51392

PIN,31.72mm OD x 101.6mm L

cylinder mounting, upper

2шт.

13

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

14

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

15

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

16

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

17

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

18

321-1708

DECAL

0 - 2 - 4, clam bucket opening indicator

1шт.

19

321-1707

DECAL

clam bucket position

1шт.

20

D123157

SUPPORT

POINTER bucket position, bolts to clam bucket link, see Figure 9-10 for link and mounting hardware

1шт.

21

D26368

SUPPORT

SHANK tooth, original equipment, optional bucket teeth

10шт.

22

D58499

SUPPORT

SHANK tooth, heavy duty service option, optional bucket teeth

10шт.

22

D58499

SUPPORT

SHANK tooth, heavy duty service option, optional bucket teeth

10шт.

23

D27748

TOOTH

POINT tooth, original equipment, optional bucket teeth

10шт.

24

D36720

TOOTH

POINT tooth, heavy duty service option, optional bucket teeth

10шт.
