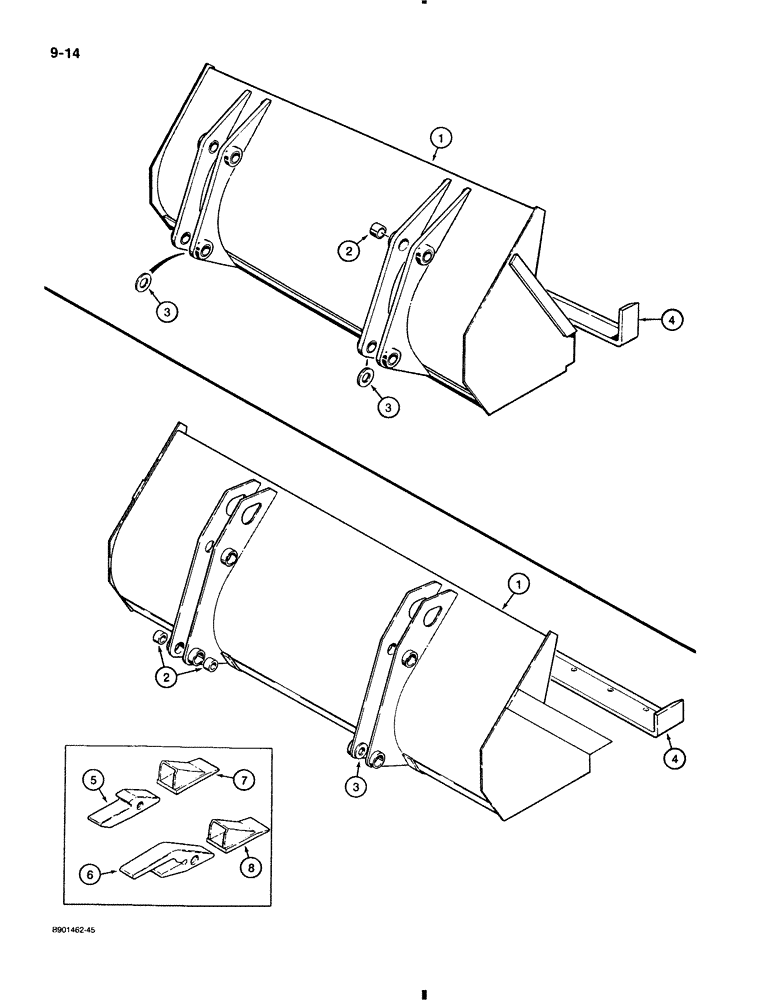

Запчасти Case 580K (9-014) - LOADER BUCKET, SHORT LIP BUCKET (09) - CHASSIS/ATTACHMENTS

D134142

BUCKET

ASSEMBLY, loader, without teeth, 90", 2285 mm wide, machinery item, order from Machinery Price List, Includes Ref. 1-4

1шт.

Can order 90" bolt-on edge, P/N D147323 has 15 holes to accept 3/4" plow bolts P/N 118-503 and nuts P/N 429-101.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

3

D135602

WASHER

hardened, special, 1-5/8" ID x 2-3/8" OD, used as a spacer, welded to inner ear at lower pin hole only

2шт.

4

D65287

EDGE, CUTTING

EDGE cutting, front, 90", 2285 mm bucket

1шт.

Cutting edge in both illustrations is the weld on type, holes showing in bottom illustration are holes drilled to accept bolt-on edge (ordered separately). (see below for optional cutting edges).

1шт.

1

D146364

BUCKET

ASSEMBLY, loader, without teeth, long lip bucket, 82", 2083 mm wide, machinery item, order from Machinery Price List, Includes Ref. 2-4

1шт.

Can order 82" bolt-on edge P/N D145681, 82" long, 8" wide, 3/4" thick with 10 holes countersunk to accept 3/4" plow bolts P/N 118-503 and nuts P/N 429-1012.

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear, long lip

8шт.

3

D135602

WASHER

flat, hardened, special, long lip, 1-5/8" ID x 2-3/8" OD, welded to lower inner bucket ear

2шт.

4

D145680

EDGE, CUTTING

EDGE cutting, front, long lip, 82", 2083 mm bucket

1шт.

5

D26368

SUPPORT

SHANK tooth, original equipment, bucket teeth

10-11шт.

6

D58499

SUPPORT

SHANK tooth, heavy duty service option, bucket teeth

10-11шт.

7

D27748

TOOTH

POINT tooth, original equipment, bucket teeth

10-11шт.

8

D36720

TOOTH

POINT tooth, heavy duty service option, bucket teeth

10-11шт.
