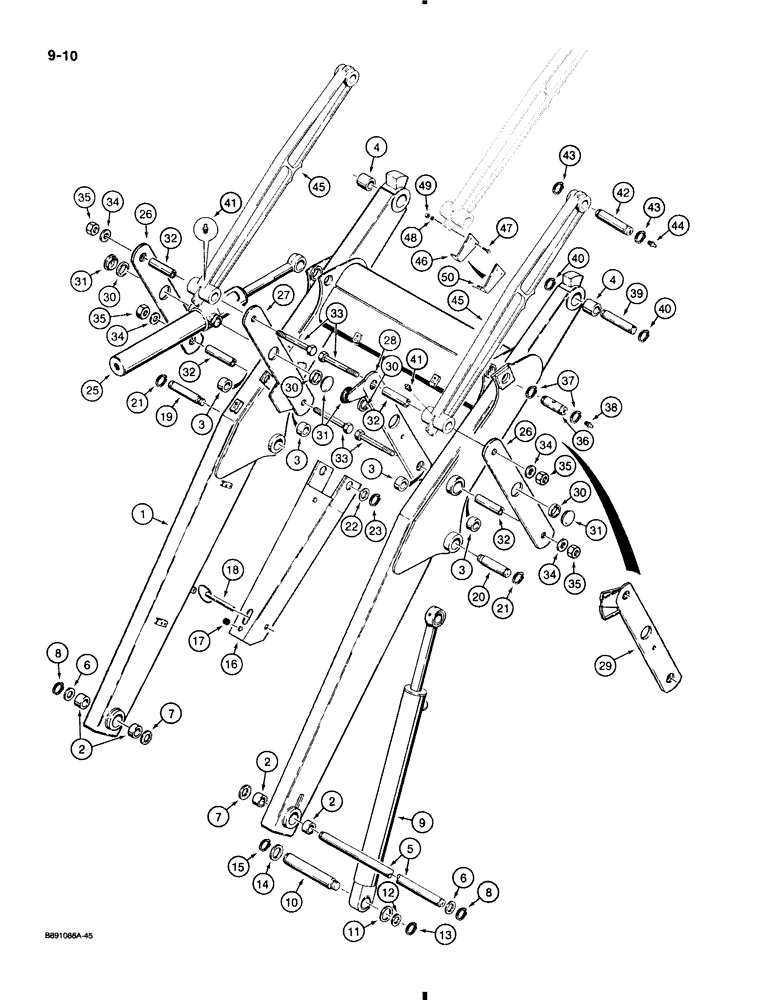

Запчасти Case 580K (9-010) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D141774

FRAME loader lift, has 3 cage nuts on left hand arm and 2 cage nuts on cross tube, for service order D141775 loader frame

1шт.

1

D141775

FRAME

loader lift, service replacement, has 3 cage nuts on each lift arm and 3 cage nuts on cross tube, Includes Ref. 2-4

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

loader frame pivot

4шт.

3

D37763

BUSHING

bucket cylinder link pivot

4шт.

4

D129240

BUSHING,40.23mm ID x 50mm OD x 70mm L

bucket mounting

2шт.

5

D136526

SHAFT

loader lift frame pivot

1шт.

6

D143409

WASHER,44.86mm ID x 63.5mm OD x 3.31mm Thk

flat, special

2шт.

7

R27181

WASHER

SPRING Belleville, special, lift frame pivot shaft seal

2шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, , lift frame pivot shaft #175, Ext

2шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY, loader lift, right hand and left hand, left hand not shown, for correct assembly and components, see Figure 8-136

2шт.

10

D135669

PIN,50mm OD x 277mm L

lift cylinder pivot, closed end

2шт.

11

D143431

WASHER

special, outer side only

2шт.

12

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch, outer

2шт.

13

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin, lift cylinder closed end, outer #175, Ext

2шт.

14

495-81282

WASHER,2 1/16" x 3" x .109"

flat, inner, 2-1/16" ID x 3" OD x 1/8" thick

2шт.

15

800-44050

SNAP RING,M50, Ext

RING snap, pin retaining, lift cylinder closed end, inner

2шт.

16

D138247

STRUT

support, loader frame, left hand lift arm only

1шт.

17

D121047

GROMMET

support strut

1шт.

18

D120675

HITCH PIN

PIN lock, cotterless hitch

1шт.

19

D135603

PIN,40mm OD x 178mm L

left hand lift cylinder rod end

1шт.

20

D135604

AXLE PIN,40mm OD x 152mm L

PIN right hand lift cylinder rod end

1шт.

21

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, lift cylinder rod end, outer

2шт.

22

495-81294

WASHER,1.44" ID x 2" OD x 0.07" Thk

flat, inner, 1-7/16" ID x 2" OD x 1/16" thick

2шт.

23

800-44035

SNAP RING,M35, Ext

RING snap, pin retaining, lift cylinder rod end, inner

2шт.

24

G108486

CYLINDER ASSY.

CYLINDER ASSEMBLY, loader bucket, right hand, not shown, parts list Figure 8-138

1шт.

25

G108487

CYLINDER ASSY.

CYLINDER ASSEMBLY, loader bucket, left hand, parts list Figure 8-138

1шт.

26

D137876

PITMAN

LINK bucket cylinder, right hand and left hand, outer

2шт.

27

D137875

PITMAN

LINK bucket cylinder, left hand, inner, with return-to-dig indicator

1шт.

28

D137877

PITMAN

LINK bucket cylinder, right hand, inner, with extra hole for antirollback rod, models without clam bucket, see Ref. 29 for models with clam bucket

1шт.

29

D137874

PITMAN

LINK bucket cylinder, right hand, inner, with extra hole for antirollback rod, models with clam bucket, see Ref. 28 for models without clam bucket, Includes Ref. 30-31

1шт.

30

D129272

BUSHING

one per each link, Ref. 26-29, Serial Range: subs-D151034

1шт.

31

NSS

NOT SOLD SEPARAT

CAP one per each link, Ref. 26-29

1шт.

32

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING cylinder links, spacer

4шт.

33

413-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

hex head, plated, 1" - 8 NC x 7-1/2"

4шт.

34

495-11106

WASHER,1", SAE

flat, plated, 1"

4шт.

35

425-1016

NUT,1"-8, G5

4шт.

36

D129279

PIN,40mm OD x 109mm L

bucket cylinder rod end

2шт.

37

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, bucket cylinder rod end

4шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

39

D129256

PIN,40mm OD x 175mm L

loader lift frame to lower bucket mounting hole

2шт.

40

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, lift frame to lower bucket mounting hole

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

42

D129257

PIN,40mm OD x 175mm L

link to upper bucket mounting hole

2шт.

43

800-44040

SNAP RING,M40, Ext

RING snap, pin retaining, link to bucket

4шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING greease, straight, 1/8" NPT

2шт.

45

D139595

PITMAN

LINK bucket, without bushings, left hand or right hand, with or without clam bucket

2шт.

46

D121194

POINTER

bucket position, models without clam bucket

1шт.

47

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16" NC x 1-1/4"

2шт.

48

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

49

425-105

NUT,5/16"-18, G5

hex, 5/16" NC

2шт.

50

D123157

SUPPORT

POINTER bucket position, models with clam bucket

1шт.
