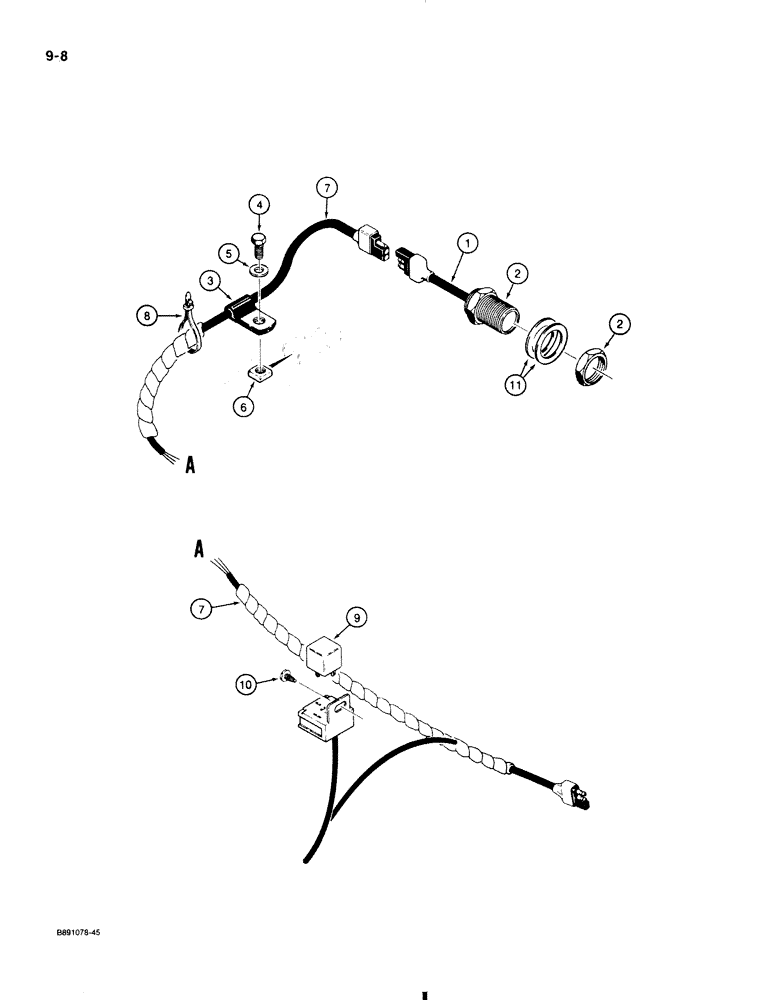

Запчасти Case 580K (9-008) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

D136898

SWITCH

proximity, return-to-dig, Includes nuts

1шт.

2

N14113

NUT

hex, special, return-to-dig switch

2шт.

3

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, mounts to cage on top of left hand loader lift arm, subs to 515-23127

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

5

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

6

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16" - 18 NC

1шт.

7

D141120

HARNESS

return-to-dig, attaches to main harness

1шт.

8

D147773

CLAMP

STRAP tie, harness to lift arm hydraulic tubes and chassis upright tubes

5шт.

This is new style -- old style is part nbr L18337, refer to service bulletin NLB SB 003 90 in "additional info"

1шт.

9

D128310

RELAY

30 amperes, return-to-dig harness

1шт.

Relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

10

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer, slotted, self tapping, No. 10 x 3/8", attaches harness socket to relay mounting plate

1шт.

11

195-2185

WASHER,1 17/64" x 1 7/8" x 048"

flat, plated, 1-1/8"

2шт.
