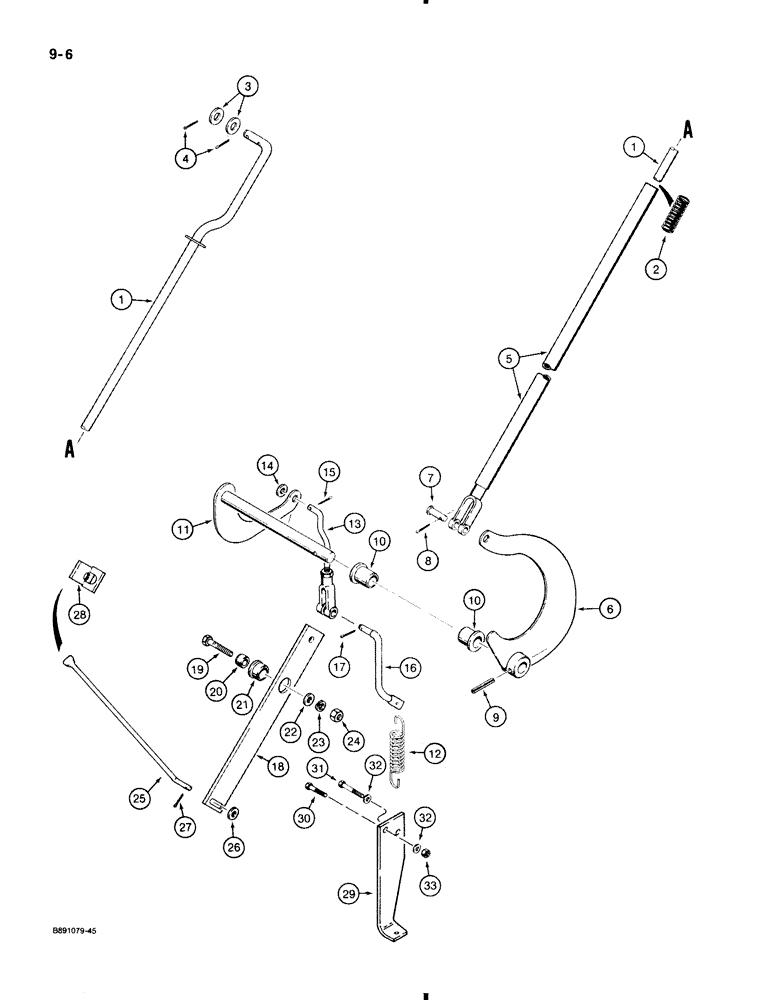

Запчасти Case 580K (9-006) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D140602
ROD
rollback, attaches to bucket cylinder link
1шт.
1
D143429
ROD
rollback, attaches to bucket cylinder link
1шт.
2
D140612
SPRING
rollback rod
1шт.
3
495-11053
WASHER,1/2", SAE
2шт.
4
132-310
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
5
D140600
TUBE
antirollback, rod
1шт.
6
D140556
LEVER
rollback, mounts to chassis upright
1шт.
7
141-54
CLEVIS PIN,3/8" x 1 1/16"
Special length 3/8" x 1 1/16"
1шт.
8
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
9
135-819
GROOVED PIN,1/4" x 1 1/2", Type E, Hardened
PIN, GROOVED, 1/4" x 1 1/2", Type E, Hardened
1шт.
10
D124452
BUSHING
lever, at chassis upright
2шт.
11
D140529
SHAFT
rollback
1шт.
12
D120911
SPRING
return
1шт.
13
D143800
ROD
rollback, attaches to lever shaft
1шт.
14
195-525
WASHER,3/8", SAE
flat, plated, 3/8"
1шт.
15
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
16
D140530
ROD
rollback
1шт.
17
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
18
D138927
LEVER
pivot, rollback
1шт.
19
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
20
D135892
BUSHING
pivot lever, small
1шт.
21
D136277
BUSHING
pivot lever, large
1шт.
22
195-106
WASHER,1/2"
flat, plated, 1/2"
1шт.
23
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
24
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
25
D136726
ROD
rollback
1шт.
26
195-521
WASHER,5/16", SAE
flat, plated, 5/16"
1шт.
27
132-330
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
1шт.
28
D136728
PLATE
BLOCK tapped, attaches to loader valve bucket control rod
1шт.
29
D140531
SUPPORT
BRACKET spring mounting, attaches to loader control valve mounting bracket
1шт.
30
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
31
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
32
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
33
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
Выбрано товаров: 34
