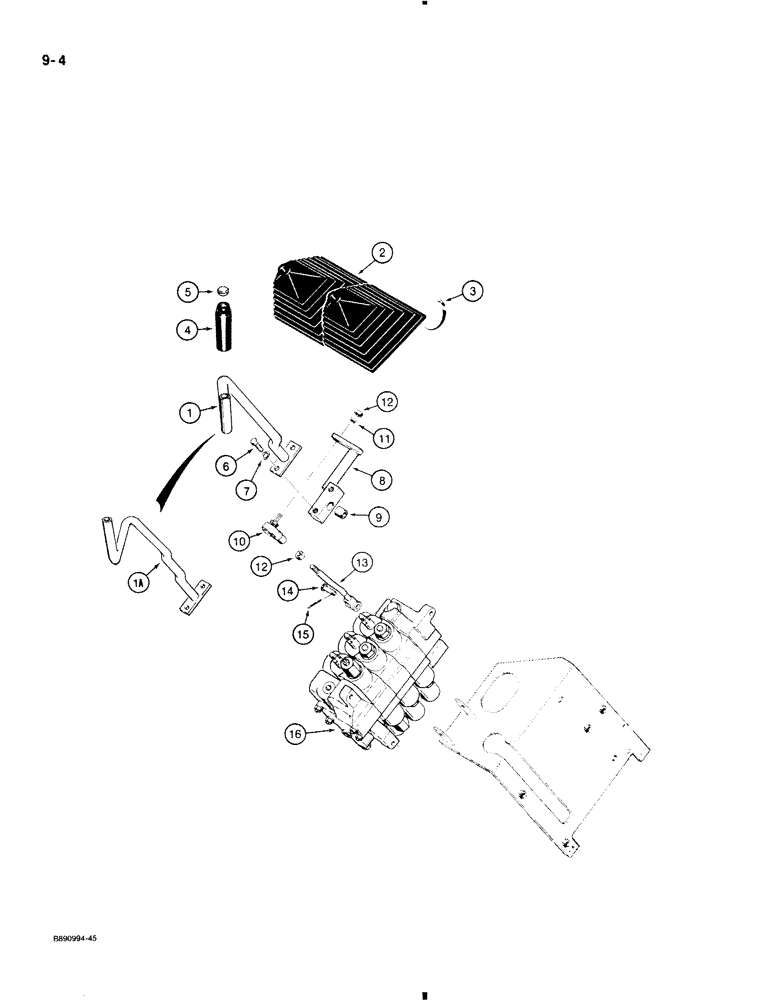

Запчасти Case 580K (9-004) - LOADER CONTROLS - CLAM SPOOL (09) - CHASSIS/ATTACHMENTS

1

D137789

CONTROL LEVER

LEVER loader clam control, used on models without tilt/telescoping steering column

1шт.

1a

D139681

LEVER ASSY.

LEVER loader clam control, used on models with tilt/telescoping steering column

1шт.

2

D137465

BOOT

two lever, used on models with clam control lever, see Figure 9-2 for boot used on models without clam control lever

1шт.

3

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self tapping, 1/4 NC x 3/4"

4шт.

4

D91439

TUBE

KNOB clam loader control lever

1шт.

5

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8"

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

D136564

LEVER

pivot, clam, Includes Ref. 9

1шт.

9

D136515

BUSHING

clam pivot lever

1шт.

10

R47940

BALL JOINT

JOINT ball, female, with stud

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, plated, 3/8" - 24 NF

2шт.

13

D136720

ROD

clevis, clam control

1шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

1шт.

15

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, three spool, for correct assembly and components, see Figure 8-86, for mounting see Figure 9-2

1шт.
