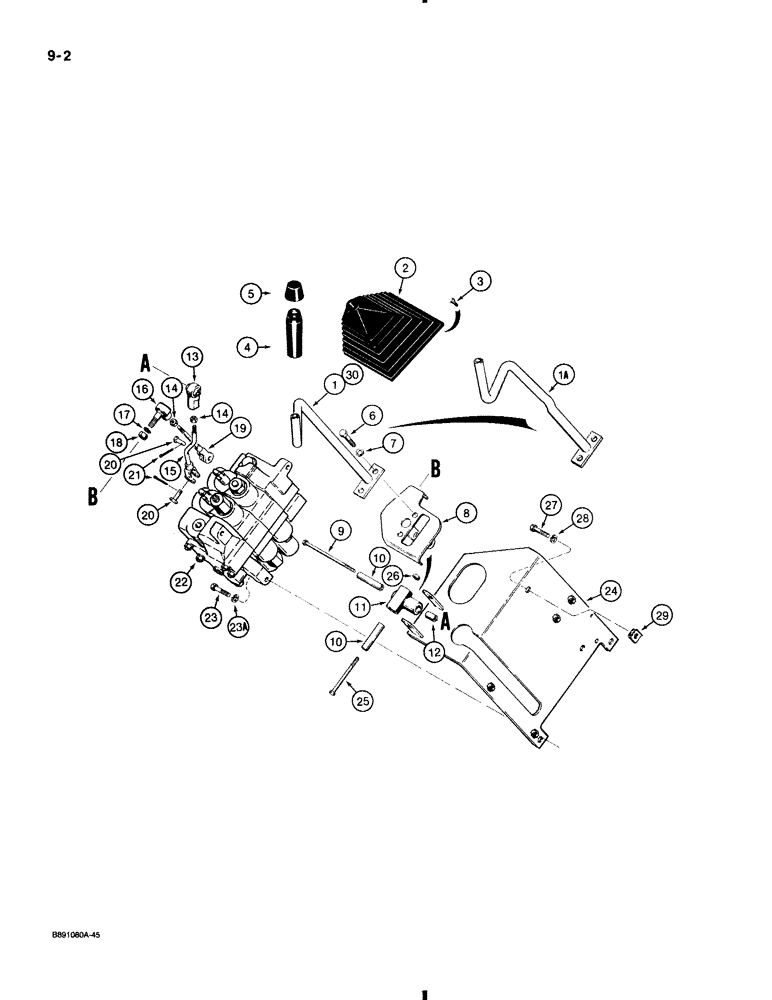

Запчасти Case 580K (9-002) - LOADER CONTROLS - LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

D137788

CONTROL LEVER

LEVER loader lift and bucket control, used on models without tilt/telescoping steering column, used with G109581 loader valve

1шт.

1a

D139679

LEVER ASSY.

LEVER loader lift and bucket control, used on models with tilt/telescoping steering column

1шт.

2

D137466

BOOT

control lever, used on models without clam control lever, see Figure 9-4 for boot used on models with clam control lever

1шт.

3

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer, self tapping, black, 1/4 NC x 3/4"

4шт.

4

D91439

TUBE

KNOB loader control lever

1шт.

5

D138252

BOOT

COVER switch, see Figure 4-26 for fast cycle switch

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

D136295

LARGE PLATE

BRACKET control lever mounting

1шт.

9

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

hex head, plated, attaches to rollback rod tapped block, 3/8" - 16 NC x 5-1/2", see Figure 9-6, Ref. 28

1шт.

10

D139286

SPACER

SLEEVE pivot, long

2шт.

11

D136326

LEVER

pivot

1шт.

12

D139285

SPACER

SLEEVE pivot, short

1шт.

13

D136773

BALL JOINT

JOINT ball, female, without stud

1шт.

14

129-123

NUT,3/8"-24, G5

2шт.

15

D136722

ROD

clevis, bucket control

1шт.

16

R47940

BALL JOINT

JOINT ball, female, with stud

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

129-123

NUT,3/8"-24, G5

1шт.

19

D136720

ROD

clevis, lift control

1шт.

20

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, two spool, for correct assembly and components, see Figure 8-84

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Attaches to weld nuts in valve mounting bracket Hex, 3/8"-16 x 1 1/2", G5

3шт.

23a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

D140533

LARGE PLATE

BRACKET loader control valve mounting

1шт.

25

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

26

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

D122307

NUT

NUT U-type, 3/8" - 16 NC

3шт.

30

D146799

LEVER ASSY.

LEVER loader lift and bucket control, used on models without tilt/telescoping steering column, used with 1343697C2 loader valve

1шт.
