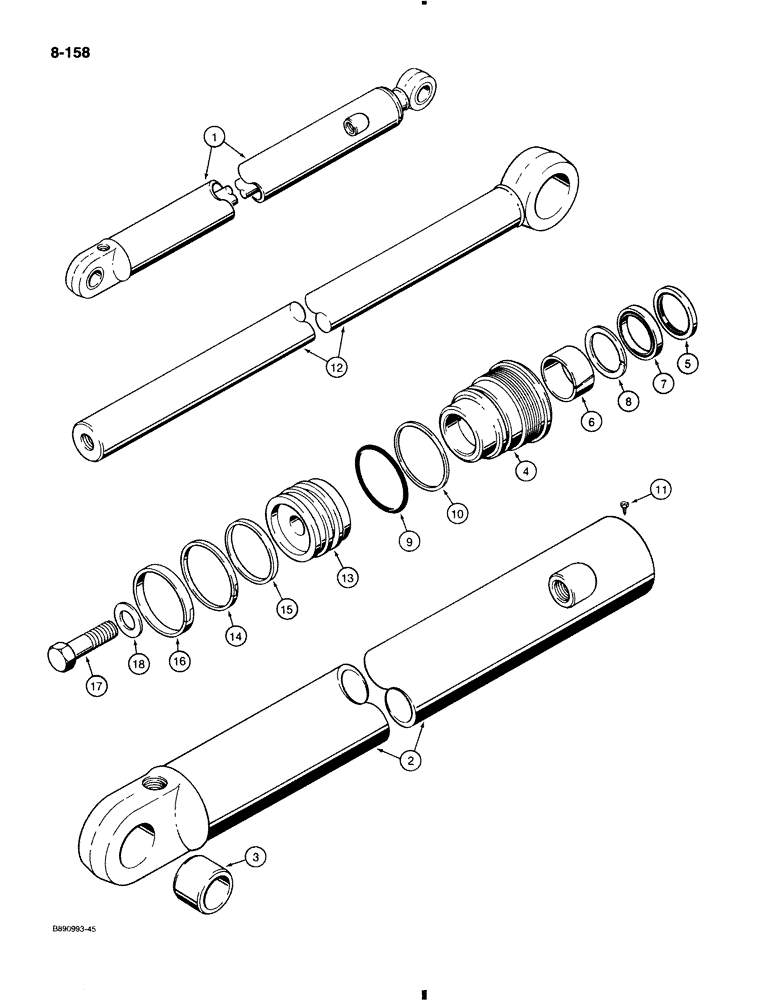

Запчасти Case 580K (8-158) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

1980200C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, dipper extension, 3", 76 mm ID x 42-1/16", 1068 mm stroke, no longer available, order 1340969C1 cylinder

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1340969C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, dipper extension, 3", 76 mm ID x 42-1/16", 1068 mm stroke, Includes Ref. 2, 3A, 11-18, and P/N G109885

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1980213C1

HYD CYL SLEEVE

TUBE ASSEMBLY, 1980200C1 cylinder, with bushing, Includes Ref. 3

1шт.

3

G108507

BUSHING,40.19mm ID x 47.62mm OD x 38.1mm L

1980213C1 tube

1шт.

3a

1340970C1

TUBE,76.1mm Bore Dia

BARREL, Tube 1340969C1 cylinder, without bushing, not shown

1шт.

G109885

GLAND

ASSEMBLY, cylinder, Includes Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N G110049

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N G110049

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110049

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110049

1шт.

9

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G110049

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110049

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8 NC x 3/8"

1шт.

12

1980296C1

PISTON ROD

ROD piston, without bushing, 1-3/4", 44 mm diameter

1шт.

13

G107277

PISTON

cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G110049

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit P/N G110049

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, hardened, 3/4"

1шт.

G110049

KIT

seal, Includes Refs. 5, 6, 7, 8, 9, 10, 14, 15 and 16, Serial Range: subs-1543267C1

1шт.
