(2-008) - AIR CLEANER, MODELS WITH OR WITHOUT A TURBOCHARGED ENGINE

Запчасти Case 580K (2-008) - AIR CLEANER, MODELS WITH OR WITHOUT A TURBOCHARGED ENGINE (02) - ENGINE

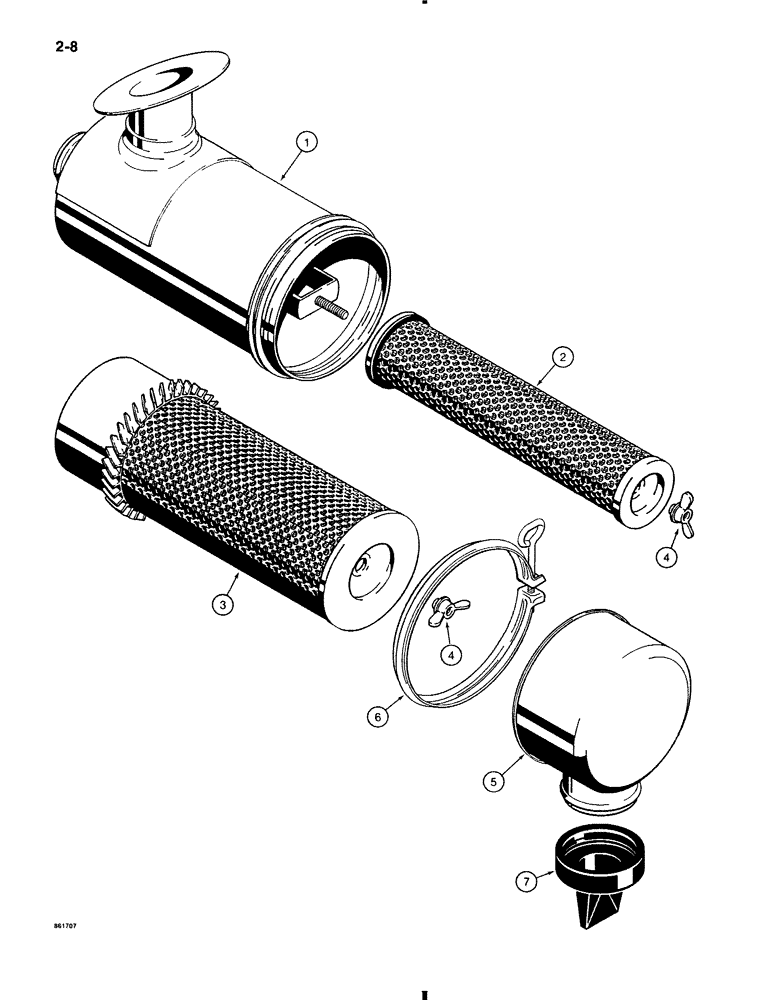

Схема запчастей Case 580K - (2-008) - AIR CLEANER, MODELS WITH OR WITHOUT A TURBOCHARGED ENGINE (02) - ENGINE
4
3
2
4
5
1
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D143874

AIR CLEANER

CLEANER ASSEMBLY, air, engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

2

A173291

AIR FILTER

ELEMENT secondary

1шт.

3

A173290

AIR FILTER

ELEMENT primary

1шт.

4

D78354

WING NUT

NUT wing, element

2шт.

5

A184598

COVER

end

1шт.

6

F84999

CLAMP,168.28mm

air cleaner, housing to end cover

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

POPPET valve, dust, rubber

1шт.

Выбрано товаров: 8
