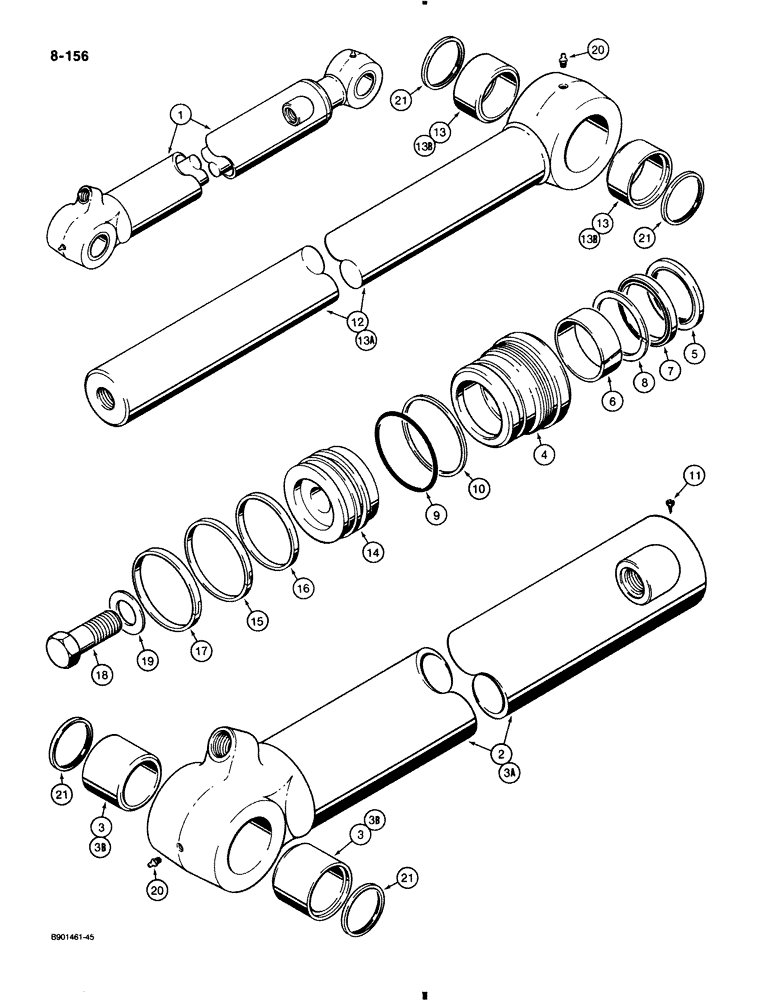

Запчасти Case 580K (8-156) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

G110597

CYLINDER

ASSEMBLY, bucket, 3-1/2", 89 mm ID x 34-5/16", 872 mm stroke, no longer available, order 1340991C1 cylinder

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

1340991C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, bucket, 3-1/2", 89 mm ID x 34-5/16", 872 mm stroke, Includes Ref. 2, 3A, 11, 12, 13A, 14-21, and P/N G109894

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

G110598

TUBE

ASSEMBLY, G110597 cylinder, Includes Ref. 3

1шт.

3

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

G110598 tube

2шт.

3a

1340992C1

TUBE

ASSEMBLY, 1340991C1 cylinder, Includes Ref. 3B

1шт.

3b

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

1340992C1 Tube

2шт.

G109894

GLAND

ASSEMBLY, cylinder, Includes Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit P/N G110046

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

center

1шт.

Part of seal kit P/N G110046

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110046

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110046

1шт.

9

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G110046

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit P/N G110046

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8 NC x 3/8"

1шт.

12

1978059C1

PISTON ROD

ROD ASSEMBLY, piston, 2-1/2", 64 mm diameter, G110597 cylinder, Includes Ref. 13

1шт.

13

G108525

BUSHING,50.19mm ID x 66.68mm OD x 30mm L

1978059C1 piston rod

2шт.

13a

1341854C1

PISTON ROD

ROD ASSEMBLY, piston, 2-1/2", 64 mm diameter, 1340991C1 cylinder, Includes Ref. 13B

1шт.

13b

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

1341854C1 piston rod

2шт.

14

G107404

PISTON

cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G110046

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of seal kit P/N G110046

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of seal kit P/N G110046

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, hardened, 1"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

tube and rod eyes

4шт.

G110046

KIT

seal, Includes Refs. 5, 6, 7, 8, 9, 10, 15, 16 and 17, Serial Range: subs-1542923C2

1шт.
