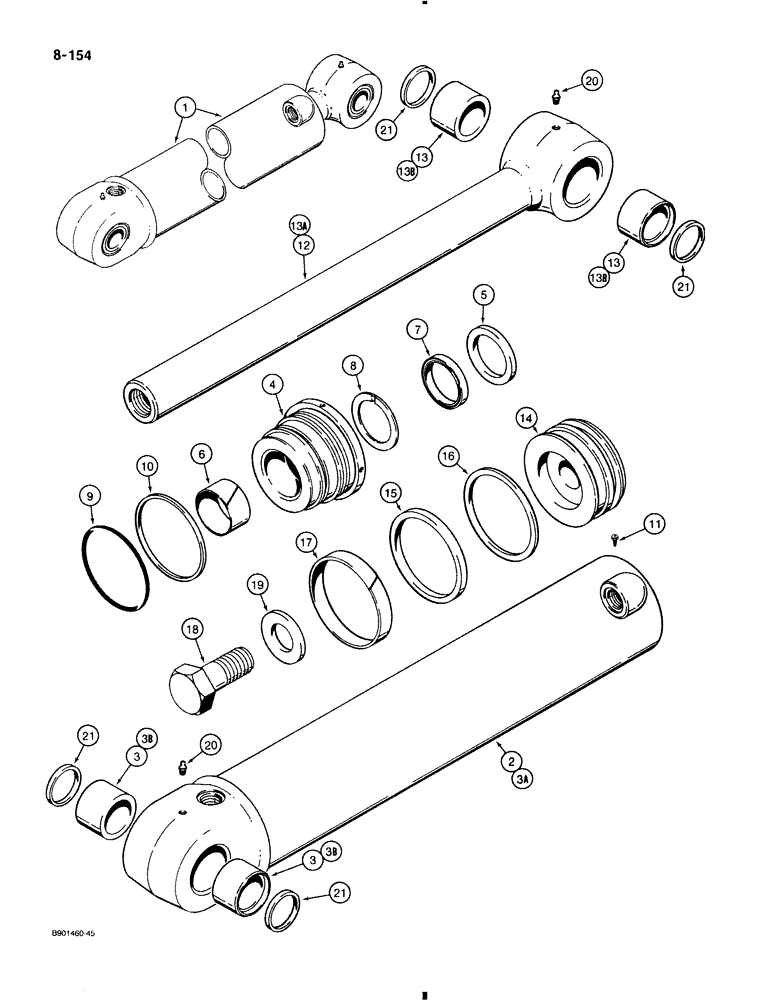

Запчасти Case 580K (8-154) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

G110683

CYLINDER

ASSEMBLY, dipper, 5", 127 mm ID x 22-15/16", 583 mm stroke, no longer available, order 1340984C1 cylinder

1шт.

1

110294A1R

REMAN-HYD CYLINDER

Reman for new P/N G110683

1шт.

1

110294A1C

CORE-HYD CYLINDER

Return Number

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1340984C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, dipper, 5", 127 mm ID x 22-15/16", 583 mm stroke, Includes Ref. 2, 3A, 11, 12, 13A, 14-21, and P/N G110687

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

110294A1R

REMAN-HYD CYLINDER

Reman for new P/N 1340984C1

1шт.

1

110294A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

G110684

TUBE

G110683 cylinder, Includes Ref. 3

1шт.

3

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

G110684 tube

2шт.

3a

1340985C1

TUBE

1340984C1 cylinder, Includes Ref. 3B

1шт.

3b

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

1340985C1 Tube

2шт.

G110687

GLAND

ASSEMBLY, cylinder, Includes Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

Part of seal kit P/N G110582

1шт.

5

G108713

WIPER,63.45mm ID x 82.58mm OD x 10.03mm Thk

piston rod

1шт.

Part of seal kit P/N G110582

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Part of seal kit P/N G110582

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110582

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110582

1шт.

9

39738

O-RING,4.609" ID x 0.139" Width

gland

1шт.

Part of seal kit P/N G110582

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110582

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

12

1978058C1

PISTON ROD

ROD ASSEMBLY, piston, 2-1/2", 64 mm diameter, G110683 cylinder, Includes Ref. 13

1шт.

13

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

1978058C1 rod

2шт.

13a

1341853C1

PISTON ROD

ROD ASSEMBLY, piston, 2-1/2", 64 mm diameter, 1340984C1 cylinder, Includes Ref. 13B

1шт.

13b

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

1341853C1 Rod

2шт.

14

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

cylinder

1шт.

15

G102091

SEAL,128.52mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G110582

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup, piston seal

1шт.

Part of seal kit P/N G110582

1шт.

17

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110582

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

19

G104990

WASHER

flat, hardened, 1-1/2"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

rod and tube eyes

4шт.

G110582

KIT

seal, Includes Refs. 6, 7, 8, 9, 10, 15, 16 and 17, subs to 1542915C2, Also requires G108713

1шт.
