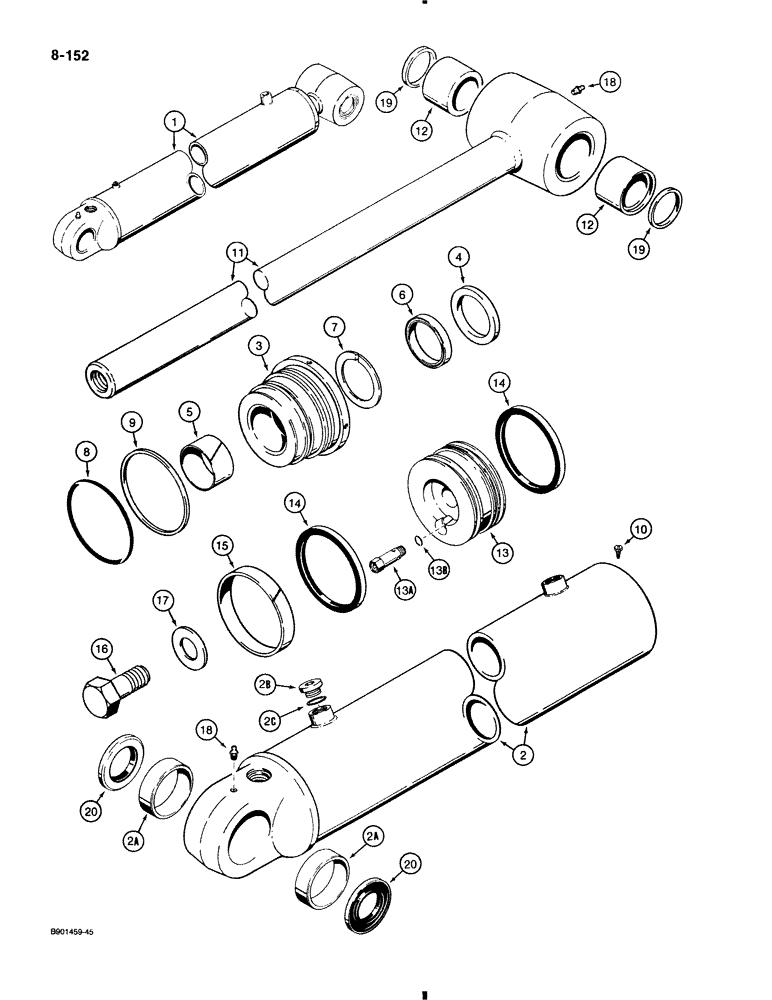

Запчасти Case 580K (8-152) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

1346217C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, boom, 5", 127 mm ID x 33-3/16", 843 mm stroke, if used, Includes Ref. 2, 10-13A, 14-20, and P/N G110575

1шт.

Used with D147729 backhoe boom.

1шт.

2

1346015C1

TUBE,1069 mm Length

cylinder, Includes Ref. 2A, 2B

1шт.

2a

D144421

BUSHING

tube

2шт.

2b

86625138

PLUG,7/18" - 14

Includes Ref. 2C Hex Soc, 7/8"-14 ORB

1шт.

2c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

G110575

GLAND

ASSEMBLY, cylinder, Includes Ref. 3-9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

G108712

WIPER

piston rod

1шт.

Part of seal kit P/N G110583

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N G110583

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-cup, piston rod, wide

1шт.

Part of seal kit P/N G110583

1шт.

7

G109086

RING

SEAL buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110583

1шт.

8

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110583

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110583

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

11

1346224C1

PISTON ROD

ROD piston, 2-1/4", 57 mm diameter, Includes Ref. 12

1шт.

12

D141555

BUSHING,50.19mm ID x 60mm OD x 40mm L

Rod

2шт.

13

1346018C1

JACK PISTON

PISTON cylinder, used with 1958028C1 relief valve cartridge

1шт.

13a

1958028C1

VALVE

ASSEMBLY, relief, cartridge, internal component parts not serviced separately, Includes Ref. 13B

1шт.

14

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

piston

2шт.

Part of seal kit P/N G110583

1шт.

15

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110583

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

hex head, 1-1/4" - 12 NF x 2-1/2", grade 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, 1-1/4"

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

19

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

rod end

2шт.

20

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

closed end

2шт.

G110583

KIT

seal, Includes: Refs. 4 - 9, 14 and 15 subs 1542919C2.

1шт.

13b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Relief valve cartridge, external

1шт.
