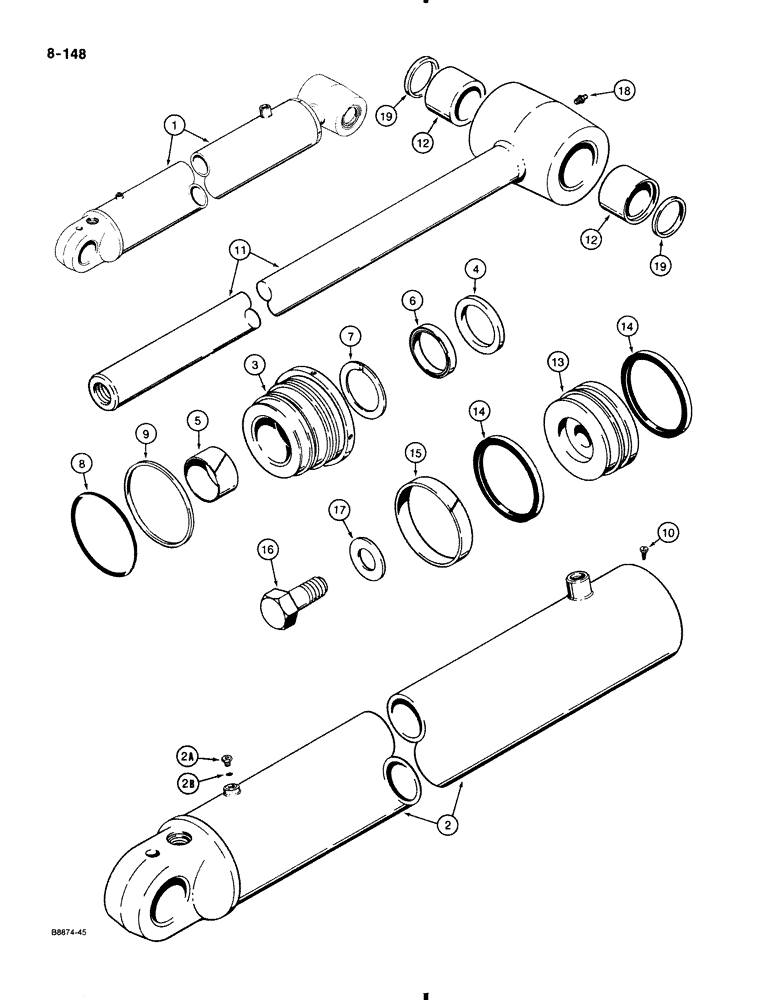

Запчасти Case 580K (8-148) - BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

1971713C2

CYLINDER ASSY.

CYLINDER ASSEMBLY, boom, 5", 127 mm ID x 33-3/16", 843 mm stroke, no longer available, order 1980460C2 boom cylinder on Figure 8-150, Includes Ref. 2, 10, 11, 13, 13A, 13B, 14-19, and P/N G110575

1шт.

2

1971714C1

TUBE

cylinder, Includes Ref. 2A

1шт.

2a

86625138

PLUG,7/18" - 14

Includes Ref. 2B Hex Soc, 7/8"-14 ORB

1шт.

2b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

G110575

GLAND

ASSEMBLY, cylinder, Includes Ref. 3-9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

G108712

WIPER

piston rod

1шт.

Part of seal kit P/N G110583

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N G110583

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL piston rod, wide

1шт.

Part of seal kit P/N G110583

1шт.

7

G109086

RING

SEAL buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110583

1шт.

8

39738

O-RING,4.609" ID x 0.139" Width

gland

1шт.

Part of seal kit P/N G110583

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110583

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

11

1978136C1

PISTON ROD

ROD piston, 2-1/4", 57 mm diameter, Includes Ref. 12

1шт.

12

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

rod

2шт.

13

1958071C1

PISTON ASSY.

PISTON ASSEMBLY, cylinder, Includes relief valve which is not serviced separately, no longer available, order 1958048C1 piston and 1958028C1 relief valve, Ref. 13A and 13B

1шт.

13a

1958048C1

JACK PISTON

PISTON cylinder, used with 1958028C1 relief valve cartridge, not shown

1шт.

13b

1958028C1

VALVE

ASSEMBLY, relief, cartridge, internal component parts not serviced separately, not shown, Includes Ref. 13C

1шт.

14

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

piston

2шт.

Part of seal kit P/N G110583

1шт.

15

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110583

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

hex head, 1-1/4" - 12 NF x 2-1/2", grade 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, hardened, 1-1/4"

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

19

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

rod eye

2шт.

G110583

KIT

seal, Includes: Refs 4 - 9, 14 and 15, subs to P/N 1542919C2.

1шт.

13c

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Relief valve cartridge, external, not shown

1шт.
