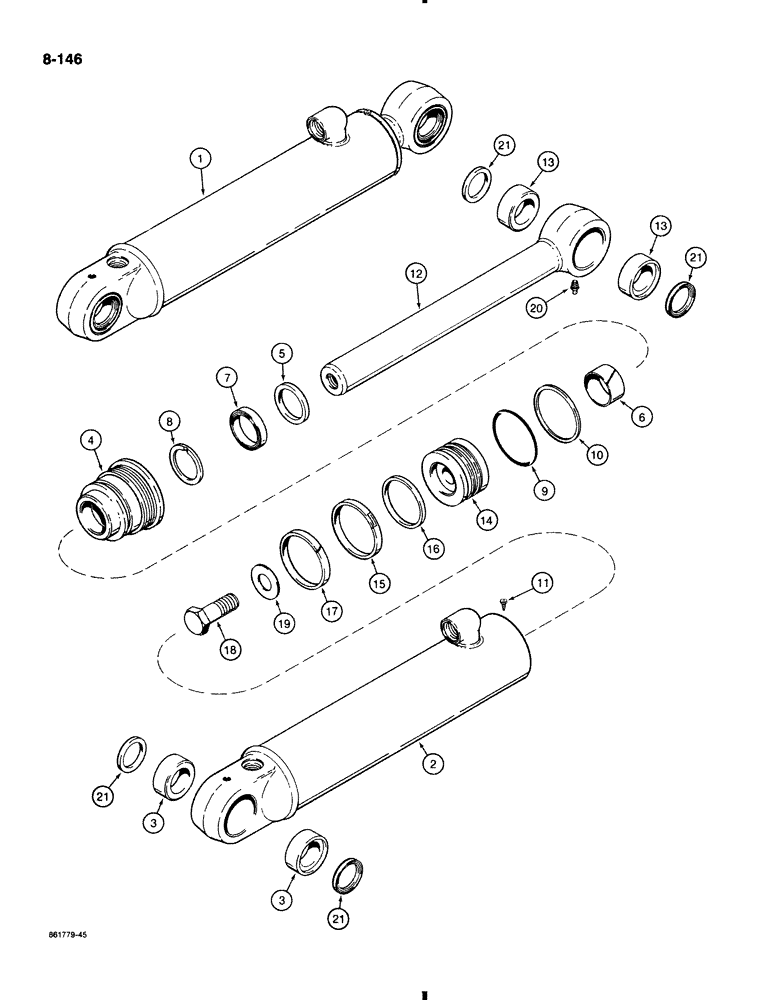

Запчасти Case 580K (8-146) - BACKHOE SWING CYLINDERS (08) - HYDRAULICS

1

1971702C2

CYLINDER ASSY.

CYLINDER ASSEMBLY, swing, 3-1/2", 89 mm ID x 12", 305 mm stroke, Includes. Ref. 2, 11, 12, 14-21, and P/N 1978135C1

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1971704C1

TUBE

ASSEMBLY, cylinder, Includes. Ref. 3

1шт.

3

G108526

BUSHING

tube

2шт.

1978135C1

JACK PISTON

GLAND ASSEMBL,Y cylinder, Includes. Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of seal kit, P/N G110621

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit, P/N G110621

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit, P/N G110621

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit, P/N G110621

1шт.

9

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

gland

1шт.

Part of seal kit, P/N G110621

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit, P/N G110621

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

12

1978061C1

PISTON ROD

ROD ASSEMBLY, piston, 1-3/4", 44 mm diameter, Includes. Ref. 13

1шт.

13

G108526

BUSHING

piston rod

2шт.

14

G110110

PISTON

cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit, P/N G110621

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of seal kit, P/N G110621

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of seal kit, P/N G110621

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, hardened, 3/4"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

21

D127833

SEAL

rod and tube eye

4шт.

G110621

SEAL PACKAGE

KIT seal, Includes Ref. 5, 6, 7, 8, 9, 10, 15, 16, and 17, Serial Range: subs-1543266C1

1шт.
