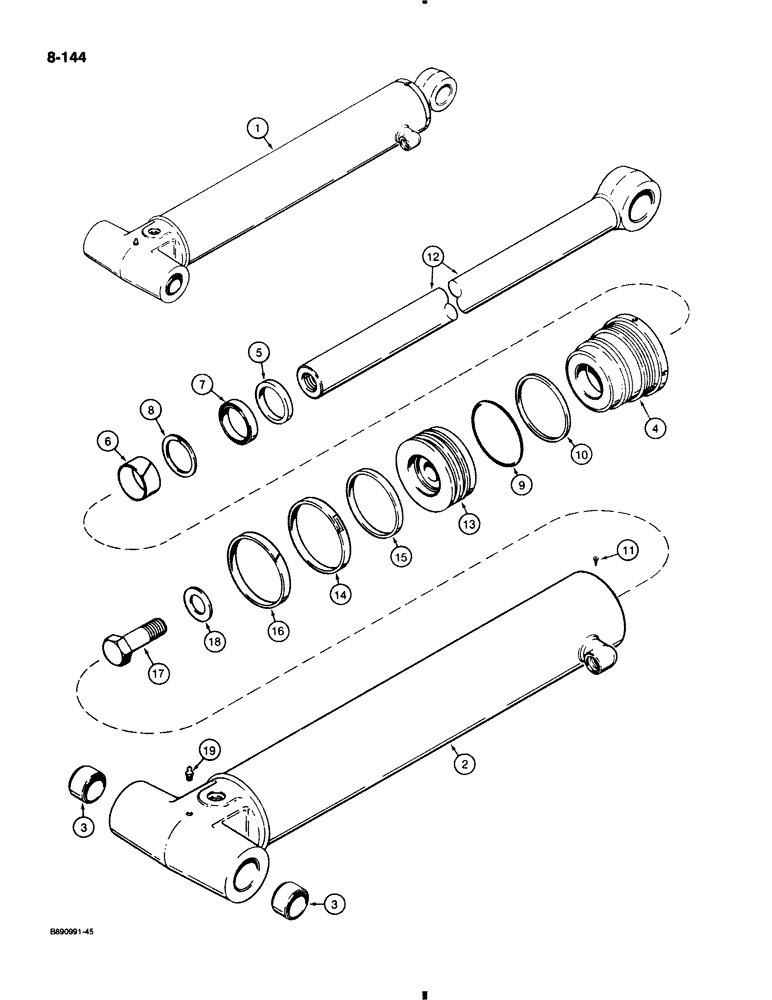

Запчасти Case 580K (8-144) - BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

G110672

CYLINDER ASSY.

CYLINDER ASSEMBLY, stabilizer, right hand, without rod bushings, 4-1/4", 108 mm ID x 21-3/4", 553 mm stroke

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G110673

CYLINDER ASSY.

CYLINDER ASSEMBLY, stabilizer, left hand, without rod bushings, 4-1/4", 108 mm ID x 21-3/4", 553 mm stroke, Includes Ref. 2, 11-19, and P/N G110520

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G110512

HYD TUBE,107.82 mm ID x 780 mm L

TUBE ASSEMBLY, cylinder, right hand

1шт.

2

G110513

HYD TUBE,107.82 mm ID x 780 mm L

TUBE ASSEMBLY, cylinder, left hand, Includes Ref. 3

1шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

G110512 or G110513 tube

2шт.

G110520

GLAND

ASSEMBLY, cylinder, Includes Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper piston rod

1шт.

Part of seal kit P/N G110537

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of seal kit P/N G110537

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110537

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110537

1шт.

9

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G110537

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110537

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

12

1978060C1

PISTON ROD

ROD piston, 2", 51 mm diameter

1шт.

13

G110522

PISTON

cylinder

1шт.

14

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G110537

1шт.

15

G110529

RING

bakcup, piston seal

1шт.

Part of seal kit P/N G110537

1шт.

16

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110537

1шт.

17

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

hex head, 1" - 14 National Super Fine x 3", grade 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, hardened, 1"

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

G110537

KIT

seal, Includes Refs. 5, 6, 7, 8, 9, 10, 14, 15 and 16, Serial Range: subs-1543275C1

1шт.
