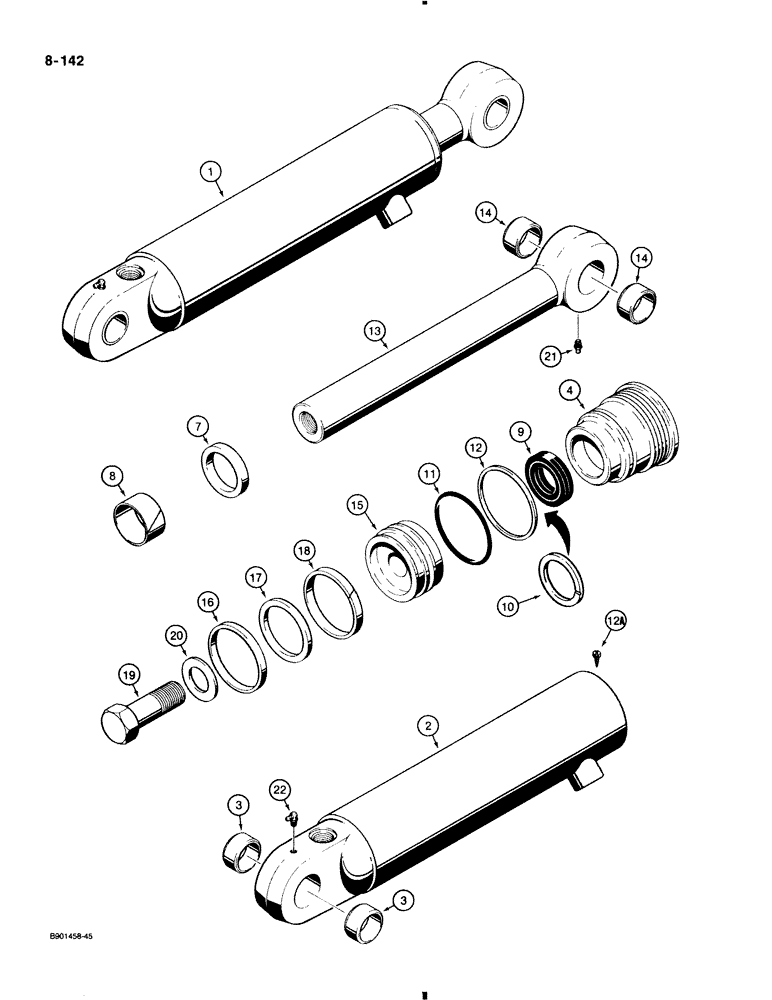

Запчасти Case 580K (8-142) - LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

1346189C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, clam, right hand, 3", 76 mm ID x 9", 229 mm stroke

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

87454017R

REMAN-HYD CYLINDER

580K LOADER BACKHOE (NORTH AMERICA) (ASN JJG0020000), CYLINDER ASSEMBLY, clam, right hand, 3", 76 mm ID x 9", 229 mm stroke, Reman for New PN 1346189C1

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

1346190C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, clam, left hand, 3", 76 mm ID x 9", 229 mm stroke, Includes Ref. 2, 12A-22, and P/N G109885

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1346191C1

TUBE

ASSEMBLY, right hand cylinder

1шт.

2

1346192C1

TUBE

ASSEMBLY, left hand cylinder, Includes Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

1346191C1 or 1346192C1 tube

2шт.

G109885

GLAND

ASSEMBLY, cylinder, Includes Ref. 4-12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

Part of seal kit P/N G110049

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N G110049

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110049

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, piston rod, service option, severe heat or cold

1шт.

10

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110049

1шт.

11

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit P/N G110049

1шт.

12

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110049

1шт.

12a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

13

1346195C1

PISTON ROD

ROD ASSEMBLY, piston, 1-3/4", 44 mm diameter, Includes Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

15

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G110049

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit P/N G110049

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit P/N G110049

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, hardened, 1"

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

G110049

KIT

seal, Includes Refs. 7, 8, 9, 10, 11, 12, 16, 17 and 18, Serial Range: subs-1543267C1

1шт.
