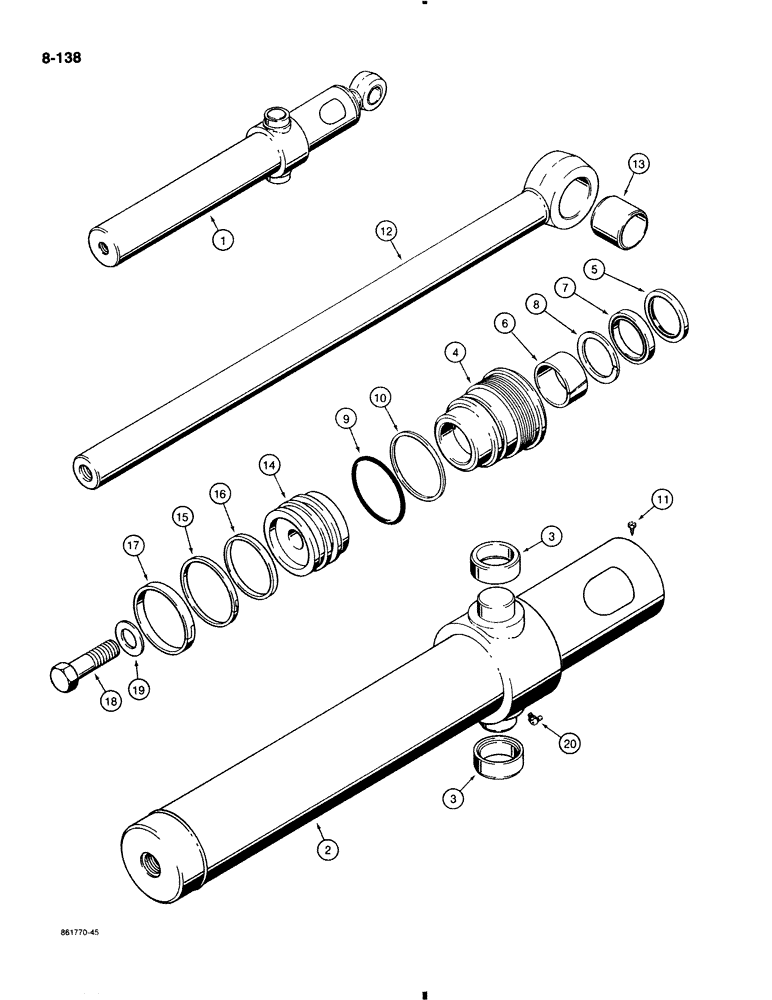

Запчасти Case 580K (8-138) - LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G108486

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3", 76 mm ID x 21", 522 mm stroke, bucket, right hand, Includes bushings in cylinder tube

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G108487

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3", 76 mm ID x 21", 522 mm stroke, bucket, left hand, Includes bushings in cylinder tube, Includes Ref. 2, 11, 12, 14-20, and P/N G109882

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G108508

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

ASSEMBLY, cylinder, right hand

1шт.

2

G108509

TUBE,76.1 mm ID x 76.2 mm DIA x 695 mm L

ASSEMBLY, cylinder, left hand, Includes Ref. 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

G108508 or G108509 tube

2шт.

G109882

GLAND

ASSEMBLY, cylinder, subs to 297280A1, Includes Ref. 5-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of seal kit, P/N G110050

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit, P/N G110050

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit, P/N G110050

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit, P/N G110050

1шт.

9

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

gland

1шт.

Part of seal kit, P/N G110050

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit, P/N G110050

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8 NC x 3/8"

1шт.

12

1978056C1

PISTON ROD

ROD ASSEMBLY, piston, 1-1/2", 38 mm diameter, Includes Ref. 13

1шт.

13

G108507

BUSHING,40.19mm ID x 47.62mm OD x 38.1mm L

piston rod

1шт.

14

G108518

PISTON

cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit, P/N G110050

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit, P/N G110050

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit, P/N G110050

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, hardened, 3/4"

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

G110050

KIT

seal, Includes Refs. 5, 6, 7, 8, 9, 10, 15, 16 and 17, Serial Range: subs-1543256C1

1шт.
