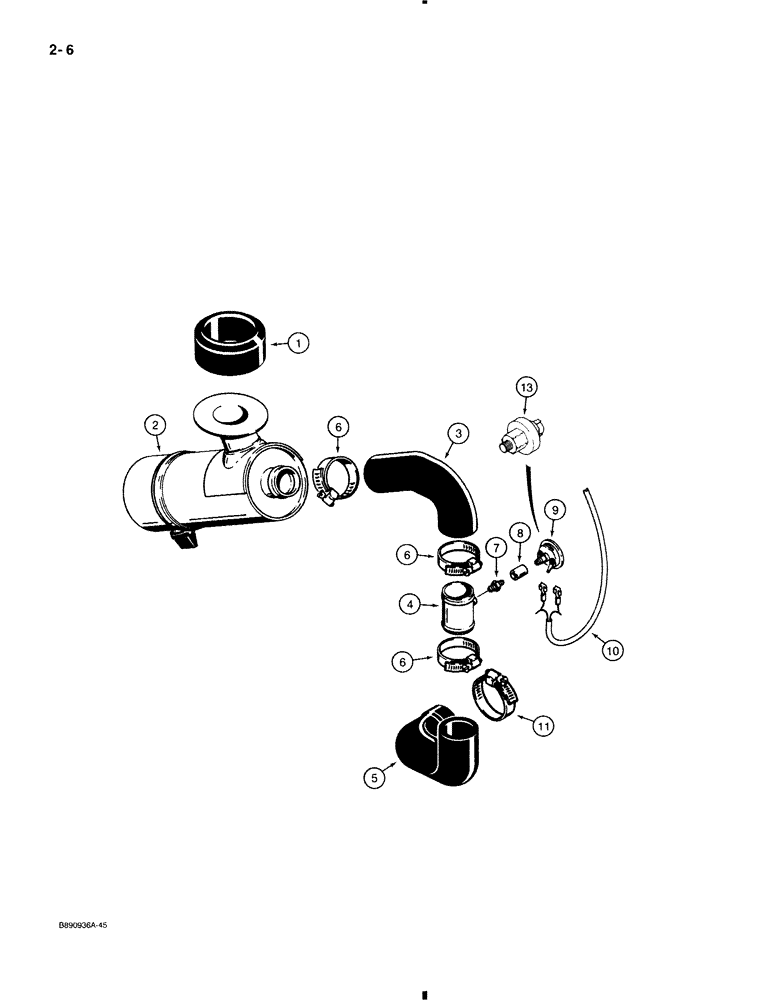

Запчасти Case 580K (2-006) - AIR CLEANER AND AIR INTAKE PARTS, MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

1

D143756

SEAL

air cleaner

1шт.

2

D143874

AIR CLEANER

CLEANER ASSEMBLY, air, engine, see Figure 2-008

1шт.

3

D139340

INTAKE AIR HOSE,63.50 mm ID, SAE J200

Air Cleaner, Upper 63.50 mm ID, SAE J200

1шт.

4

D139343

ADAPTER

coupling, air restriction

1шт.

5

D139342

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

Air Cleaner, Lower, At Engine, For service order D139394, See Ref. 12 63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

6

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose, Includes hardware

3шт.

7

D36264

FITTING

FILTER ASSEMBLY, fitting, air restriction indicator, if used

1шт.

8

221-1335

COUPLING,Pipe, 1/8" NPT

if used Pipe, 1/8" NPT

1шт.

9

L103131

INDICATOR

SENDER air filter restriction indicator, if used

1шт.

10

D140449

HARNESS

WIRE jumper, restriction indicator, attaches to front console wiring harness

1шт.

11

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP hose to engine

1шт.

12

D139394

LARGE HOSE

HOSE air cleaner, lower, at engine, not shown

1шт.

13

1983233C1

RESTRICTION SWITCH

SENDER, air filter restriction indicator switch, Replaces: Ref. 7 - 9 on some models, if used

1шт.
