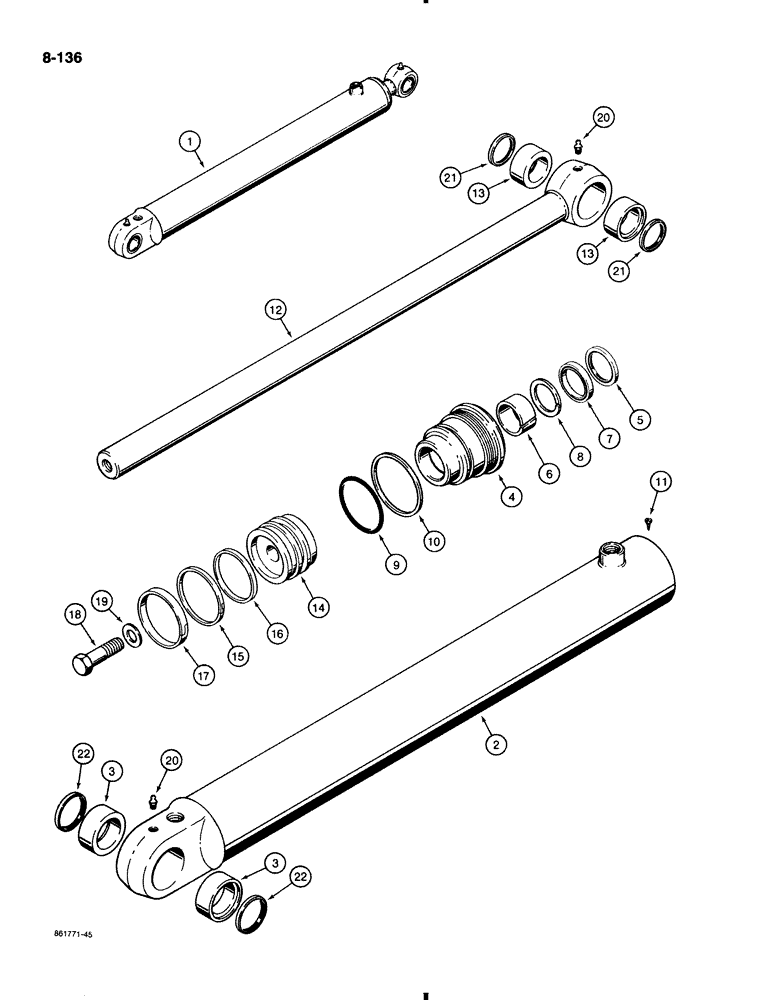

Запчасти Case 580K (8-136) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

G108478

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/4", 82 mm ID x 29", 740 mm stroke, lift, right hand and left hand, no longer used, order 1340976C1 cylinder below and D146261 and D146263 tubes, Ref. 31 and 32 on Figure 8-18

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1980317C1

CYLINDER

ASSEMBLY, 3-1/4", 82 mm ID x 29", 740 mm stroke, lift, right hand and left hand, no longer used, order 1340976C1 cylinder below and D146261 and D146263 tubes, Ref. 31 and 32 on Figure 8-18

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

1340976C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/4", 82 mm ID x 29", 740 mm stroke, lift, right hand and left hand, Includes Ref. 2, 11, 12, 14-22, and P/N's G110623, 190322C1

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G108502

TUBE,87.07 mm ID x 89.76 mm OD x 950.4 mm L

ASSEMBLY, G108478 cylinder

1шт.

2

1980318C1

HYD TUBE,82.6 mm OD

TUBE ASSEMBLY, 1980317C1 cylinder

1шт.

2

1340977C1

TUBE

ASSEMBLY, 1340976C1 cylinder, Includes Ref. 3

1шт.

3

G108698

BUSHING

G108502 or 1980318C1 tube

2шт.

3

1980335C1

BUSHING,50.19mm ID x 60mm OD x 19mm L

1340977C1 tube

2шт.

G110623

GLAND

ASSEMBLY, G108478 cylinder

1шт.

1980322C1

GLAND

ASSEMBLY, 1980317C1 or 1340976C1 cylinder, Includes Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

Part of seal kit P/N G110053

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit P/N G110053

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit P/N G110053

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G110053

1шт.

9

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

gland

1шт.

Part of seal kit P/N G110053

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110053

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex, slotted, self tapping, No. 8" NC x 3/8"

1шт.

12

G108505

ROD ASSY.

ROD ASSEMBLY, piston, 1-3/4", 44 mm diameter, G108478 cylinder

1шт.

12

1978055C1

PISTON ROD

ROD ASSEMBLY, piston, 1-3/4", 44 mm diameter, 1980317C1 cylinder

1шт.

12

1341852C1

PISTON ROD

ROD ASSEMBLY, piston, 1-3/4", 44 mm diameter, 1340976C1 cylinder, Includes Ref. 13

1шт.

13

G108526

BUSHING

G108505 or 1978055C1 piston rod

2шт.

13

D144895

BUSHING

1341852C1 piston rod

2шт.

14

G108184

PISTON

cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit P/N G110053

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

Part of seal kit P/N G110053

1шт.

17

S109445

RING,82.55mm OD, Ext

wear, piston

1шт.

Part of seal kit P/N G110053

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, hardened, 3/4"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

21

D127833

SEAL

rod eye

2шт.

22

D127866

SEAL

tube eye, G108478 or 1980317C1 cylinder

2шт.

22

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

tube eye, 1340976C1 cylinder

2шт.

G110053

GASKET KIT

KIT seal, Includes Refs. 5, 6, 7, 8, 9, 10, 15, 16 and 17

1шт.
