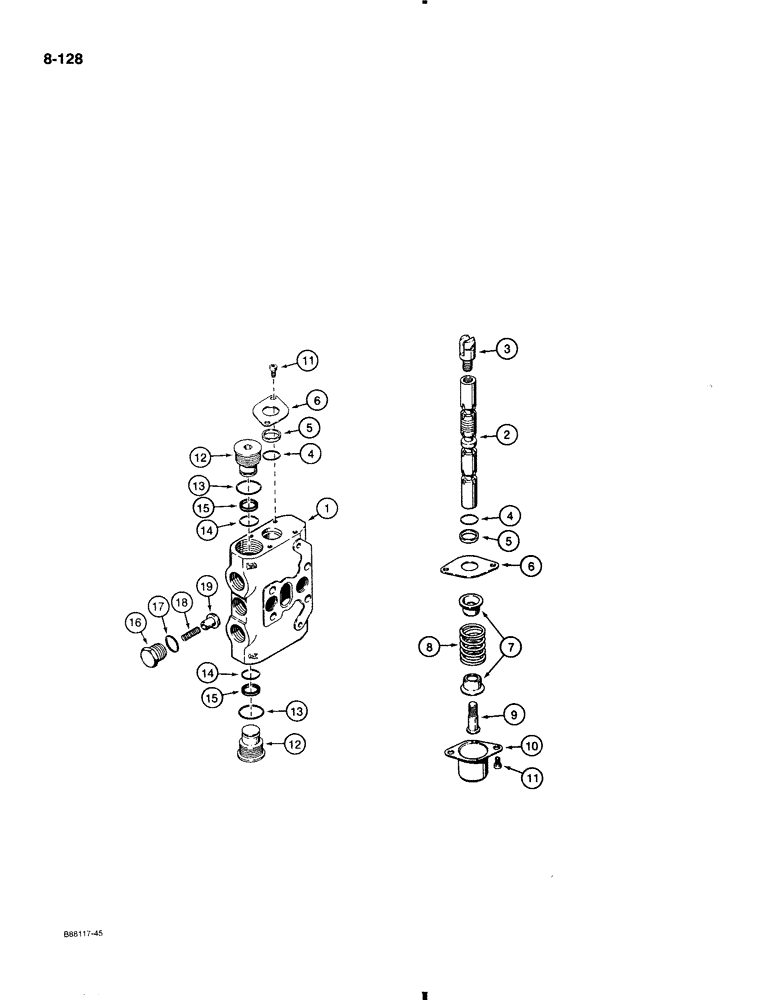

Запчасти Case 580K (8-128) - THREE-POINT HITCH CONTROL VALVE, PITCH AND TILT SECTIONS (08) - HYDRAULICS

N14268

KNIFE SECTION

SECTION ASSEMBLY, pitch and tilt, Includes Ref. 1-3, 6, 11, and P/N's N14288, N14265, N14271, N14266

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING pitch and tilt section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL pitch and tilt section

1шт.

3

N14264

EYE

spool

1шт.

N14288

KIT

wiper, spool, Includes Ref. 4-5

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING spool

2шт.

5

NSS

NOT SOLD SEPARAT

WIPER spool

2шт.

6

NSS

NOT SOLD SEPARAT

RETAINER plate, spool wiper

2шт.

N14265

KIT

spool, cap end, Includes Ref. 7-10

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING centering, spool

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT spool, cap end

1шт.

10

NSS

NOT SOLD SEPARAT

CAP valve spool

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT cap and retainer plate

4шт.

N14271

PLUG

ASSEMBLY, valve, upper and lower, if used, Includes Ref. 12-15

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

13

R15366

O-RING,7/8" ID x 1" OD x 1/16"

plug, outer, large

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

plug, small

1шт.

15

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

N14266

VALVE

ASSEMBLY, load check valve, section, Includes Ref. 16-19

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

N14653

O-RING

plug

1шт.

18

N14652

SPRING

load check valve

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.
