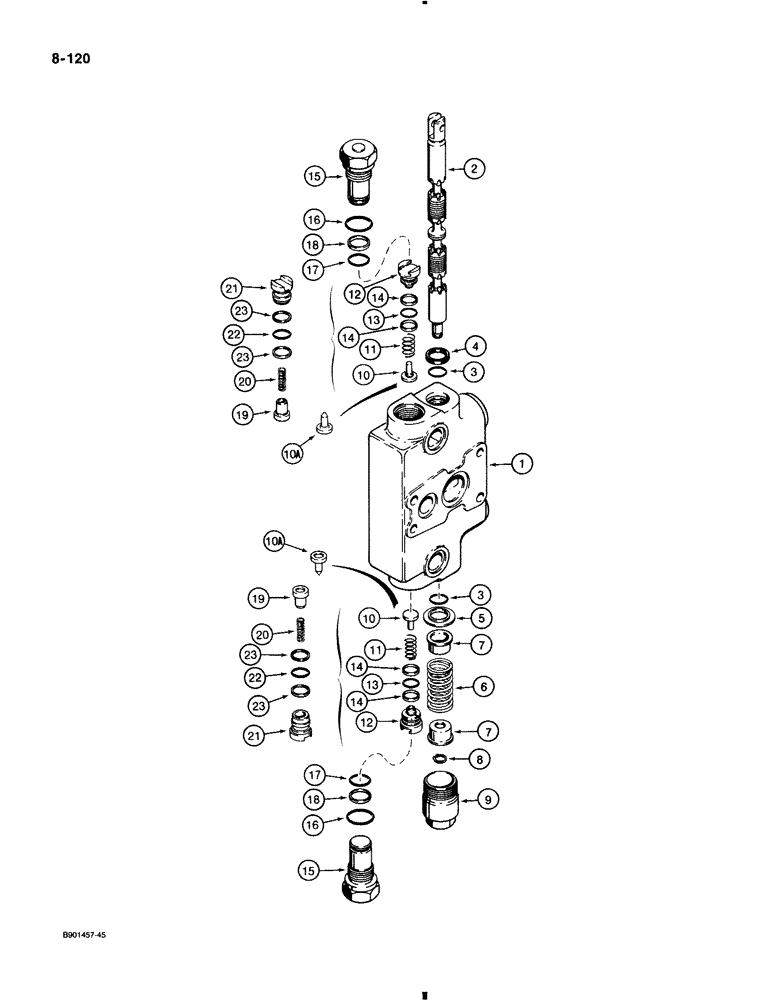

Запчасти Case 580K (8-120) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS

G109968

VALVE

SECTION ASSEMBLY, dipper extension, Includes Ref. 1-14, P/N's G33122, 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING dipper extension section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL dipper extension section

1шт.

3

G108461

O-RING

spool

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G108544

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

G33080

CAP

spool end

1шт.

10

G33081

VALVE POPPET

POPPET flat poppet pin, load check valve, no longer used, order 1346219C2 valve, Ref.19 through 23

2шт.

10a

1343788C1

VALVE POPPET

POPPET pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 19 through 23

2шт.

11

G33573

SPRING

load check valve, no longer used, order 1346219C2 valve, Ref. 19 through 23

2шт.

12

G104062

PLUG

load check valve, no longer used, order 1346219C2 valve, Ref. 19 through 23

2шт.

13

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

14

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

G33122

PLUG,ORB

ASSEMBLY, relief, Includes Ref. 16-18

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG relief

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Plug -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY, load check, hollow poppet pin, Includes Ref. 19-23

2шт.

19

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, Replaces flat and pointed poppets, load check

1шт.

20

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

21

1343708C1

PLUG

load check

1шт.

22

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

23

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

1346105C1

SEAL KIT

KIT seal, Includes Refs. 3, 4, 13, 14, 16, 17, 18, 22 and 23 plus additional O-rings not required for this application

1шт.
