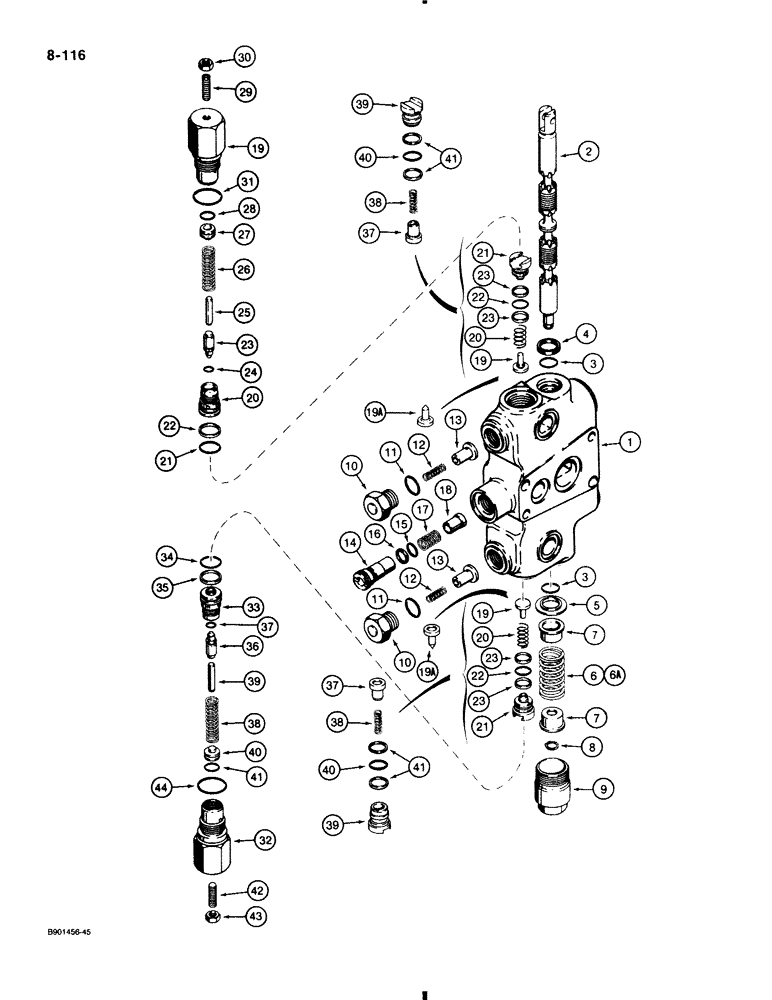

Запчасти Case 580K (8-116) - BACKHOE CONTROL VALVE, SWING SECTIONS (08) - HYDRAULICS

G110710

VALVE

SECTION ASSEMBLY, swing, with heavy swing spring, Ref. 6, with circuit relief and anticavitation valves, used in G110713, 1346082C2, G110714, or 1346083C2 foot swing control valves

1шт.

G110709

LOCK VALVE

SECTION ASSEMBLY, swing, uses Ref. 6A spring, with circuit relief and anticavitation valves, used in G110711, 1346079C2, G110712, or 1346081C2 hand swing control valves, Includes Ref. 1-9, 17-23, and P/N's 1346221C1, 1346222C1, G110253, 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING swing section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

3

G108461

O-RING

spool

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G34463

SPRING

centering, spool, black, 2-1/4" free length, used in G110710 swing section

1шт.

6a

G108544

SPRING

centering, spool, green, 1-15/16" free length, used in G110709 swing section

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

spool end

1шт.

1346221C1

VALVE

ASSEMBLY, Includes Ref. 10-13

2шт.

10

G34937

PLUG

anticavitation valve

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

12

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

1шт.

13

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

1шт.

1346222C1

VALVE

ASSEMBLY, check, Includes Ref. 14-16

1шт.

14

G109964

HOUSING

valve check

1шт.

15

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Valve check housing -015, 90 Duro, .551" ID x .070" Thk

1шт.

16

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup, O-ring

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

17

G109971

SPRING

valve check

1шт.

18

1978068C1

VALVE POPPET

POPPET valve check

1шт.

19

G33081

VALVE POPPET

POPPET flat poppet pin, load check valve, no longer used, order 1346219C2 valve, Ref. 37 through 41

2шт.

19a

1343788C1

VALVE POPPET

POPPET pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 37 through 41

1шт.

20

G33573

SPRING

load check valve, no longer used, order 1346219C2 valve, Ref. 37 through 41

2шт.

21

G104062

PLUG

load check valve, no longer used, order 1346219C2 valve, Ref. 37 through 41

2шт.

22

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

23

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

G110253

VALVE, PRESSURE RELI

VALVE ASSEMBLY, circuit relief swing section, used in productin, order G109448 kit for service, Includes Ref. 24-36

2шт.

Part of service kit, P/N G109448

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

27

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

30

NSS

NOT SOLD SEPARAT

PIN stop, relief

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING circuit relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

34

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, oval point, plated, 5/16" - 24 NF x 1"

1шт.

35

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY, load check, hollow poppet pin, Includes Ref. 37-41

2шт.

37

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, load check, Replaces flat and pointed poppets

1шт.

38

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

39

1343708C1

PLUG

load check

1шт.

40

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

41

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

G109448

KIT

service for G110253 circuit relief valve, kit includes an instruction sheet and G109446 circuit relief valve, Ref. 24 - 36, which is the same as G110253 except with a different pressure setting

1шт.

1346105C1

SEAL KIT

KIT seal, Includes Refs. 3, 4, 11, 16, 22, 23, 26, 27, 36, 40 and 41 plus additional O-rings not required for this application

1шт.
