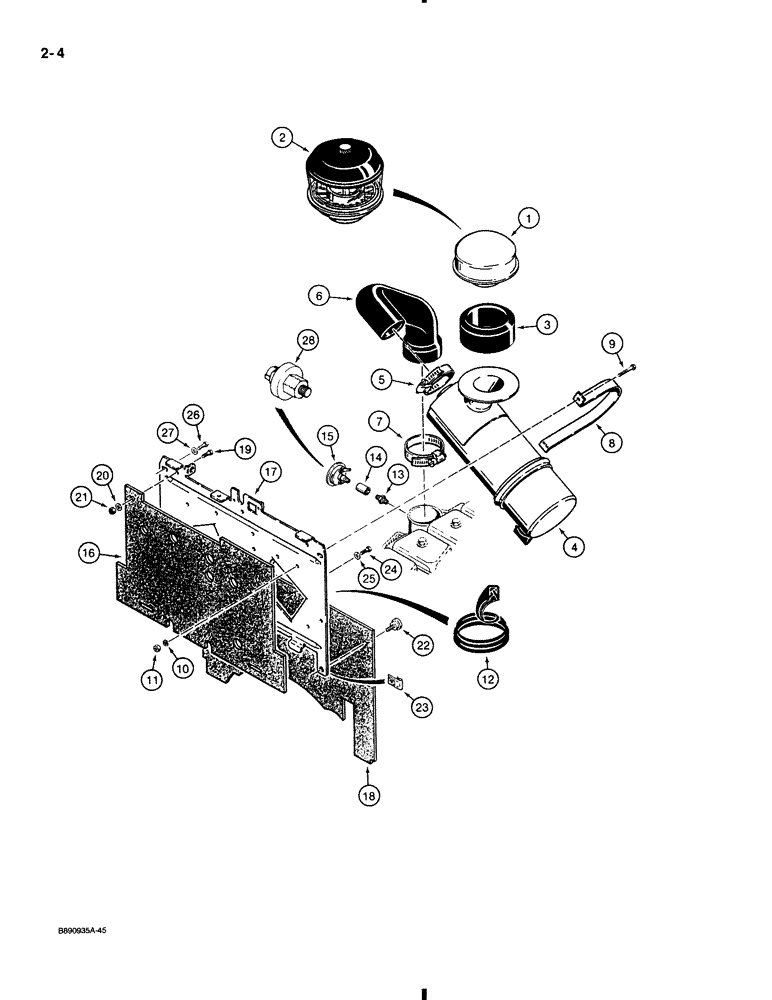

Запчасти Case 580K (2-004) - AIR CLEANER AND AIR INTAKE PARTS, MODELS WITHOUT TURBOCHARGED ENGINE (02) - ENGINE

1

A61277

CAP

air cleaner, standard, if used

1шт.

2

A24391

AIR CLEANER

PRECLEANER ASSEMBLY, air, if used, see Figure 2-010

1шт.

3

D143756

SEAL

air cleaner

1шт.

4

D143874

AIR CLEANER

CLEANER ASSEMBLY, air, engine, see Figure 2-008

1шт.

5

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose to air cleaner

1шт.

6

D135793

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

Air Cleaner 63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

7

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP hose to engine

1шт.

8

D129158

STRAP

air cleaner

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

131-217

LOCK NUT

NUT light hex, self locking, plated, 3/8" - 16 NC

1шт.

12

D43403

LINING

SEAL, 5", 127 mm long, cut from bulk seal, see Parts Substitution List for bulk seal options

2шт.

13

D36264

FITTING

FILTER ASSEMBLY, fitting, air restriction indicator, if used

1шт.

14

221-1335

COUPLING,Pipe, 1/8" NPT

if used Pipe, 1/8" NPT

1шт.

15

L103131

INDICATOR

SENDER air filter restriction indicator, if used

1шт.

16

D140710

PAD

upper, head and noise protection

1шт.

17

D140712

SUPPORT

BRACKET mounting, air cleaner

1шт.

18

D141080

PAD

lower, heat and noise protection

1шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, 5/16" - 18 NC x 1"

3шт.

20

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

3шт.

21

231-1445

NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC

3шт.

22

D138881

KNOB

KNOB clamping, lower pad

2шт.

23

D122908

NUT

J-type, 3/8 - 16 NC

4шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex head, 3/8" - 16 NC x 1"

2шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8"

2шт.

26

187-1926

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

SCREW indented hex washer, self tapping, 3/8 NC x 3/4"

4шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, 3/8"

4шт.

28

1983233C1

RESTRICTION SWITCH

SENDER, air filter restriction indicator switch, Replaces: Ref. 13 - 15 on some models, if used

1шт.
