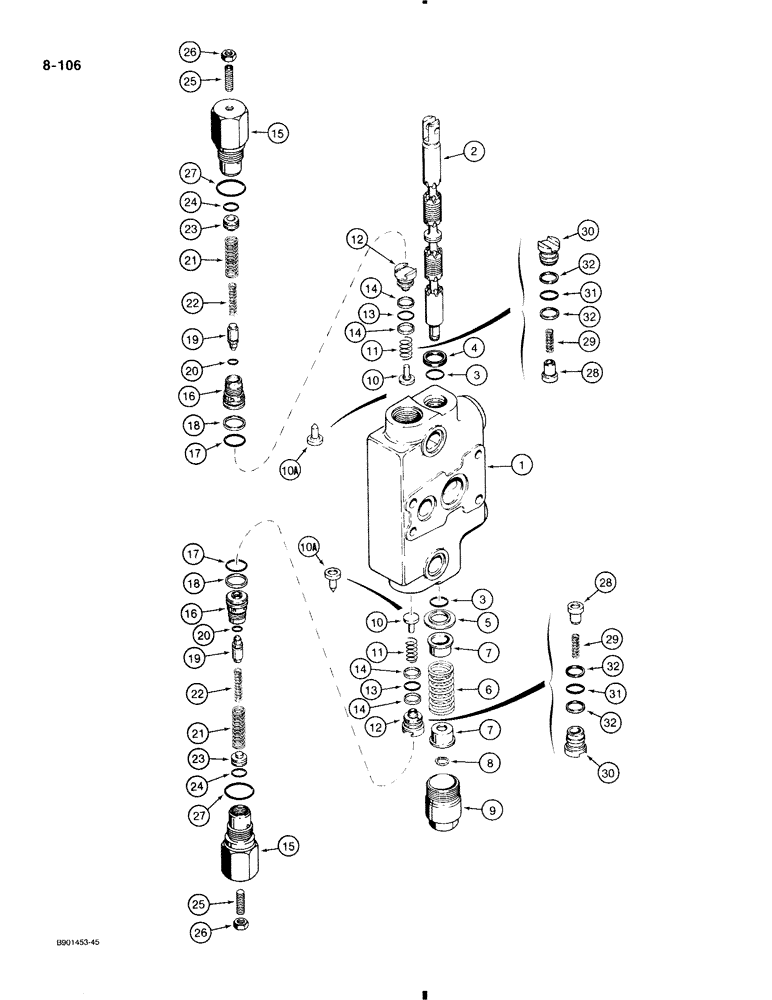

Запчасти Case 580K (8-106) - BACKHOE CONTROL VALVE, BUCKET AND DIPPER SECTIONS (08) - HYDRAULICS

G109570

VALVE

SECTION ASSEMBLY, bucket and dipper, with circuit relief valves, Includes Ref. 1-14 and P/N G109391, P/N 1346105C1

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket and dipper sections

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket and dipper sections

1шт.

3

G108461

O-RING

spool

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G108544

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

G33080

CAP

spool end

1шт.

10

G33081

VALVE POPPET

POPPET flat poppet pin, load check valve, no longer used, order 1346219C2 valve, Ref. 28 through 32

2шт.

10a

1343788C1

VALVE POPPET

POPPET pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 28 through 32

2шт.

11

G33573

SPRING

load check valve, no longer used, order 1346219C2 valve, Ref. 28 through 32

2шт.

12

G104062

PLUG

load check valve, no longer used, order 1346219C2 valve, Ref. 28 through 32

2шт.

13

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

14

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

G109391

VALVE

ASSEMBLY, circuit relief, bucket and dipper sections, used in production, order G109449 kit for service, Includes Ref. 15-27

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

20

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Piston -014, 90 Duro, .489" ID x .070" Thk

1шт.

25

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, oval point, 5/16" NF x 1"

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

G109570

VALVE

SECTION ASSEMBLY, bucket and dipper, with circuit relief valves

2шт.

1346219C2

PACKAGE

VALVE ASSEMBLY, load check, hollow poppet pin, Includes Ref. 28-32

2шт.

28

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, replaces flat and pointed poppets, load check

1шт.

29

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

30

1343708C1

PLUG

load check

1шт.

31

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

1шт.

32

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

1346105C1

SEAL KIT

KIT seal, Includes Refs. 3, 4, 13, 14, 17, 18, 27, 31 and 32 plus additional O-rings not required for this application

1шт.

G109449

KIT

service for G109391 circuit relief valve, kit includes an instruction sheet and G109447 circuit relief valve (items 15-27) which is the same as G109391 except with a different pressure setting

1шт.
