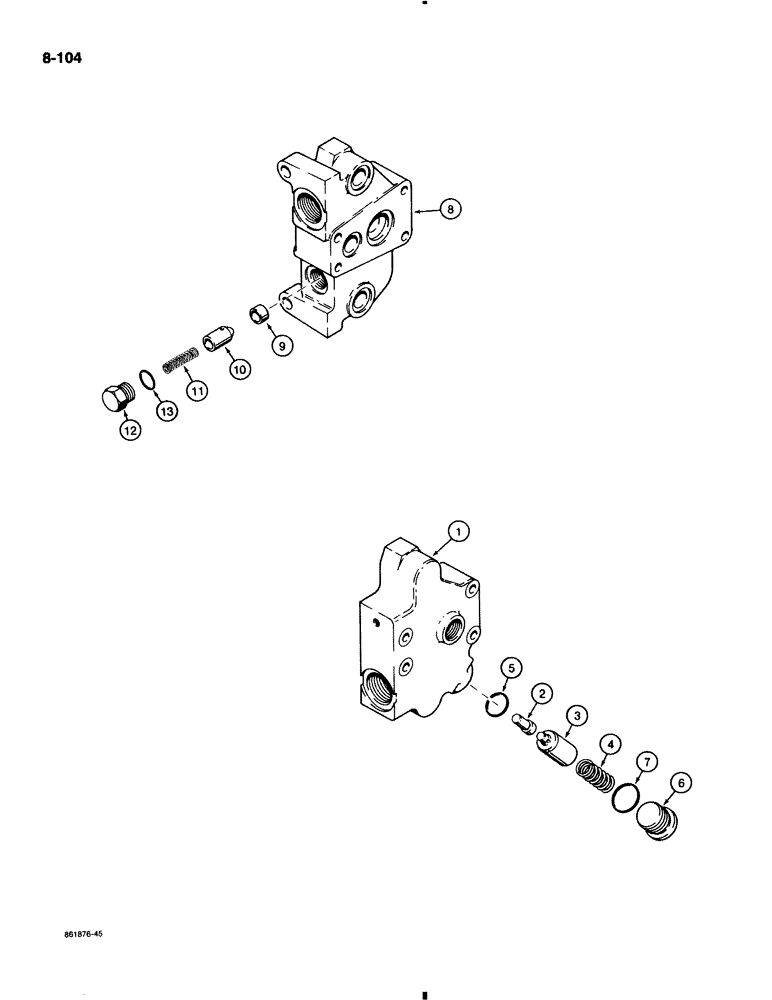

Запчасти Case 580K (8-104) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS, OUTLET SECTION (08) - HYDRAULICS

G109759

VALVE

SECTION ASSEMBLY, outlet, Includes Ref. 1-6

1шт.

1

G109760

HOUSING

MANIFOLD section body

1шт.

2

G108902

PISTON

regeneration sensing

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

regeneration

1шт.

4

G33112

SPRING

regeneration spool

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool, internal -118, 70 Duro, .862" ID x .103" Thk

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

spool, Includes Ref 7 Hex Soc, 1 3/16"-12 ORB

1шт.

7

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

plug

1шт.

G109719

ELEMENT

SECTION ASSEMBLY, inlet, Includes Ref. 8-13

1шт.

8

G109718

HOUSING

MANIFOLD section body, inlet

1шт.

9

G33104

SEAT

check valve poppet, inlet section

1шт.

10

G33105

VALVE POPPET

POPPET check valve, inlet section

1шт.

11

G33106

SPRING

check valve, inlet section

1шт.

12

A39586

PLUG

check valve, inlet section

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug, inlet section

1шт.
