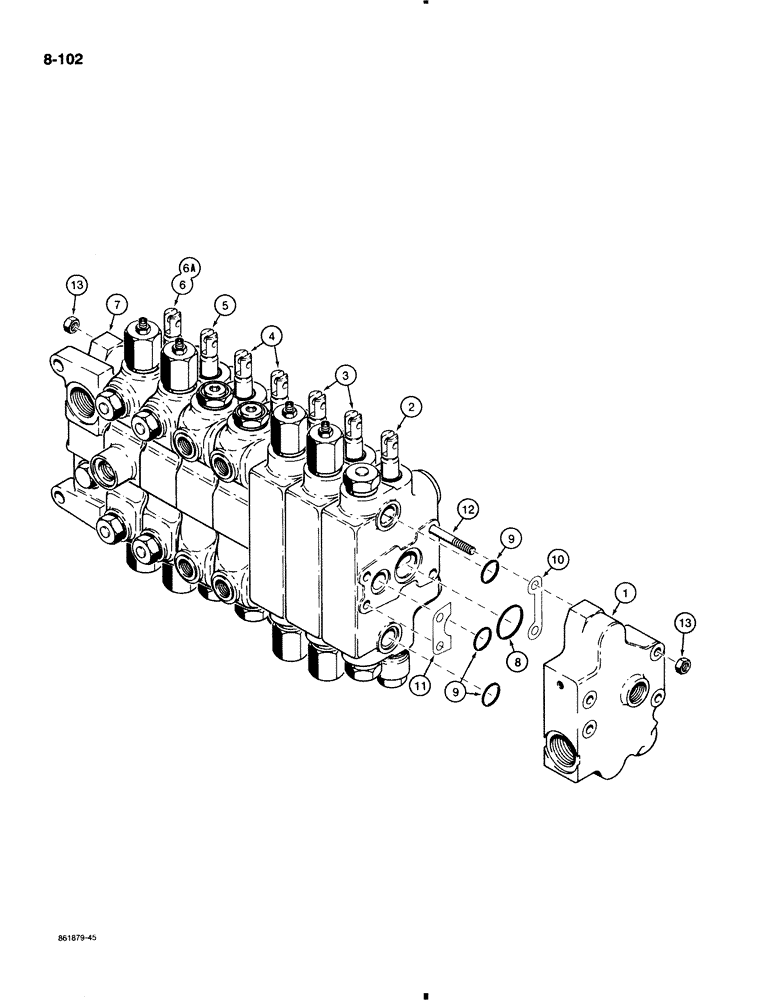

Запчасти Case 580K (8-102) - BACKHOE CONTROL VALVES, MODELS W/ EXTENDABLE DIPPER OR AUX. HYD. FOR OPTIONAL REAR HYD. ATTACHMENTS (08) - HYDRAULICS

G110714

VALVE

ASSEMBLY, backhoe control, 7 spool, foot swing, no longer available, order 1346083C2 valve

1шт.

1346083C2

VALVE, CONTROL

VALVE ASSEMBLY, backhoe control, 7 spool, foot swing

1шт.

G110712

DISTRIBUTOR

VALVE ASSEMBLY, backhoe control, 7 spool, hand swing, no longer available, order 1346081C2 valve

1шт.

1346081C2

VALVE

ASSEMBLY, backhoe control, 7 spool, hand swing, Includes Ref. 1-13

1шт.

1

G109759

VALVE

SECTION ASSEMBLY, outlet, parts list Figure 8-104

1шт.

2

G109968

VALVE

SECTION ASSEMBLY, dipper extension, parts list Figure 8-120

1шт.

3

G109570

VALVE

SECTION ASSEMBLY, bucket and dipper, parts list Figure 8-106 and 8-108

2шт.

4

G109567

ELEMENT

SECTION ASSEMBLY, stabilizer, left hand and right hand, parts list Figure 8-110

2шт.

5

G109571

VALVE

SECTION ASSEMBLY, boom, parts list Figures 8-112 and 8-114

1шт.

6

G110710

VALVE

SECTION ASSEMBLY, swing, with heavy swing spring, used with G110714 or 1346083C2 control valve assembly, parts list Figure 8-116

1шт.

6a

G110709

LOCK VALVE

SECTION ASSEMBLY, swing, used with G110712 or 1346081C2 control valve assembly, parts list Figure 8-116

1шт.

7

G109719

ELEMENT

SECTION ASSEMBLY, inlet, parts list Figure 8-104

1шт.

8

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

8шт.

Part of seal kit, P/N 1346107C1 plus additional O-rings not required in this application

1шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

24шт.

Part of seal kit, P/N 1346107C1 plus additional O-rings not required in this application

1шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

8шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

8шт.

12

G108899

ROD

tie, 3/8" - 16 NC x 18-15/16"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

1346107C1

SEAL KIT

KIT seal, Includes Refs. 8 and 9 plus additional O-rings not required for this application

1шт.
