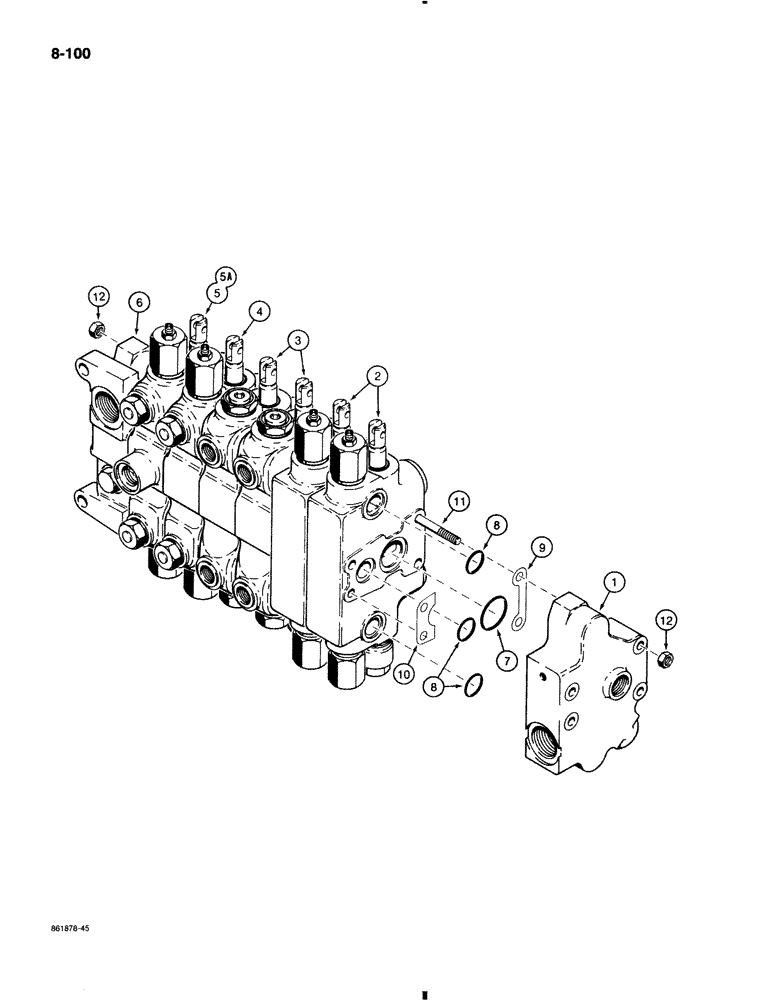

Запчасти Case 580K (8-100) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

G110713

VALVE

ASSEMBLY, backhoe control, 6 spool, foot swing, no longer available, order 1346082C2 valve

1шт.

1346082C2

VALVE, CONTROL

VALVE ASSEMBLY, backhoe control, 6 spool, foot swing

1шт.

G110711

DISTRIBUTOR

VALVE ASSEMBLY, backhoe control, 6 spool, hand swing, no longer available, order 1346079C2 valve

1шт.

1346079C2

VALVE

ASSEMBLY, backhoe control, 6 spool, hand swing, Includes Ref. 1-12

1шт.

1

G109759

VALVE

SECTION ASSEMBLY, outlet, parts list Figure 8-104

1шт.

2

G109570

VALVE

SECTION ASSEMBLY, bucket and dipper, parts list Figure 8-106

2шт.

3

G109567

ELEMENT

SECTION ASSEMBLY, stabilizer, left hand and right hand, parts list Figure 8-110

2шт.

4

G109571

VALVE

SECTION ASSEMBLY, boom, parts list Figures 8-112 and 8-114

1шт.

5

G110710

VALVE

SECTION ASSEMBLY, swing, with heavy swing spring, used with G110713 or 1346082C2 control valve assembly, parts list Figure 8-116

1шт.

5a

G110709

LOCK VALVE

SECTION ASSEMBLY, swing, used with G110711 or 1346079C2 control valve assembly, parts list Figure 8-116

1шт.

6

G109719

ELEMENT

SECTION ASSEMBLY, inlet, parts list Figure 8-104

1шт.

7

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

7шт.

Part of seal kit, P/N 1346107C1 plus additional O-rings not required in this application

1шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

21шт.

Part of seal kit, P/N 1346107C1 plus additional O-rings not required in this application

1шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

7шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

7шт.

11

G108900

STUD

tie, 3/8" - 16 NC x 16-15/16"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

1346107C1

SEAL KIT

KIT seal, Includes Refs. 7 and 8 plus additional O-rings not required in this application

1шт.
