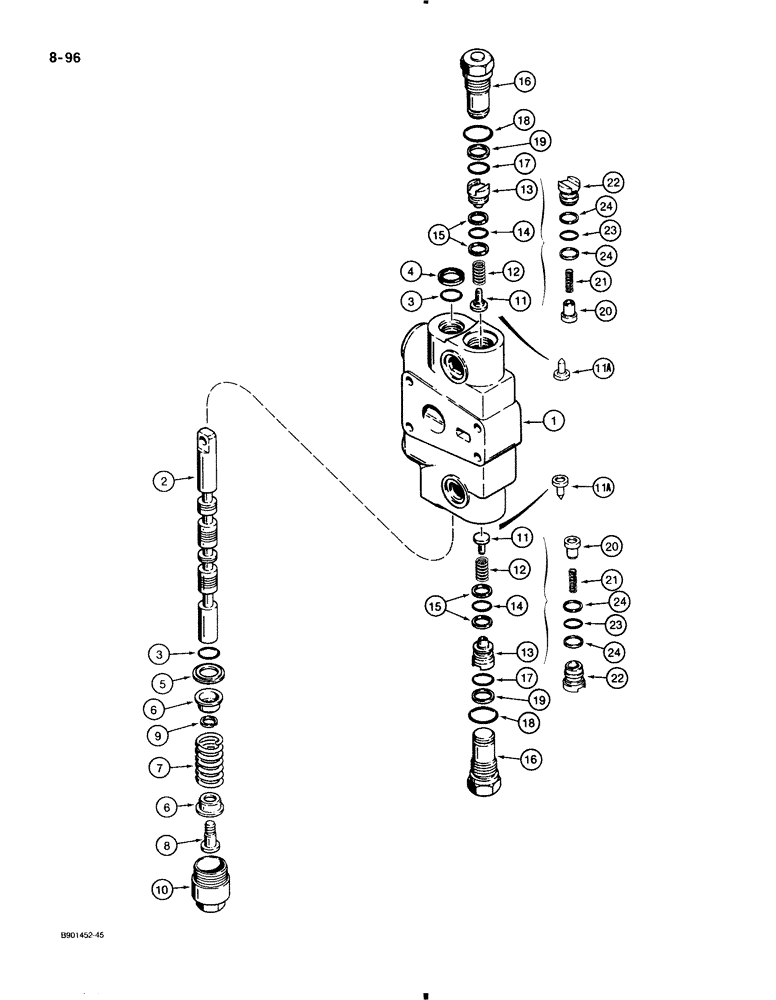

Запчасти Case 580K (8-096) - LOADER CONTROL VALVE, CLAM SECTION (08) - HYDRAULICS

G109640

HYD VALVE SECTION

SECTION ASSEMBLY, clam, G109582 three spool valve only, no longer available, order 1341939C1 section

1шт.

1341939C1

HYD VALVE SECTION

SECTION ASSEMBLY, clam, all three spool valves, Includes Ref. 1-19, P/N 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING clam section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL clam section

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G108544

SPRING

centering, spool, 1-29/32" free length, G109640 clam section

1шт.

7

G34463

SPRING

centering, spool, 2-1/32" free length, 1341939C1 clam section

1шт.

8

G106409

SEAT

SCREW spool end

1шт.

9

G106410

SPACER

screw

1шт.

10

P0033080G

SCREW

spool end, lower

1шт.

11

G33081

VALVE POPPET

POPPET flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 20 - 24

2шт.

11a

1343788C1

VALVE POPPET

POPPET pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 20 - 24

2шт.

12

G33573

SPRING

load check, no longer used, order 1346219C2 valve, Ref. 20 - 24

2шт.

13

G104062

PLUG

load check, no longer used, order 1346219C2 valve, Ref. 20 - 24

2шт.

14

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G33122

PLUG,ORB

ASSEMBLY, load check valve port, Includes Ref. 16-19

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY, load check, hollow poppet pin, Includes Ref. 20-24

2шт.

20

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, Replaces flat and pointed poppets, load check

1шт.

21

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

22

1343708C1

PLUG

load check

1шт.

23

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

1шт.

24

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.
