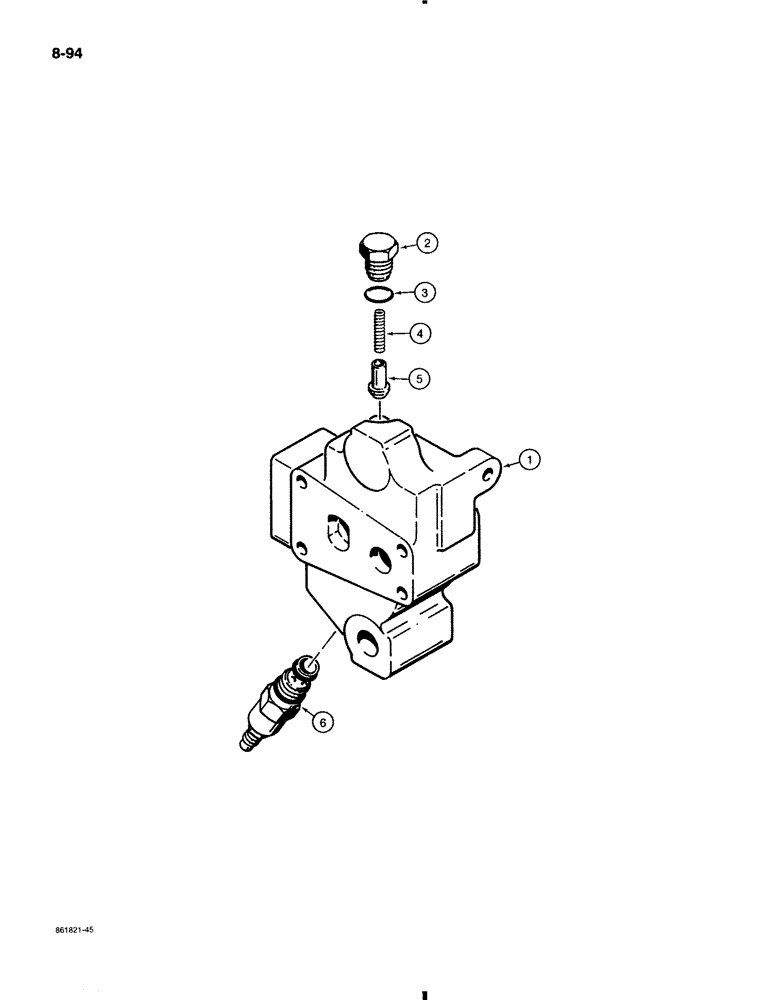

Запчасти Case 580K (8-094) - LOADER CONTROL VALVE, OUTLET SECTION, WITH MAIN RELIEF VALVE (08) - HYDRAULICS

G109637

HYD VALVE SECTION

SECTION ASSEMBLY, G109581, G109582, or 1341944C1 valve, outlet, with main relief valve, no longer available, order 1343699C1 section

1шт.

1343699C1

HYD VALVE SECTION

SECTION ASSEMBLY, all valves, outlet, with main relief valve, Includes Ref. 1-6

1шт.

1

G109643

HOUSING

outlet section

1шт.

2

G109644

PLUG,Hex, 3/4" - 16

load check

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

4

G109646

SPRING,Compression, 6.35mm OD x 38.35mm L

load check

1шт.

5

G109645

VALVE POPPET

POPPET load check

1шт.

6

G110095

VALVE

ASSEMBLY, G109637 outlet section, main relief, cartridge, loader control valve, components parts not serviced separately, cartridge must be serviced complete, external O-rings only may be serviced by ordering G110098 seal kit, see below

1шт.

6

1343688C1

VALVE

ASSEMBLY, 1343699C1 outlet section, main relief, cartridge, loader control valve, components parts not serviced separately, cartridge must be serviced complete, external O-rings only may be serviced by ordering G110098 seal kit, see below

1шт.

G110098

KIT

seal, service for external relief valve cartridge seals only, Includes two O-rings and one backup ring which are not serviced separately

1шт.
