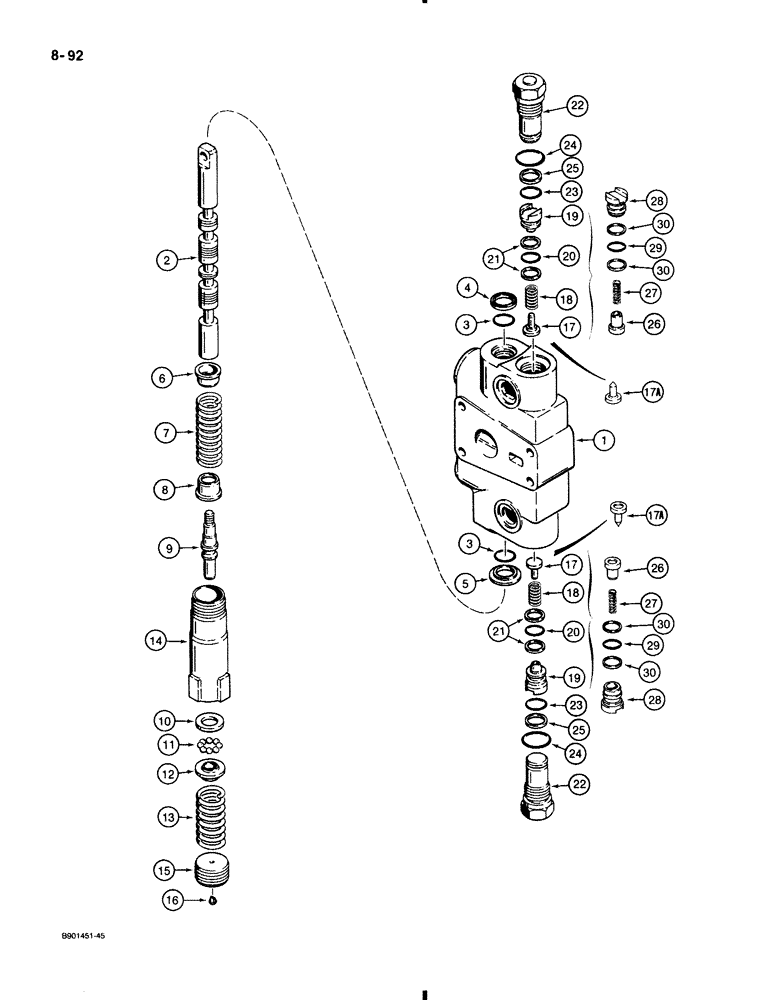

Запчасти Case 580K (8-092) - LOADER CONTROL VALVE, LIFT SECTION, WITH MANUAL DETENT (08) - HYDRAULICS

G109634

HYD VALVE SECTION

SECTION ASSEMBLY, lift, with manual detent, Includes Ref. 1-25, P/N 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL lift section

1шт.

3

G108461

O-RING

spool

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring, upper, small

1шт.

7

G106455

SPRING

centering, spool

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT centering spring, lower, large

1шт.

9

G106396

SHAFT,74.68mm L

detent

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

detent, ball retainer

1шт.

11

211-258

BALL

chrome alloy steel, 9/32", grade 50

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

ball stop

1шт.

13

G109081

SPRING

detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

detent

1шт.

15

G109384

PLUG,3/8" - 18

detent housing

1шт.

16

G107780

VALVE, CHECK

VALVE check, detent plug

1шт.

17

G33081

VALVE POPPET

POPPET flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 26 - 30

2шт.

17a

1343788C1

VALVE POPPET

POPPET pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 26 - 30

2шт.

18

G33573

SPRING

load check, no longer used, order 1346219C2 valve, Ref. 26 - 30

2шт.

19

G104062

PLUG

load check, no longer used, order 1346219C2 valve, Ref. 26 - 30

2шт.

20

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

21

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

G33122

PLUG,ORB

ASSEMBLY, load check valve port, Includes Ref. 22-25

2шт.

22

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY, load check, hollow poppet pin, Includes Ref. 26-30

2шт.

26

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, Replaces flat and pointed poppets, load check

1шт.

27

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

28

1343708C1

PLUG

load check

1шт.

29

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

30

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

1346105C1

SEAL KIT

KIT seal, Includes Refs. 3, 4, 20, 21, 23, 24, 25, 29 and 30 plus additional O-rings not required for this application

1шт.
