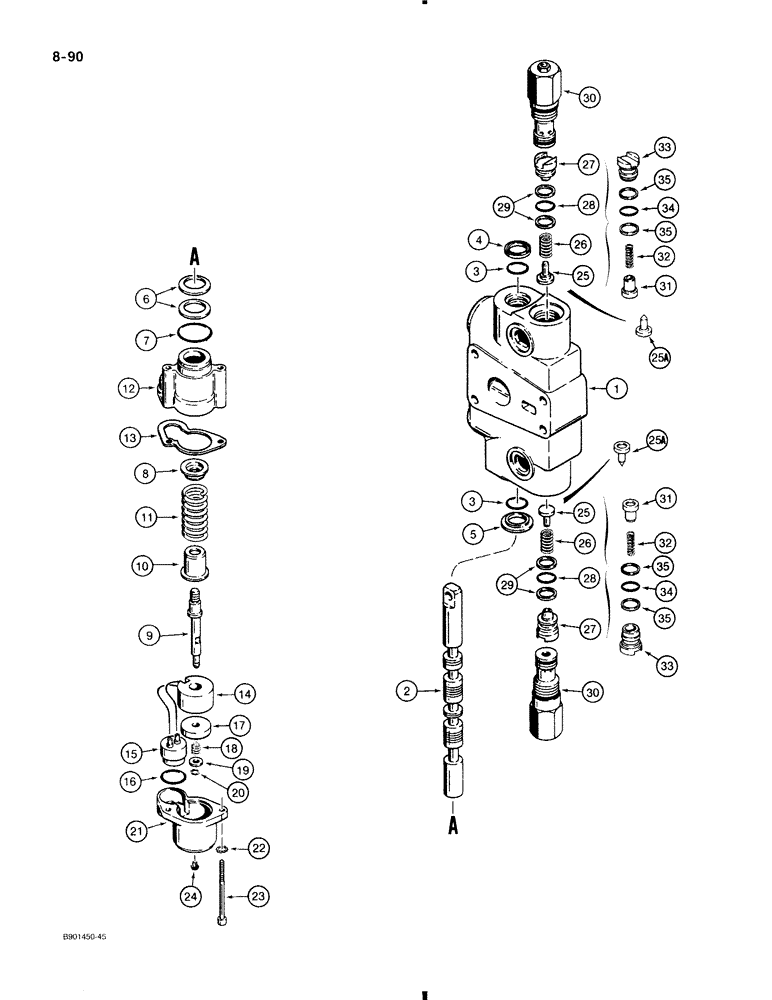

Запчасти Case 580K (8-090) - LOADER CONTROL VALVE, BUCKET SECTION - WITH MAGNETIC DETENT, & CIRCUIT RELIEF VALVE (08) - HYDRAULICS

G109635

HYD VALVE SECTION

SECTION ASSEMBLY, bucket, with magnetic detent and circuit relief valve, Includes Ref. 1-30, P/N 1346219C2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket section

1шт.

3

G108461

O-RING

spool

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G106452

SPRING WASHER

SPRING belleville, washer

2шт.

7

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

8

G106442

SEAT

centering spring, upper

1шт.

9

G107445

SHAFT

magnetic detent

1шт.

10

G106441

SEAT

centering spring, lower

1шт.

11

G109302

SPRING

centering, spool

1шт.

12

G106423

HOUSING

magnetic detent

1шт.

13

G106443

GASKET

magnetic detent housing

1шт.

G110079

COIL ASSY.

COIL ASSEMBLY, magnetic detent, Includes Ref. 14-15

1шт.

14

NSS

NOT SOLD SEPARAT

COIL magnetic detent

1шт.

15

G106450

COIL

CONNECTOR coil

1шт.

16

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk, Coil connector

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

17

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

detent

1шт.

18

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

detent washer

1шт.

19

A50778

WASHER

shaft

1шт.

20

A7111

SNAP RING,#25, Ext

Ring, Snap, , washer retaining #25, Ext

1шт.

21

G106424

CAP

magnetic detent

1шт.

22

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

BOLT hex socket head, special, No. 10 - 24 NC x 2-3/4"

2шт.

24

G107780

VALVE, CHECK

VALVE check, magnetic detent

1шт.

25

G33081

VALVE POPPET

POPPET flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 31 - 35

2шт.

25a

1343788C1

VALVE POPPET

POPPET pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 31 - 35

2шт.

26

G33573

SPRING

load check, no longer used, order 1346219C2 valve, Ref. 31 - 35

2шт.

27

G104062

PLUG

load check, no longer used, order 1346219C2 valve, Ref. 31 - 35

2шт.

28

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

29

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

30

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY, circuit relief, one piece cap, used in production, parts list Figure 8-98, order G109449 circuit relief valve kit for service, see Figure 8-98 for kit

2шт.

1346219C2

PACKAGE

VALVE ASSEMBLY, load check, hollow poppet pin, Includes Ref. 31-35

2шт.

31

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET hollow poppet pin with orifice, replaces flat and pointed poppets

1шт.

32

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

load check

1шт.

33

1343708C1

PLUG

load check

1шт.

34

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

1шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

35

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1 plus additional O-rings not required for this application

1шт.

1346105C1

SEAL KIT

KIT seal, Includes Refs. 3, 4, 16, 28, 29, 34 and 35 plus additional O-rings not required for this application

1шт.
