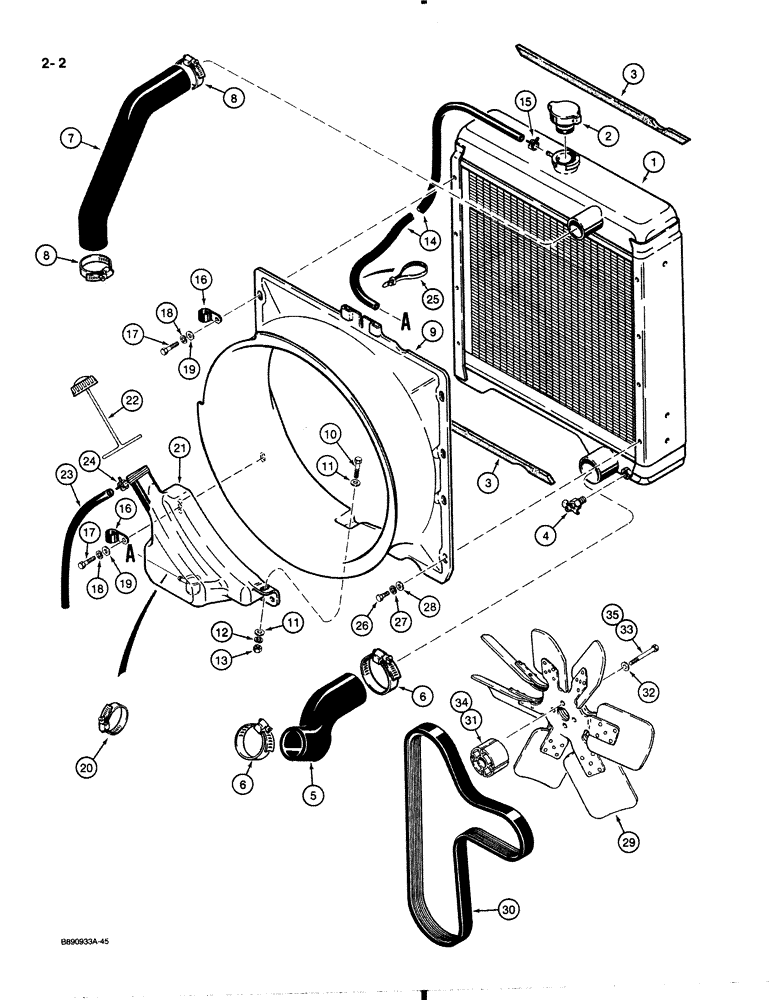

Запчасти Case 580K (2-002) - RADIATOR, FAN AND MOUNTING PARTS (02) - ENGINE

1

A172038

RADIATOR

engine cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A173165

SEALING STRIP

radiator, upper and lower

2шт.

4

217-92

COCK

VALVE drain

1шт.

5

D127775

RADIATOR HOSE,58.00 mm ID x 225.00 mm, SAE 20R4 Class C

58.00 mm ID x 225.00 mm, SAE 20R4 - Class C, Lower

1шт.

6

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose, lower radiator

2шт.

7

D127774

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 Class C

- Upper 45.00 mm ID x 265.00 mm, SAE 20R4 Class C

1шт.

8

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP hose, upper radiator

2шт.

9

A173459

SHROUD

fan, radiator

1шт.

10

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex head, plated, 8 mm - 1.25 x 30 mm, 8.8

1шт.

11

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

825-1108

NUT,Hex, M8, Cl 8

hex, 8 mm - 1.25, plated

1шт.

14

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Radiator to reservoir 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP hose, at radiator

1шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, attaches to radiator fan shroud, Tube

2шт.

17

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex head, plated, 8 mm - 1.25 x 30 mm

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

20

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose, at radiator, lower

1шт.

21

A171805

RESERVOIR

coolant recovery bottle

1шт.

22

A184079

CAP

screw on, tethered, coolant recovery bottle

1шт.

23

A172262

HOSE,7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

- Coolant overflow 7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

1шт.

24

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - coolant overflow hose at reservoir

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

1шт.

26

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm - 1.25 x 16 mm

6шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

28

195-103

WASHER,5/16"

flat, plated, 5/16"

6шт.

29

A184467

FAN

suction, seven blade

1шт.

30

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

31

A184545

SPACER

fan, 49.5 mm long, used with Ref. 33 on models with air conditioning

1шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 3/8", Used with Ref. 33

4шт.

33

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex head, 10 mm - 1.5 x 70 mm, used with Ref. 31

4шт.

34

A190656

SPACER

fan, 26 mm long, used with Ref. 35 on models without air conditioning

1шт.

35

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

hex, 10 mm - 1.5 x 45 mm, Used with Ref. 34

4шт.
