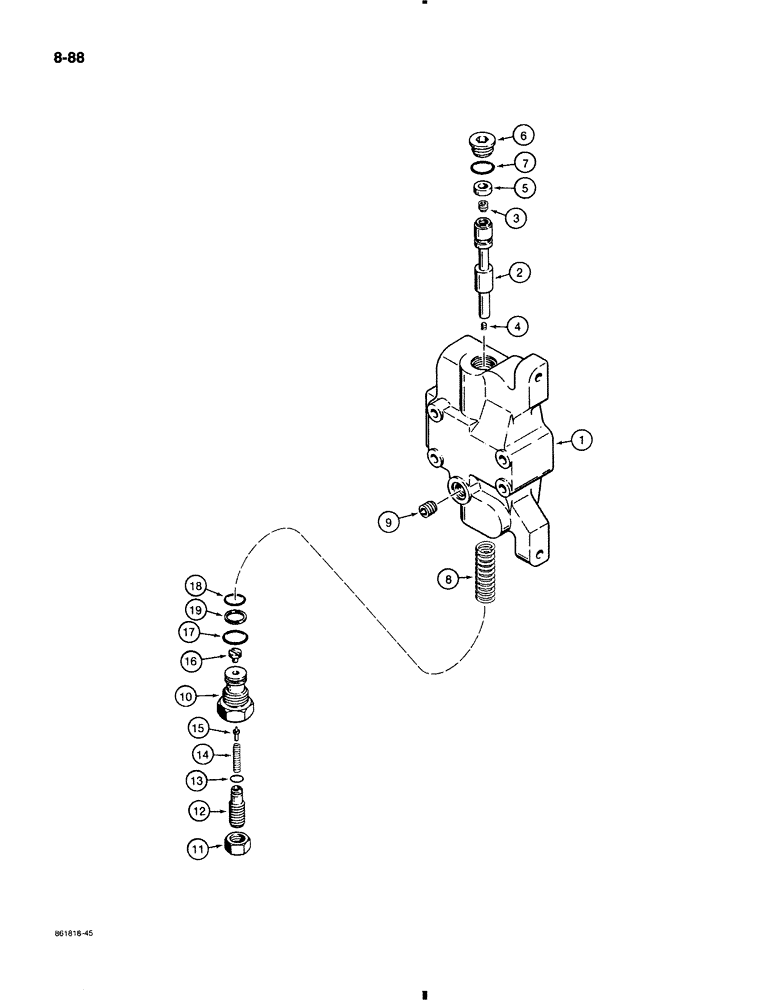

Запчасти Case 580K (8-088) - LOADER CONTROL VALVE, INLET SECTION - WITH STEERING RELIEF VALVE (08) - HYDRAULICS

G110551

HYD VALVE SECTION

SECTION ASSEMBLY, inlet, with steering relief valve, Includes Ref. 1-9, P/N G108868

1шт.

1

G109632

VALVE

HOUSING inlet section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL inlet section

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG orifice

1шт.

4

178-424

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, flat point, 1/4" - 20 NC x 1/4"

1шт.

5

NSS

NOT SOLD SEPARAT

SPACER plug, not required

1шт.

6

86625138

PLUG,7/18" - 14

Includes Ref. 7 Hex Soc, 7/8"-14 ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

8

G108877

SPRING

centering, spool

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG orifice, steering port, not required

1шт.

G108868

VALVE PRESSURE RELIE

VALVE ASSEMBLY, relief, steering, Includes Ref. 10-19

1шт.

10

G108866

HOUSING,1-1/16" - 12

steering relief valve

1шт.

11

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT hex, jam, 5/8" - 18 NF

1шт.

12

G108867

PLUG

adjusting, steering relief

1шт.

13

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

adjusting plug

1шт.

14

G108136

SPRING

steering relief

1шт.

15

G108556

VALVE POPPET

POPPET steering relief

1шт.

16

G108869

SEAT

poppet, steering relief

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

18

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

housing, small

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring, housing

1шт.
