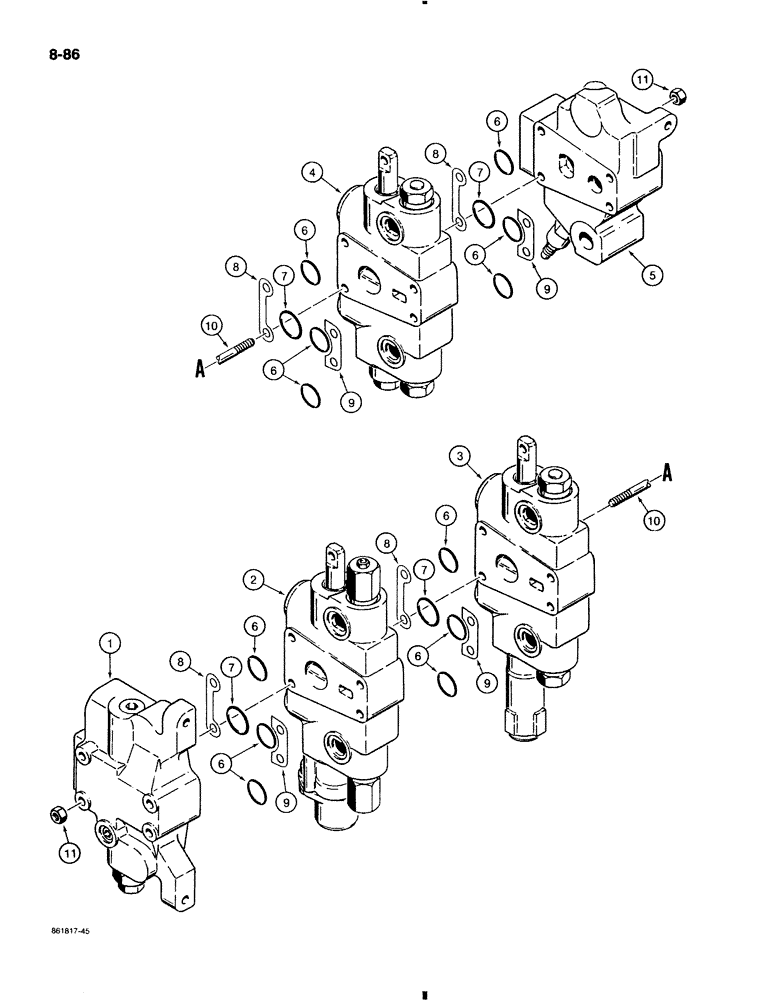

Запчасти Case 580K (8-086) - LOADER CONTROL VALVE, THREE SPOOL (08) - HYDRAULICS

G109582

VALVE, CONTROL

VALVE ASSEMBLY, control, loader, three spool, no longer available, order 1343698C2 valve

1шт.

1341944C1

VALVE

ASSEMBLY, control, loader, three spool, no longer available, order 1343698C2 valve

1шт.

1343698C2

VALVE, CONTROL

VALVE ASSEMBLY, control, loader, three spool, Includes Ref. 1-11

1шт.

1

G110551

HYD VALVE SECTION

SECTION ASSEMBLY, inlet, with steering relief valve, parts list Figure 8-88

1шт.

2

G109635

HYD VALVE SECTION

SECTION ASSEMBLY, bucket, with magnetic detent and circuit relief valve, parts list Figure 8-90

1шт.

3

G109634

HYD VALVE SECTION

SECTION ASSEMBLY, lift, with manual detent, parts list Figure 8-92

1шт.

4

G109640

HYD VALVE SECTION

SECTION ASSEMBLY, clam, G109582 valve, parts list Figure 8-96, no longer available, order 1341939C1 section

1шт.

4

1341939C1

HYD VALVE SECTION

SECTION ASSEMBLY, clam, all valves, parts list Figure 8-96

1шт.

5

G109637

HYD VALVE SECTION

SECTION ASSEMBLY, outlet, G109582 or 1341944C1 valve, with main relief valve, parts list Figure 8-94, no longer available, order 1343699C1 section

1шт.

5

1343699C1

HYD VALVE SECTION

SECTION ASSEMBLY, outlet, all valves, with main relief valve, parts list Figure 8-94

1шт.

6

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

12шт.

7

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

4шт.

8

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

4шт.

9

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

4шт.

10

G108805

STUD

tie, 3/8" - 16 NC x 11-3/4"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
