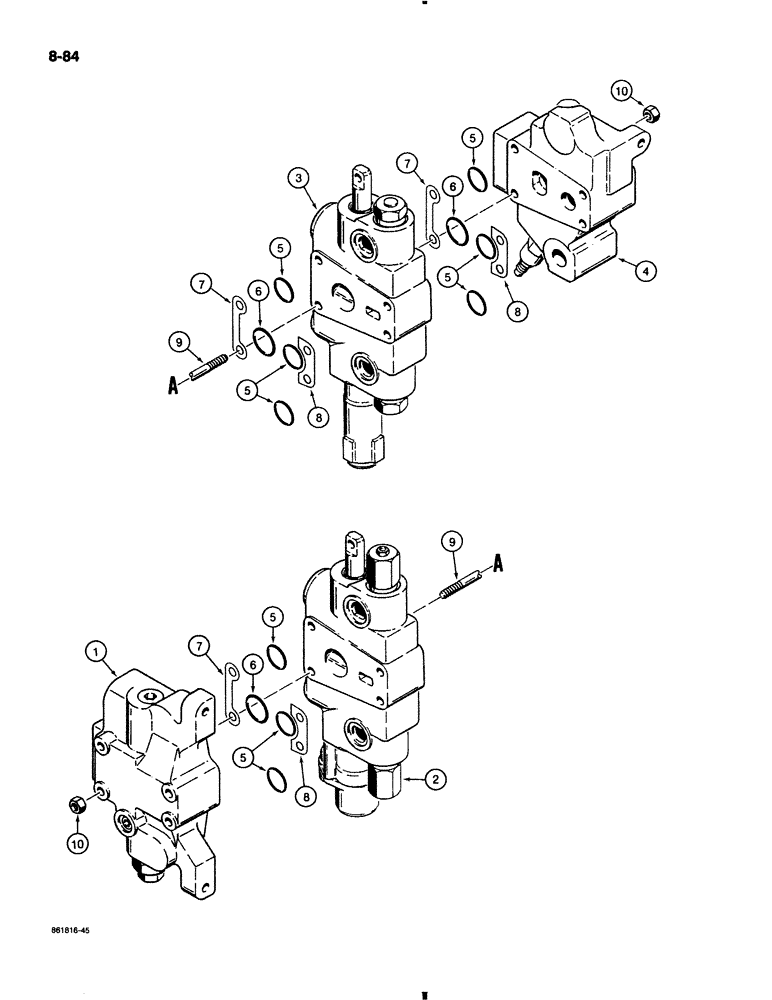

Запчасти Case 580K (8-084) - LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS

G109581

VALVE, CONTROL

VALVE ASSEMBLY, control, loader, two spool, no longer available, order 1343697C2 valve

1шт.

1343697C2

VALVE

ASSEMBLY, control, loader, two spool, Includes Ref. 1-10

1шт.

1

G110551

HYD VALVE SECTION

SECTION ASSEMBLY, inlet, with steering relief valve, parts list Figure 8-88

1шт.

2

G109635

HYD VALVE SECTION

SECTION ASSEMBLY, bucket, with magnetic detent and circuit relief valve, parts list Figure 8-90

1шт.

3

G109634

HYD VALVE SECTION

SECTION ASSEMBLY, lift, with manual detent, parts list Figure 8-92

1шт.

4

G109637

HYD VALVE SECTION

SECTION ASSEMBLY, G109581 valve, outlet, with main relief valve, parts list Figure 8-94, no longer available, order 1343699C1 section

1шт.

4

1343699C1

HYD VALVE SECTION

SECTION ASSEMBLY, G109581 or 1343697C2 valve, outlet, with main relief, parts list Figure 8-94

1шт.

5

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

9шт.

6

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

3шт.

7

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

3шт.

8

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

3шт.

9

G108870

STUD,246.2mm L

tie, 3/8" - 16 NC x 9-3/4"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
