(8-082) - SELECTOR VALVE - AUXILIARY REMOTE HYDRAULICS, FOR HAND HELD ATTACHMENTS

Запчасти Case 580K (8-082) - SELECTOR VALVE - AUXILIARY REMOTE HYDRAULICS, FOR HAND HELD ATTACHMENTS (08) - HYDRAULICS

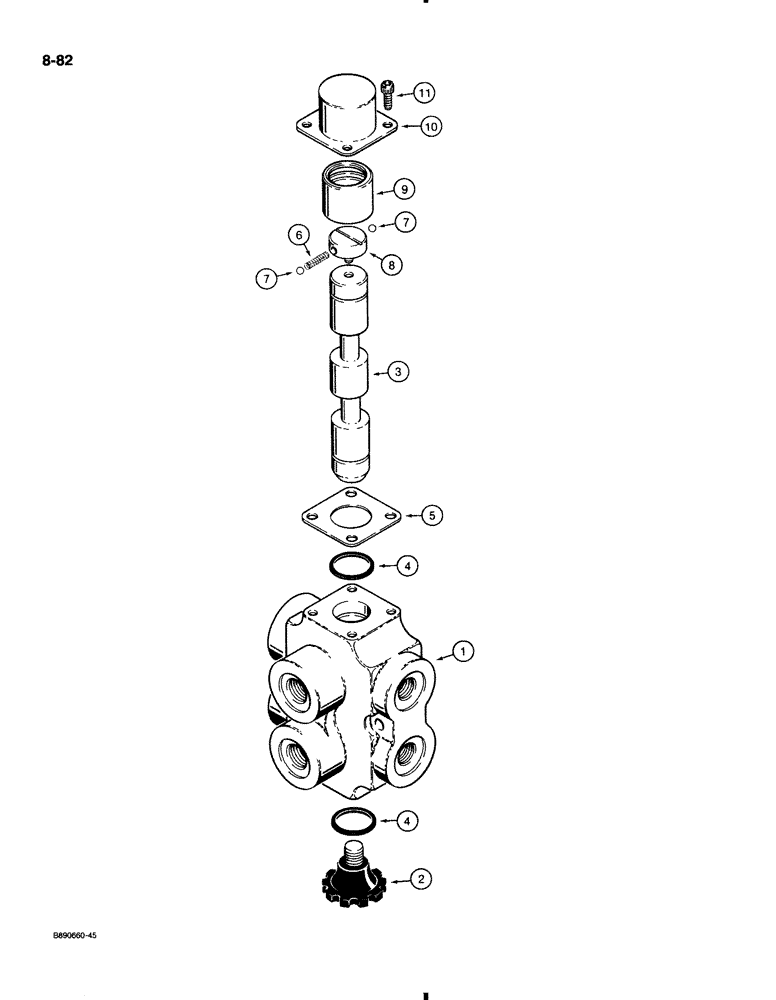

Схема запчастей Case 580K - (8-082) - SELECTOR VALVE - AUXILIARY REMOTE HYDRAULICS, FOR HAND HELD ATTACHMENTS (08) - HYDRAULICS
6
10
1
11
4
3
7
4
9
5
8
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D142933

SELECTOR

VALVE ASSEMBLY, selector, auxiliary remote hydraulics for hand held attachments, Includes Ref. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING selector valve

1шт.

2

T36607

BALL KNOB

KNOB control, selector valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL selector valve

1шт.

4

R24866

RING

SEAL square section, upper and lower spool

2шт.

5

D54584

STOP

PLATE spacer

1шт.

6

851146C1

SPRING

detent

1шт.

7

211-357

BALL,1/4" Dia

carbon steel, 1/4", grade 200

2шт.

8

D145905

RETAINER

detent

1шт.

9

D145906

SLEEVE

detent, two position

1шт.

10

D54582

CYLINDER END CAP

CAP end

1шт.

11

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT hex socket head, 1/4" NC x 1/2"

4шт.
