(8-080) - EQUIPMENT HYDRAULIC PUMP

Запчасти Case 580K (8-080) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

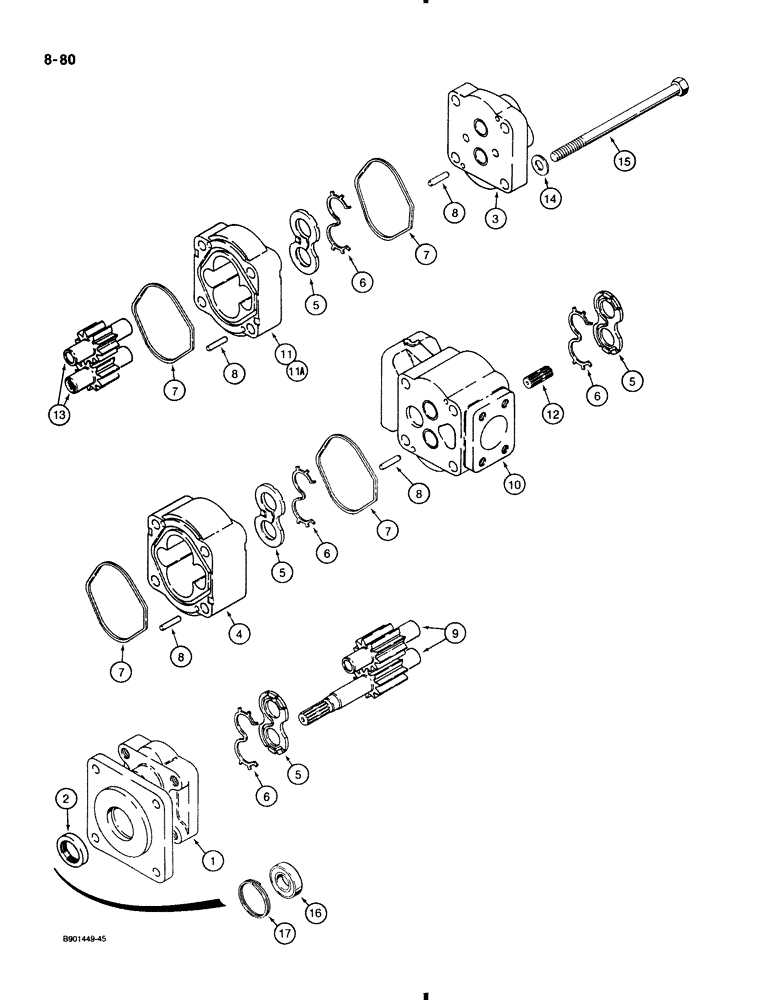

Схема запчастей Case 580K - (8-080) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS
5
3
7
11
7
13
4
9
8
10
8
11a
14
15
7
6
17
5
5
6
6
12
6
16
5
1
2
8
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D140801

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulic equipment, if used, Serial Range: JJG0020000-JJG0020011

1шт.

D140801 = 3249120108

1шт.

D140801R

REMAN-HYD PUMP

1шт.

D140801C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D146608

PUMP

ASSEMBLY, hydraulic equipment, no longer used, order D149283 pump, Serial Range: JJG0020012-JJG0032637

1шт.

D146608 = 3249120157

1шт.

D149283R

REMAN-HYD PUMP

1шт.

D149283C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D149283

PUMP, HYDRAULIC

PUMP ASSEMBLY, hydraulilc equipment, if used, Includes Ref. 1-17, Start Serial: JJG0032638

1шт.

D149283 = 3249120175

1шт.

D149283R

REMAN-HYD PUMP

1шт.

D149283C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER shaft end, Includes a bushing which is not serviced separately

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

shaft

1шт.

3

NSS

NOT SOLD SEPARAT

COVER closed end, Includes a bushing which is not serviced separately

1шт.

4

N14115

HOUSING

gear, shaft end

1шт.

5

N13582

THRUST PLATE

PLATE, THRUST, Wear, housing

4шт.

6

N13583

SEAL

RETAINER wear plate

4шт.

7

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

housing, large

4шт.

8

W16323

DOWEL

PIN dowel, gear housing

8шт.

9

NSS

NOT SOLD SEPARAT

SET gear, shaft end

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING center, with ports, Includes bushings which are not serviced separately

1шт.

11

N14116

HOUSING

gear, closed end, D140801 pump

1шт.

11a

D147209

HOUSING

gear, closed end, D146608 or D149283 pump

1шт.

12

N13586

SHAFT

connecting

1шт.

13

NSS

NOT SOLD SEPARAT

SET gear, closed end

1шт.

14

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

flat, hardened, 5/8"

4шт.

15

26-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

hex head, 5/8" - 11 NC x 9", grade 8

4шт.

16

18-970

BALL BEARING

BEARING ball, sealed, D149283 pump, Replaced 3139296R1

1шт.

17

71466

SNAP RING,#206, 2.190", Int, Spiral

RING retaining, spring lock, D149283 pump

1шт.
