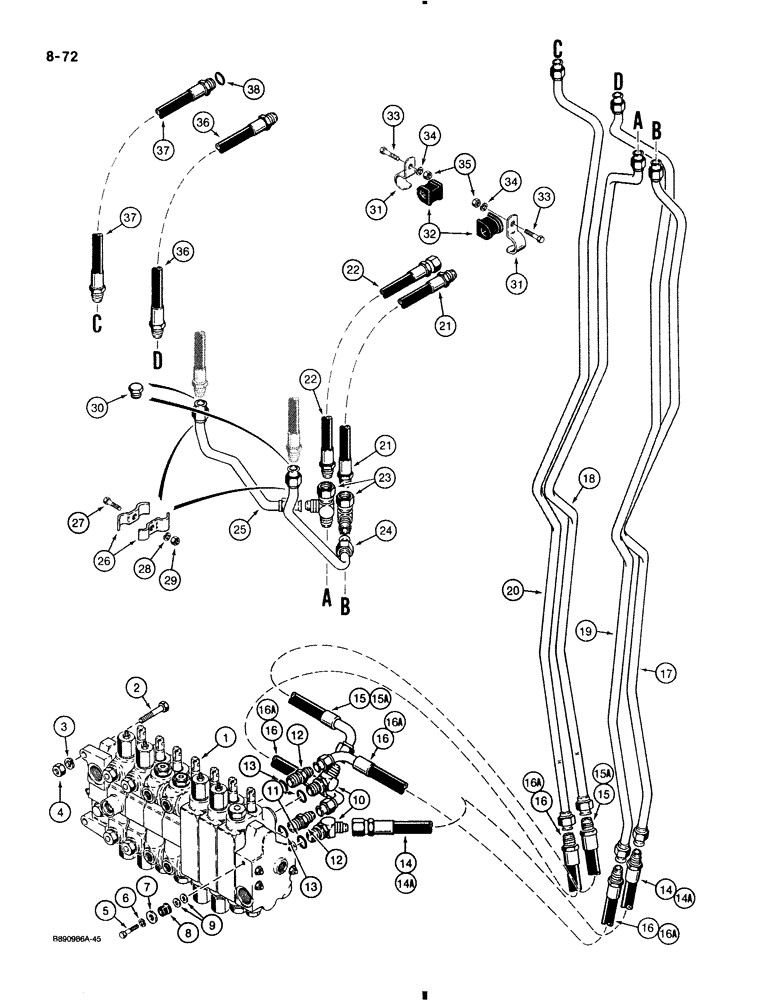

Запчасти Case 580K (8-072) - SPECIAL PARTS USED ON MODELS W/ AUX. HYD., FOR OPTIONAL REAR HYD. ATTACHMENTS W/ EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, 7 spool, parts list Figure 8-102, used on models with extendahoe dipper or models with auxiliary hydraulics, for mounting bracket see Figure 8-30

1шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, auxiliary section ports, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section upper and lower ports, Includes Ref. 13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

auxiliary section lower port to boom auxiliary right hand tube, 1350 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Fig. 8-56. For rubber hose clamps at swing tower, see Fig. 8-60.

1шт.

14a

D143317

HOSE,15.88mm ID x 1350mm L

auxiliary section lower port to boom auxiliary right hand tube, 1350 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Fig. 8-56. For rubber hose clamps at swing tower, see Fig. 8-60.

1шт.

15

D140117

HOSE,15.88mm ID x 1900mm L

auxiliary section upper port to boom auxiliary left hand tube, 1900 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Fig. 8-56. For rubber hose clamps at swing tower, see Fig. 8-60.

1шт.

15a

D143310

HOSE,15.88mm ID x 1900mm L

auxiliary section upper port to boom auxiliary left hand tube, 1900 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Fig. 8-56. For rubber hose clamps at swing tower, see Fig. 8-60.

1шт.

16

D140152

HOSE,15.88mm ID x 1525mm L

bucket section upper and lower ports, 1525 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

2шт.

For metal hose clamps at swing tower, see Fig. 8-56. For rubber hose clamps at swing tower, see Fig. 8-60.

1шт.

16a

D143311

HOSE,15.88mm ID x 1525mm L

bucket section upper and lower ports, 1525 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

2шт.

For metal hose clamps at swing tower, see Fig. 8-56. For rubber hose clamps at swing tower, see Fig. 8-60.

1шт.

17

D149724

TUBE

right hand side of boom to rear attachment hose

1шт.

18

D149722

TUBE

left hand side of boom to rear attachment hose

1шт.

19

D138057

TUBE

right hand side of boom to bucket cylinder rod end hose

1шт.

20

D138059

TUBE

left hand side of boom to bucket cylinder closed end hose

1шт.

21

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

to extendable dipper cylinder rod end tube, 850 mm long

1шт.

22

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

to extendable dipper cylinder closed end, 700 mm long

1шт.

23

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adjustable 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

24

D140322

PIPE

TUBE right hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

25

D140324

PIPE

TUBE left hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

26

D127681

CLAMP

tubes

4шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/4"

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

218-777

PLUG,1 1/16"-12, 37 Degree

hex head, tube, not required when rear attachment hoses are installed

2шт.

31

D68846

CLAMP

hose

4шт.

32

D67297

BLOCK

INSULATOR 1"

4шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8" NC x 1-1/4"

4шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

4шт.

36

D143894

HOSE,15.88mm ID x 2057mm L

to bucket cylinder rod end tube, 2057 mm long

1шт.

37

D143895

HOSE,15.88mm ID x 2027mm L

to closed end of bucket cylinder, 2027 mm long, Includes Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, D143895 hose

1шт.
