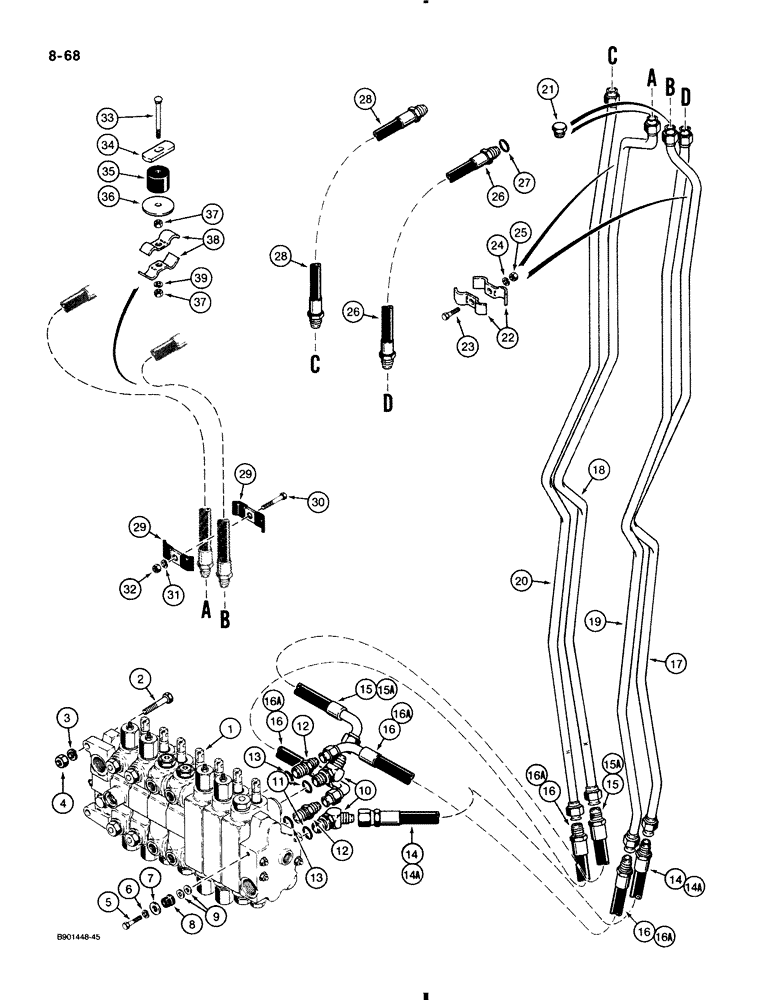

Запчасти Case 580K (8-068) - SPECIAL PARTS USED ON MODELS W/ AUX. HYD. FOR OPTIONAL REAR HYD. ATTACHMENTS W/O EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, 7-spool, parts list Figure 8-102, used on models with extendable dipper or models with auxiliary hydraulics, for mounting bracket see Figure 8-30

1шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, auxiliary section upper and lower ports, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section upper and lower ports, Includes Ref. 13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

auxiliary section lower port to boom auxiliary right hand tube, 1350 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-48. For rubber hose clamps at swing tower, see Figure 8-52.

1шт.

14a

D143317

HOSE,15.88mm ID x 1350mm L

auxiliary section lower port to boom auxiliary right hand tube, 1350 mm long, includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-48. For rubber hose clamps at swing tower, see Figure 8-52.

1шт.

15

D140117

HOSE,15.88mm ID x 1900mm L

auxiliary section upper port to boom auxiliary left hand tube, 1900 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-48. For rubber hose clamps at swing tower, see Figure 8-52.

1шт.

15a

D143310

HOSE,15.88mm ID x 1900mm L

auxiliary section upper port to boom auxiliary left-hand tube, 1900 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-48. For rubber hose clamps at swing tower, see Figure 8-52.

1шт.

16

D140152

HOSE,15.88mm ID x 1525mm L

bucket section upper and lower ports, 1525 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-48. For rubber hose clamps at swing tower, see Figure 8-52.

1шт.

16a

D143311

HOSE,15.88mm ID x 1525mm L

bucket section upper and lower ports, 1525 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-48. For rubber hose clamps at swing tower, see Figure 8-52.

1шт.

17

D147791

PIPE

TUBE right hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

18

D147789

PIPE

TUBE left hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment.

1шт.

19

D140156

TUBE

right hand side of boom to bucket cylinder closed end hose

1шт.

20

D140154

TUBE

left hand side of boom to bucket cylinder rod end hose

1шт.

21

218-777

PLUG,1 1/16"-12, 37 Degree

hex, tube, not required when rear attachment hoses are installed

2шт.

22

D127681

CLAMP

boom tubes

4шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

D140303

HOSE ASSY.

HOSE to closed end of bucket cylinder, 875 mm long, Includes Ref. 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

28

D140302

HOSE

to rod end of bucket cylinder, 875 mm long

1шт.

29

D40236

CLAMP

hose

2шт.

30

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

To rod end of bucket cylinder Hex, 3/8"-16 x 2", G5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , To rod end of bucket cylinder 3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , To rod end of bucket cylinder 3/8"-16, G5

1шт.

33

27455R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

BOLT carriage, to rod end of bucket cylinder, 3/8" - 16 NC x 3-1/2"

1шт.

34

D140188

ANGLE

PLATE anchor, mounts hoses to underside of dipper frame

1шт.

35

D140187

SPACER

hose

1шт.

36

D140189

WASHER

special

1шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , To rod end of bucket cylinder 3/8"-16, G5

2шт.

38

D127681

CLAMP

hose

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
