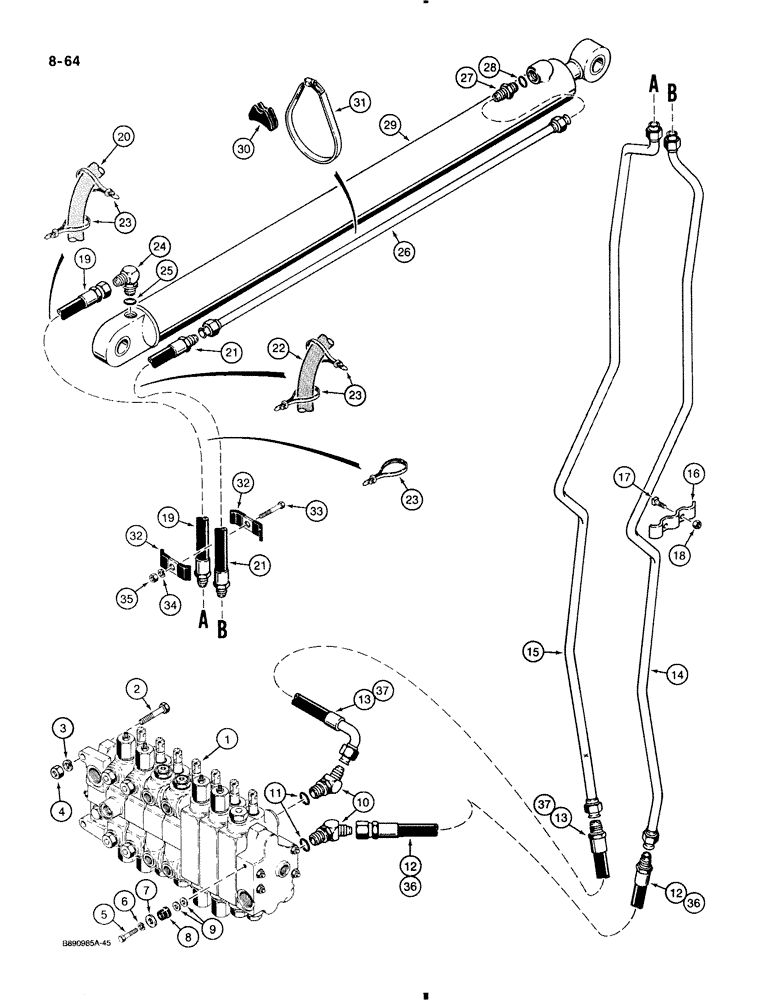

Запчасти Case 580K (8-064) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, extendahoe, for correct assembly and components see Figure 8-102, for mounting bracket see Figure 8-310

1шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, extendahoe dipper section upper and lower ports, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

D140130

HOSE,15.88mm ID x 1350mm L

extendable section lower port to boom, extendahoe dipper right hand tube, 1350 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-40.

1шт.

13

D140117

HOSE,15.88mm ID x 1900mm L

extendable section upper port to boom, extendahoe dipper left hand tube, 1900 mm long, Includes three metal hose sleeves, used on models with metal hose clamps at swing tower

1шт.

For metal hose clamps at swing tower, see Figure 8-40.

1шт.

14

D147791

PIPE

TUBE right hand side of boom, to extendahoe dipper cylinder rod end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 8-72.

1шт.

15

D147789

PIPE

TUBE left hand side of boom, to extendahoe dipper cylinder closed end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 8-72.

1шт.

16

D143421

CLAMP

boom tubes, plated

4шт.

17

117-205

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8" - 16 NC x 1", grade 2

8шт.

18

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

8шт.

19

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

extendahoe dipper cylinder closed end, 700 mm long

1шт.

20

D134729

SLEEVE

hose guard, cylinder closed end hose

1шт.

21

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

extendahoe dipper cylinder rod end, 850 mm long

1шт.

22

D134728

TUBE

SLEEVE hose guard, cylinder rod end hose

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

5шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, cylinder closed end, Incl. Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

26

D140706

PIPE

TUBE extendahoe dipper cylinder rod end

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, extendahoe dipper cylinder rod end, Includes Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY, extendahoe dipper, for correct assembly and components, see Figure 8-158

1шт.

30

D38648

BLOCK

INSULATOR rubber

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube to cylinder

1шт.

32

D40236

CLAMP

hose

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

D143317

HOSE,15.88mm ID x 1350mm L

extendahoe section lower port to boom, extendahoe dipper right hand tube, 1350 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For rubber hose clamps at swing tower, see Fig. 8-44.

1шт.

37

D143310

HOSE,15.88mm ID x 1900mm L

extendahoe section upper port to boom, extendahoe dipper left hand tube, 1900 mm long, Includes one metal hose sleeve, used on models with rubber hose clamps at swing tower

1шт.

For rubber hose clamps at swing tower, see Fig. 8-44.

1шт.
