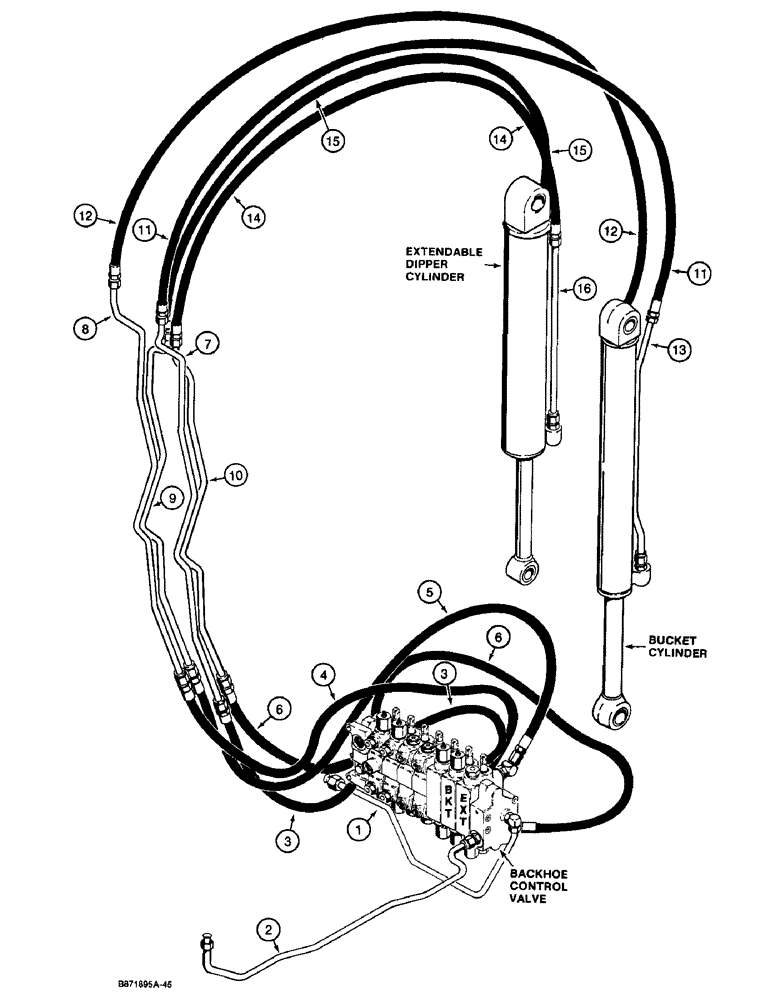

Запчасти Case 580K (1-020) - PICTORIAL INDEX, DEMOUNTABLE AND INTEGRAL BACKHOE HYDRAULICS, EXTENDABLE DIPPER (00) - PICTORIAL INDEX

1

Swing sequence valve drain tube, Figure 8-32

1шт.

2

Backhoe return to filter tube, Figure 8-6

1шт.

3

Hose at upper port of backhoe control valve bucket section to right hand boom tube, Figure 8-56, 8-60

1шт.

4

Hose at lower port of backhoe control valve bucket section to left hand boom tube, Figure 8-56, 8-60

1шт.

5

Hose at upper port of backhoe control valve extendable dipper section to left hand boom tube, Figure 8-64, 8-66

1шт.

6

Hose at lower port of backhoe control valve extendable dipper section to right hand boom tube, Figure 8-64, 8-66

1шт.

7

Tube at right hand side of boom to bucket cylinder rod end hose, Figure 8-56, 8-60

1шт.

8

Tube at left hand side of boom to bucket cylinder closed end hose, Figure 8-56, 8-60

1шт.

9

Tube at left hand side of boom to extendable dipper cylinder closed end hose, Figure 8-64

1шт.

10

Tube at right hand side of boom to extendable dipper cylinder rod end hose, Figure 8-64

1шт.

11

Hose at bucket cylinder rod end tube, Figure 8-58, 8-62

1шт.

12

Hose to closed end of bucket cylinder, Figure 8-58, 8-62

1шт.

13

Tube to rod end of bucket cylinder, Figure 8-58, 8-62

1шт.

14

Hose at extendable dipper cylinder rod end tube, Figure 8-64

1шт.

15

Hose at extendable dipper cylinder closed end, Figure 8-64

1шт.

16

Tube at extendable dipper cylinder rod end, Figure 8-64

1шт.
