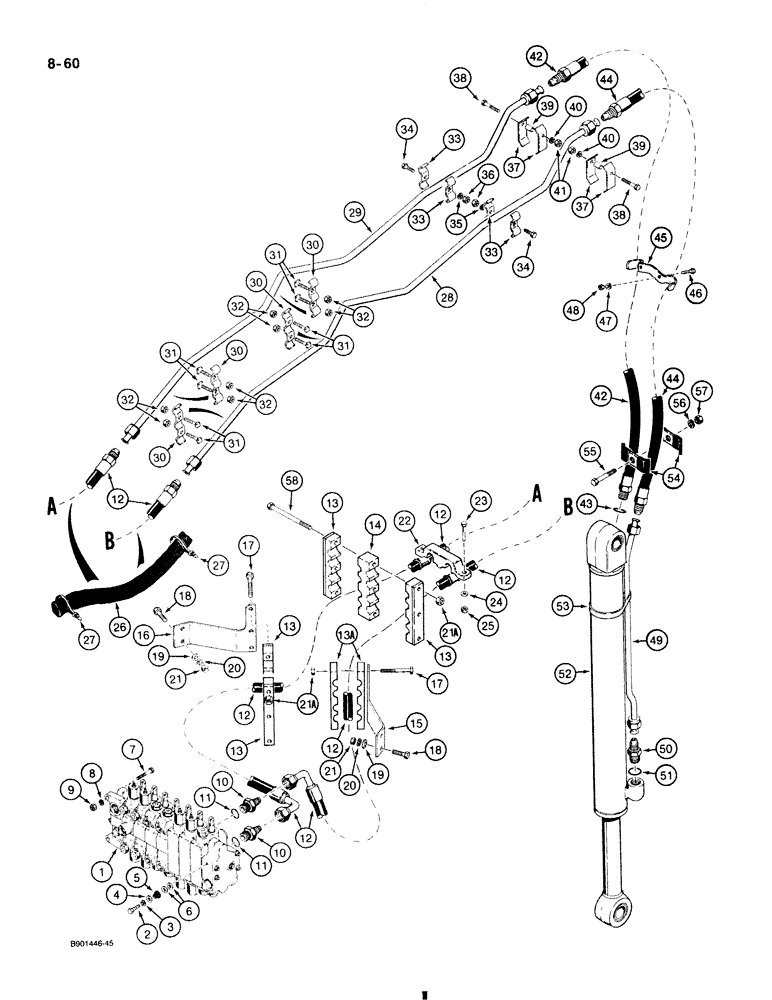

Запчасти Case 580K (8-060) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components see Figure 8-102, for mounting bracket see Figure 8-30

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section, Includes Ref. 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

12

D143311

HOSE,15.88mm ID x 1525mm L

1525 mm long, Includes one metal hose sleeve, at backhoe valve bucket section

1шт.

13

D145309

CLAMP

hose, rubber, models with rubber hose clamps at swing tower

4шт.

Rubber hose clamps were first used on JJG0026875 in April 1990, TSGbb.

1шт.

13a

D144881

CLAMP

hose, rubber, models with rubber hose clamps at swing tower

2шт.

14

D145139

CLAMP

center, rubber, models with rubber hose clamps at swing tower

1шт.

Rubber hose clamps were first used on JJG0026875 in April 1990, TSGbb.

1шт.

15

D145208

BRACKET

right hand side, support, rear hose clamps

1шт.

16

D145209

BRACKET

left hand side, support, rear hose clamps

1шт.

17

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8" NC x 2-3/4"

6шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

19

495-11053

WASHER,1/2", SAE

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

21a

131-217

LOCK NUT

NUT hex, self locking, 3/8" NC

9шт.

22

D127250

CLAMP

hose, mounts to swing tower

1шт.

23

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2" NC x 3"

2шт.

24

495-11053

WASHER,1/2", SAE

2шт.

25

131-70

NUT,1/2"-13, GB

NUThex, self locking, plated, 1/2" - 13 NC

2шт.

26

D132054

SLEEVE

hose guard

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

4шт.

28

D138057

TUBE

right hand side of boom, to bucket cylinder rod end hose

1шт.

29

D138059

TUBE

left hand side of boom, to bucket cylinder closed end hose

1шт.

30

D143421

CLAMP

, Serial Range: tube-boom

4шт.

31

117-205

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8" - 16 NC x 1", grade 2

8шт.

32

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

8шт.

33

D127681

CLAMP

, Serial Range: tube-boom

4шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/4"

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

425-106

NUT,3/8"-16, Cl 5

2шт.

37

D143426

CLAMP

bucket tube to boom, plated

4шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

39

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp, plated

2шт.

40

492-11038

LOCK WASHER,3/8"

2шт.

41

425-106

NUT,3/8"-16, Cl 5

2шт.

42

D143895

HOSE,15.88mm ID x 2027mm L

to closed end of bucket cylinder, 2027 mm long, Includes Ref. 43

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

44

D143894

HOSE,15.88mm ID x 2057mm L

to bucket cylinder rod end tube, 2057 mm long

1шт.

45

D140221

CLAMP

, Serial Range: hose-dipper

1шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex head, plated, 3/8" - 16 NC x 1-1/4"

2шт.

47

492-11038

LOCK WASHER,3/8"

2шт.

48

425-106

NUT,3/8"-16, Cl 5

2шт.

49

D141248

TUBE

to rod end of bucket cylinder

1шт.

50

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, at rod end of bucket cylinder, Incl. Ref. 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

52

REF

INSTRUCTION

CYLINDER ASSEMBLY, bucket, for correct assembly and components, see Figure 8-156

1шт.

53

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP tube to cylinder

1шт.

54

D40236

CLAMP

hose

2шт.

55

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

56

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

57

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

58

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8" NC x 4-1/2 inch

3шт.
