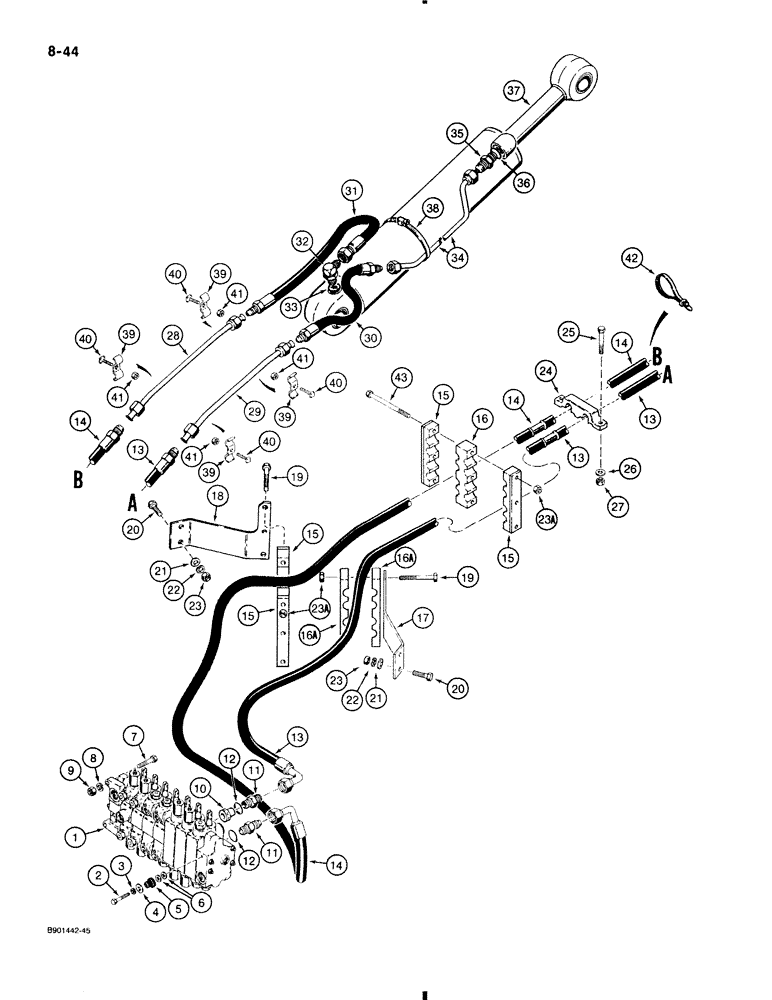

Запчасти Case 580K (8-044) - BACKHOE DIPPER CYL. HYD. CIRCUIT, MODELS W/ RUBBER HOSE CLAMPS AT SWING TOWER (ITEMS 15-16A) (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components see Figure 8-100 or 8-102, for mounting bracket see Figure 8-30

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

D140183

RESTRICTOR

dipper section upper port

1шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, dipper section upper and lower ports, Includes Ref. 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

13

D143315

HOSE,15.88mm ID x 1400mm L

1400 mm long, Includes one hose sleeve, dipper section upper port

1шт.

14

D143316

HOSE,15.88mm ID x 1450mm L

1450 mm long, includes one hose sleeve, dipper section lower port

1шт.

15

D145309

CLAMP

hose, rubber

4шт.

First used on JJG0026875 in April 1990.

1шт.

16

D145139

CLAMP

center, rubber, hose

1шт.

16a

D144881

CLAMP

hose, rubber

2шт.

First used on JJG0026875 in April 1990.

1шт.

17

D145208

BRACKET

right hand side, support, rear hose clamps

1шт.

18

D145209

BRACKET

left hand side, support, rear hose clamps

1шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8" NC x 2-3/4"

6шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

23a

131-217

LOCK NUT

NUT hex, self locking, 3/8" NC

9шт.

24

D127250

CLAMP

hose, mounts to swing tower

1шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2" NC x 3"

2шт.

26

495-11053

WASHER,1/2", SAE

2шт.

27

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" - 13 NC

2шт.

28

D139901

TUBE

left hand side of boom, from dipper section lower port hose

1шт.

29

D139903

TUBE

right hand side of boom, from dipper section upper port hose

1шт.

30

D127687

HOSE,15.88mm ID x 400mm L

at dipper cylinder rod end tube, 400 mm long

1шт.

31

D140157

HOSE,15.88mm ID x 750mm L

dipper cylinder closed end, 750 mm long

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, dipper cylinder closed end, Incl. Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

34

D139898

PIPE

TUBE dipper cylinder rod end

1шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, dipper cylinder rod end, Incl. Ref. 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

37

REF

INSTRUCTION

CYLINDER ASSEMBLY, dipper, for correct assembly and components, see Figure 8-154

1шт.

38

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP tube to cylinder

1шт.

39

D127681

CLAMP

, Serial Range: tube-boom

4шт.

40

17-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8" - 16 NC x 1", grade 2

4шт.

41

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

4шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

1шт.

43

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8" NC x 4-1/2"

3шт.
