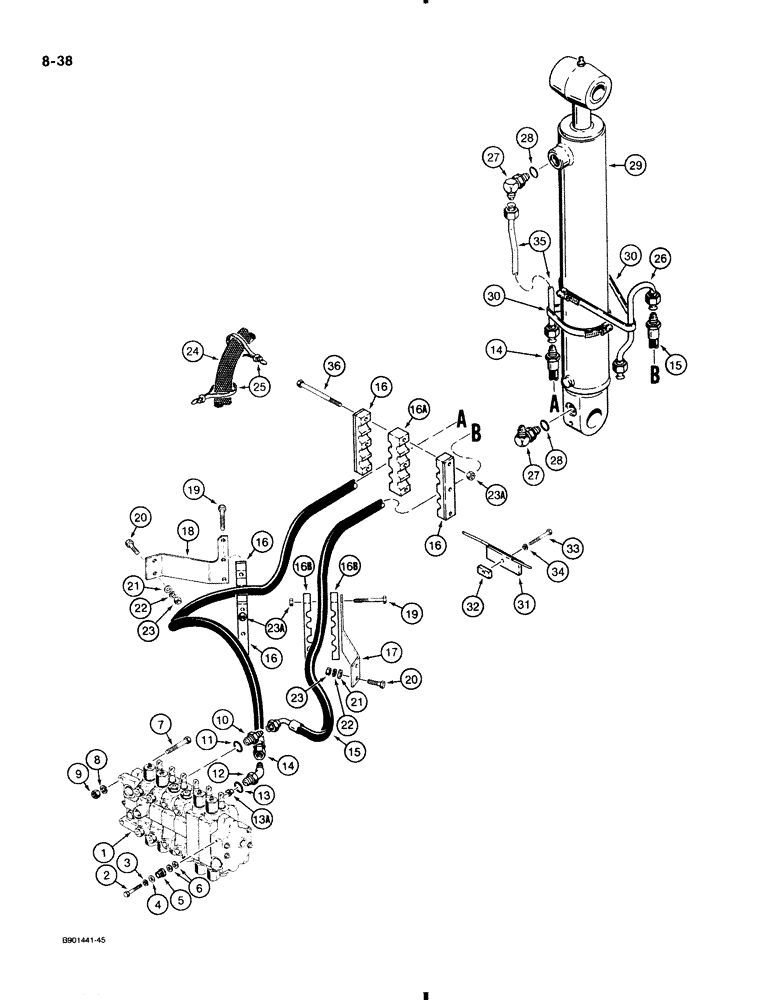

Запчасти Case 580K (8-038) - BACKHOE BOOMCYL. HYD. CIRCUIT, MODELS W/ RUBBER HOSE CLAMPS AT SWING TOWER (ITEMS 16-16B) (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components see Figure 8-100 or 8-102, for mounting bracket see Figure 8-30

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, boom section upper port, Includes Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

12

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, boom section lower port, not used on models with boom lock, see Figure 8-76, Incl. Ref 13 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

13a

D77182

FITTING

RESTRICTOR boom section lower port

1шт.

14

D143313

HOSE,15.88mm ID x 1275mm L

1275 mm long, without hose sleeves, boom cylinder rod end to boom section lower port, not used on models with boom lock, see Figure 8-76

1шт.

15

D143312

HOSE,15.88mm ID x 1475mm L

1475 mm long, without hose sleeves, boom cylinder closed end to boom section upper port

1шт.

16

D145309

CLAMP

hose, rubber

4шт.

Rubber hose clamps were first used on JJG0026875 in April 1990, TSGbb.

1шт.

16a

D145139

CLAMP

center, hose, rubber

1шт.

16b

D144881

CLAMP

hose, rubber

2шт.

Rubber hose clamps were first used on JJG0026875 in April 1990, TSGbb.

1шт.

17

D145208

BRACKET

right hand side, support, rear hose clamps

1шт.

18

D145209

BRACKET

left hand side, support, rear hose clamps

1шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8" NC x 2-3/4"

6шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

23a

131-217

LOCK NUT

NUT hex, self locking, 3/8" NC

9шт.

24

D134728

TUBE

SLEEVE hose guard

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

4шт.

26

D139401

TUBE

boom cylinder closed end

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, at boom cylinder closed end, Incl. Ref. 28

2шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY, boom, for correct assembly and components, see Figures 8-148 through 8-152

1шт.

30

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP tube to cylinder

2шт.

31

D140105

BRACKET

hose guide

1шт.

32

D135667

PLATE

bracket retainer

1шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

D141614

TUBE

at boom cylinder rod end

1шт.

36

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8" NC x 4-1/2"

3шт.
