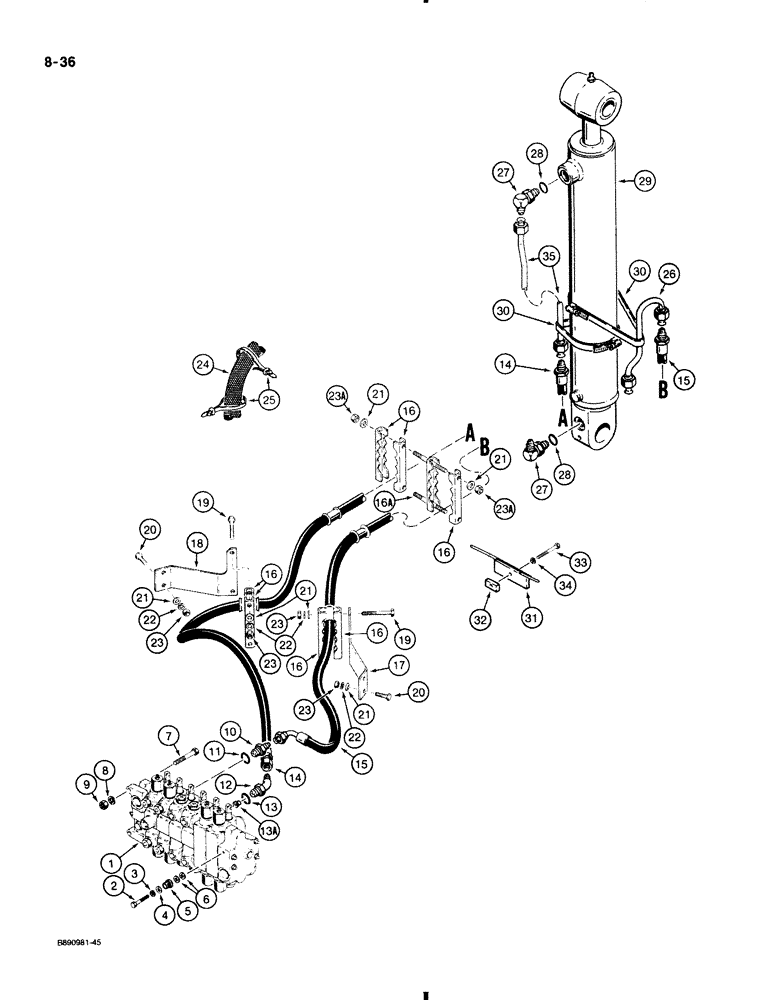

Запчасти Case 580K (8-036) - BACKHOE BOOMCYL. HYD. CIRCUIT, MODELS W/ METAL HOSE CLAMPS AT SWING TOWER (ITEMS 16 & 16A) (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components see Figure 8-100 or 8-102, for mounting bracket see Figure 8-30

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, boom section upper port, Includes Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

12

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, boom section lower port, not used on models with boom lock, see Figure 8-76, Incl. Ref 13 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

13a

D77182

FITTING

RESTRICTOR boom section lower port

1шт.

14

D140121

HOSE,15.88mm ID x 1275mm L

1275 mm long, boom cylinder rod end to boom section lower port, Includes hose sleeves, not used on models with boom lock, see Figure 8-76

1шт.

15

D140119

HOSE,15.88mm ID x 1475mm L

1475 mm long, boom cylinder closed end to boom section upper port, Includes hose sleeves

1шт.

16

D92721

CLAMP

hose, metal

7шт.

16a

D140552

CLAMP

with studs, metal

1шт.

17

D140030

BRACKET

right hand side, support, rear hose clamps

1шт.

18

D140031

BRACKET

left hand side, support, rear hose clamps

1шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

21

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

12шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

23a

131-70

NUT,1/2"-13, GB

NUT hex, self locking, 1/2" - 13 NC

4шт.

24

D134728

TUBE

SLEEVE hose guard

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15"

4шт.

26

D139401

TUBE

boom cylinder closed end

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, at boom cylinder closed end, Incl. Ref. 28

2шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY, boom, for correct assembly and components, see Figures 8-148 through 8-152

1шт.

30

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP tube to cylinder

2шт.

31

D140105

BRACKET

hose guide

1шт.

32

D135667

PLATE

bracket retainer

1шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

D141614

TUBE

at boom cylinder rod end

1шт.
