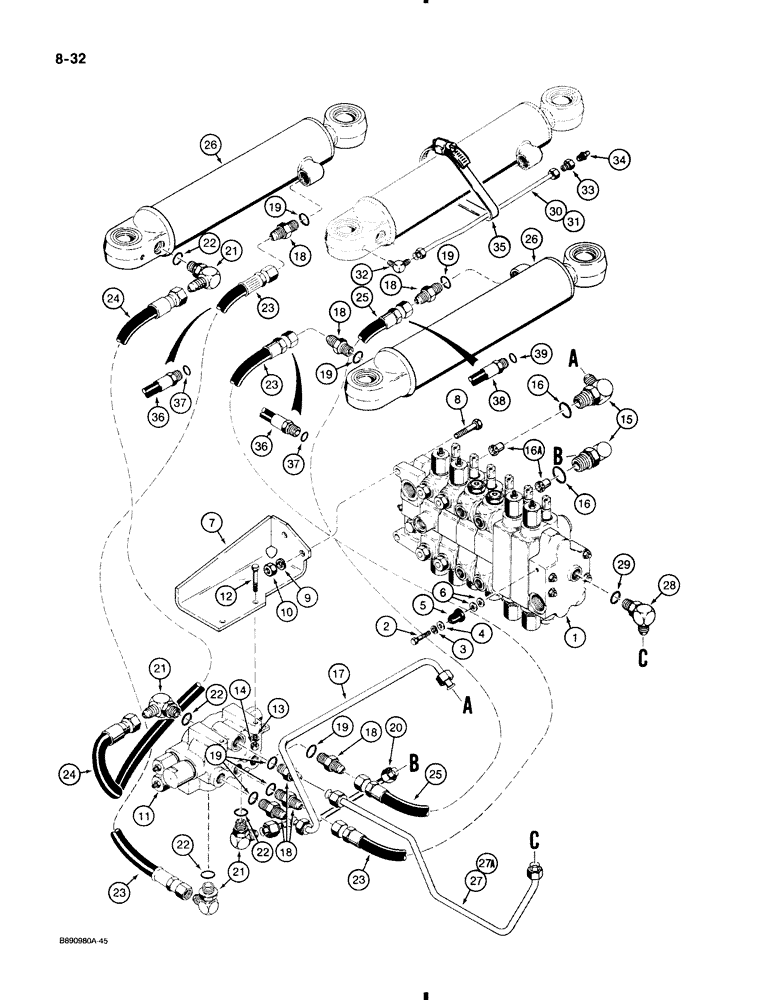

Запчасти Case 580K (8-032) - BACKHOE SWING CYLINDER AND, SWING SEQUENCE VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-100 or 8-102

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

D135614

SUPPORT

BRACKET backhoe control valve and swing sequence valve mounting

1шт.

8

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

1346067C1

VALVE

ASSEMBLY, swing sequence, parts list Figures 8-122, Replaces: 1980440C1

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 degree, adjustable, swing section upper and lower ports, Includes Ref. 16

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

16a

D142394

RESTRICTOR

swing check, 9/64", 3.5 mm orifice

2шт.

17

D135616

TUBE

swing section upper port to sequence valve

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes Ref. 19

4-7шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

20

D135618

TUBE

swing section lower port to swing sequence valve lower port

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 22

4шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

23

L50840

HOSE

24", 610 mm long, used with Ref. 18 connector at swing cylinders, if used

2шт.

24

D146726

HOSE

swing sequence valve to left hand swing cylinder closed end, 550 mm long

1шт.

25

D135908

HOSE,12.7mm ID x 725mm L

swing sequence valve to right-hand swing cylinder rod end, 725 mm long, used with Ref. 18 connector at swing cylinder, if used

1шт.

26

1971702C2

CYLINDER ASSY.

CYLINDER ASSEMBLY, swing, right hand and left hand, parts list Figure 8-146

2шт.

27

D145226

PIPE

TUBE swing sequence valve drain, used on models with six spool backhoe valve, with or without demountable backhoe

1шт.

27a

D145228

PIPE

TUBE swing sequence valve drain, used on models with seven spool backhoe valve, with or without demountable backhoe, also used on models with optional rear hydraulic attachments

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

30

D134966

TUBE

grease, right hand swing cylinder

1шт.

31

D134964

TUBE

grease, left hand swing cylinder

1шт.

32

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree, grease tube to cylinder

2шт.

33

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER straight, grease tube coupler

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" PT

2шт.

35

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP grease tube to cylinder

2шт.

36

D143685

HOSE

633 mm long, used without Ref. 18 connector at swing cylinders, if used, Includes Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

D31368

HOSE

swing sequence valve to right hand swing cylinder rod end, 29-3/4" long, used without Ref. 18 connector at swing cylinder, if used, Includes Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
