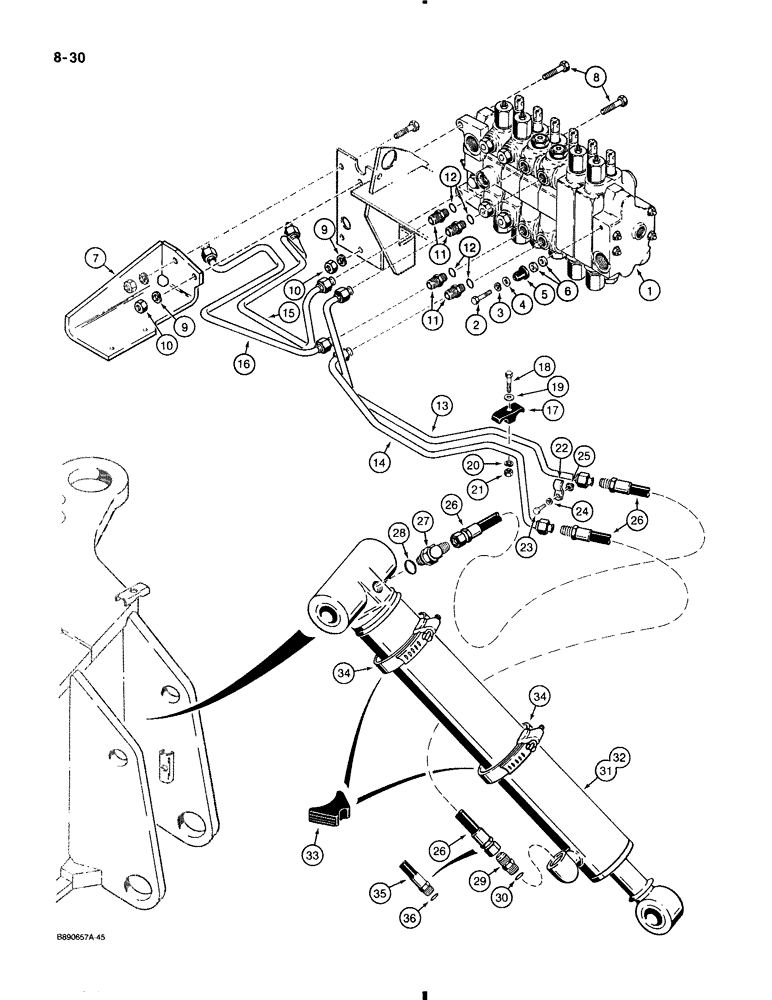

Запчасти Case 580K (8-030) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Figure 8-100 or 8-102

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, plated, 3/8"-16 NC x 1-1/2"

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

flat, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

D135614

SUPPORT

BRACKET backhoe control valve and swing sequence valve mounting

1шт.

8

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex head, plated, 1/2" - 13 NC x 2-1/4"

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, stabilizer sections upper and lower ports, Incl. Ref 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

13

D141746

TUBE ASSY.

TUBE right hand stabilizer section upper, Serial Range: port-hose

1шт.

14

D141130

TUBE ASSY.

TUBE right hand stabilizer section lower, Serial Range: port-hose

1шт.

15

D141748

TUBE ASSY.

TUBE left hand stabilizer section upper, Serial Range: port-hose

1шт.

16

D141160

TUBE ASSY.

TUBE left hand stabilizer section lower, Serial Range: port-hose

1шт.

17

D120679

CLAMP,Tube, 1/2"

plastic, 1/2" tube

2шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex, plated, 3/8"-16 NC x 1-3/4"

2шт.

19

495-21044

WASHER,3/8"

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

D140709

CLAMP

tube

4шт.

23

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8" - 16 NC

4шт.

26

D141166

HOSE,9.53mm ID x 863mm L, SAE 100R2

to stabilizer cylinders, 34", 863 mm long

2-4шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, stabilizer cylinder closed ends, Includes Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONRefeRefef. 30

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

31

G110672

CYLINDER ASSY.

CYLINDER ASSEMBLY, right hand stabilizer, parts list Figure 8-144

1шт.

32

G110673

CYLINDER ASSY.

CYLINDER ASSEMBLY, left hand stabilizer, parts list Figure 8-144

1шт.

33

D142787

SPACER

INSULATOR rubber

4шт.

34

214-182

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP hose

4шт.

35

D148586

HOSE ASSY.

HOSE to stabilizer cylinder rod ends, 900 mm long, may replace hose and connector, Ref. 26 and 29 used on some models, Includes Ref. 36

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
