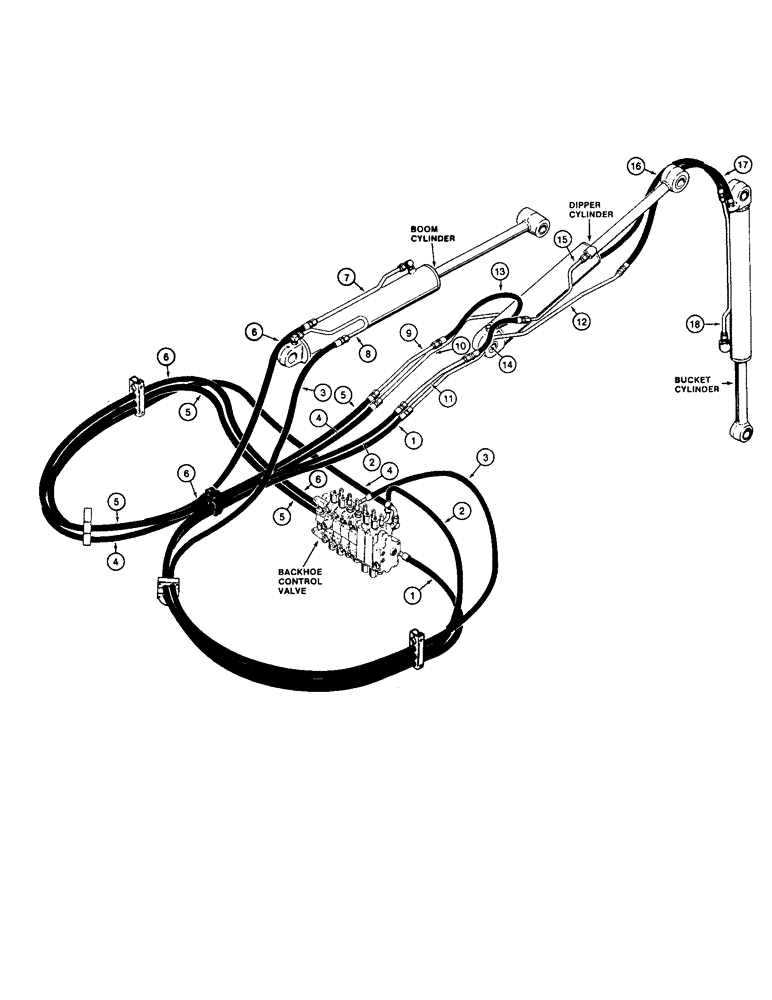

Запчасти Case 580K (1-018) - PICTORIAL INDEX, DEMOUNTABLE AND INTEGRAL BACKHOE HYDRAULICS, BOOM, DIPPER AND BUCKET (00) - PICTORIAL INDEX

1

Hose at lower port of backhoe control valve bucket section, Figure 8-48, 8-52

1шт.

2

Hose at upper port of backhoe control valve dipper section, Figure 8-40, 8-44

1шт.

3

Hose at upper port of backhoe control valve boom section, Figure 8-36, 8-38

1шт.

4

Hose at upper port of backhoe control valve bucket section, Figure 8-48, 8-52

1шт.

5

Hose to lower port of backhoe control valve dipper section, Figure 8-40, 8-44

1шт.

6

Hose at lower port of backhoe control valve boom section, Figure 8-36, 8-38

1шт.

7

Tube at boom cylinder rod end, Figure 8-36, 8-38

1шт.

8

Tube at boom cylinder closed end, Figure 8-36, 8-38

1шт.

9

Tube on left hand side of boom from dipper section lower port hose, Figure 8-40, 8-44

1шт.

10

Tube on left hand side of boom to bucket cylinder rod end hose, Figure 8-48, 8-52

1шт.

11

Tube on right hand side of boom from dipper section upper port hose, Figure 8-40, 8-44

1шт.

12

Tube on right hand side of boom to bucket cylinder closed end hose, Figure 8-48, 8-52

1шт.

13

Hose at dipper cylinder closed end, Figure 8-42, 8-46

1шт.

14

Hose at dipper cylinder rod end tube, Figure 8-42, 8-46

1шт.

15

Tube at dipper cylinder rod end, Figure 8-42, 8-46

1шт.

16

Hose at bucket cylinder rod end tube, Figure 8-50, 8-54

1шт.

17

Hose at closed end of bucket cylinder, Figure 8-50, 8-54

1шт.

18

Tube at rod end of bucket cylinder, Figure 8-50, 8-54

1шт.
