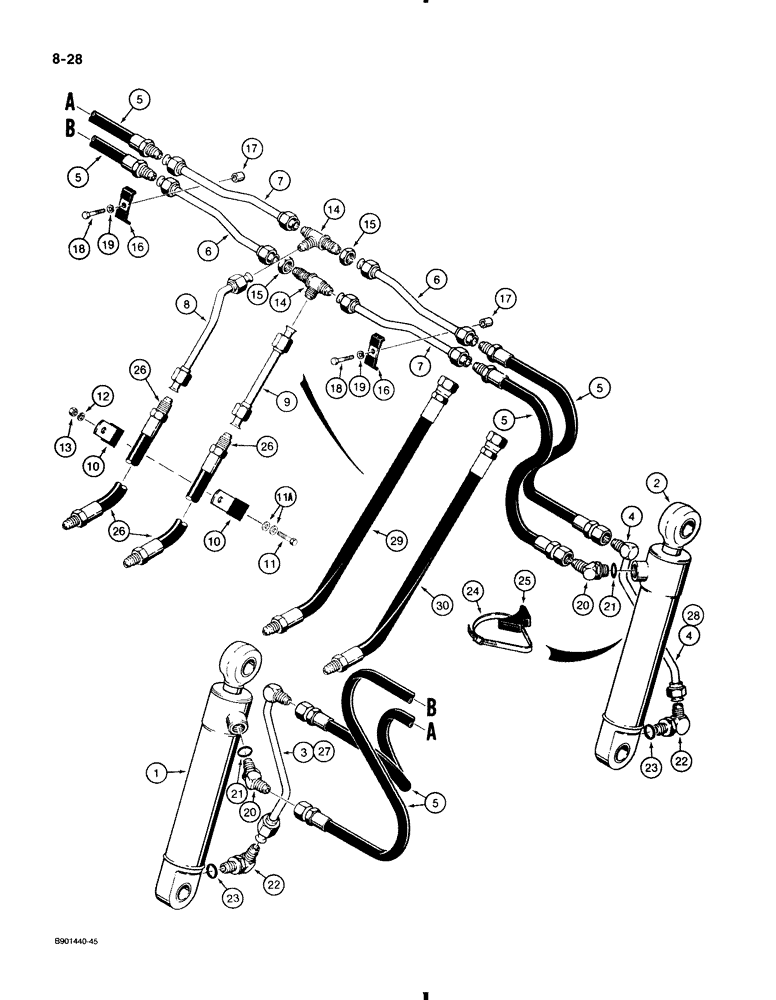

Запчасти Case 580K (8-028) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, clam, left hand, for correct assembly and components, see Figure 8-140 or 8-142

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY, clam, right hand, for correct assembly and components, see Figure 8-140 or 8-142

1шт.

3

D51619

TUBE

G101191 left hand cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

4

D51621

TUBE

G101190 right hand cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

5

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

right hand and left hand cylinders, 26", 660 mm long

4шт.

6

D134461

TUBE

horizontal, right hand upper and left hand lower

2шт.

7

D134459

TUBE

horizontal, right hand lower and left hand upper

2шт.

8

D138005

TUBE

vertical, left hand, used with Ref. 26 hose, if used

1шт.

9

D138007

TUBE

vertical, right hand, used with Ref. 26 hose, if used

1шт.

10

S88820

CLAMP

vertical hoses

2шт.

11

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

11a

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

bulkhead, connecting horizontal and vertical tubing

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

16

D40236

CLAMP

horizontal tubing

2шт.

17

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

tube clamps

2шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, clam cylinders, rod end, Incl. Ref 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, clam cylinders, closed end, Incl. Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP clam cylinder tubing, adjustable

2шт.

25

D38648

BLOCK

INSULATOR rubber, clamp

2шт.

26

D125995

HOSE,12.7mm ID x 750mm L

from loader lift frame, , 29-17/32", 750 mm long, used with Ref. 8 and 9 tubes, if used

2шт.

27

D148192

PIPE

TUBE 1346190C1 left hand cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

28

D148190

TUBE

1346189C1 right hand cylinder

1шт.

Check your cylinder assembly part number to assure ordering the correct tube.

1шт.

29

D148252

HOSE

1000 mm long, Replaces: hose and tube, Ref. 8 and 26, if used

1шт.

30

D148251

HOSE

895 mm long, Replaces: hose and tube, Ref. 9 and 26, if used

1шт.
